2.2 Loading wash ware 2 Operating

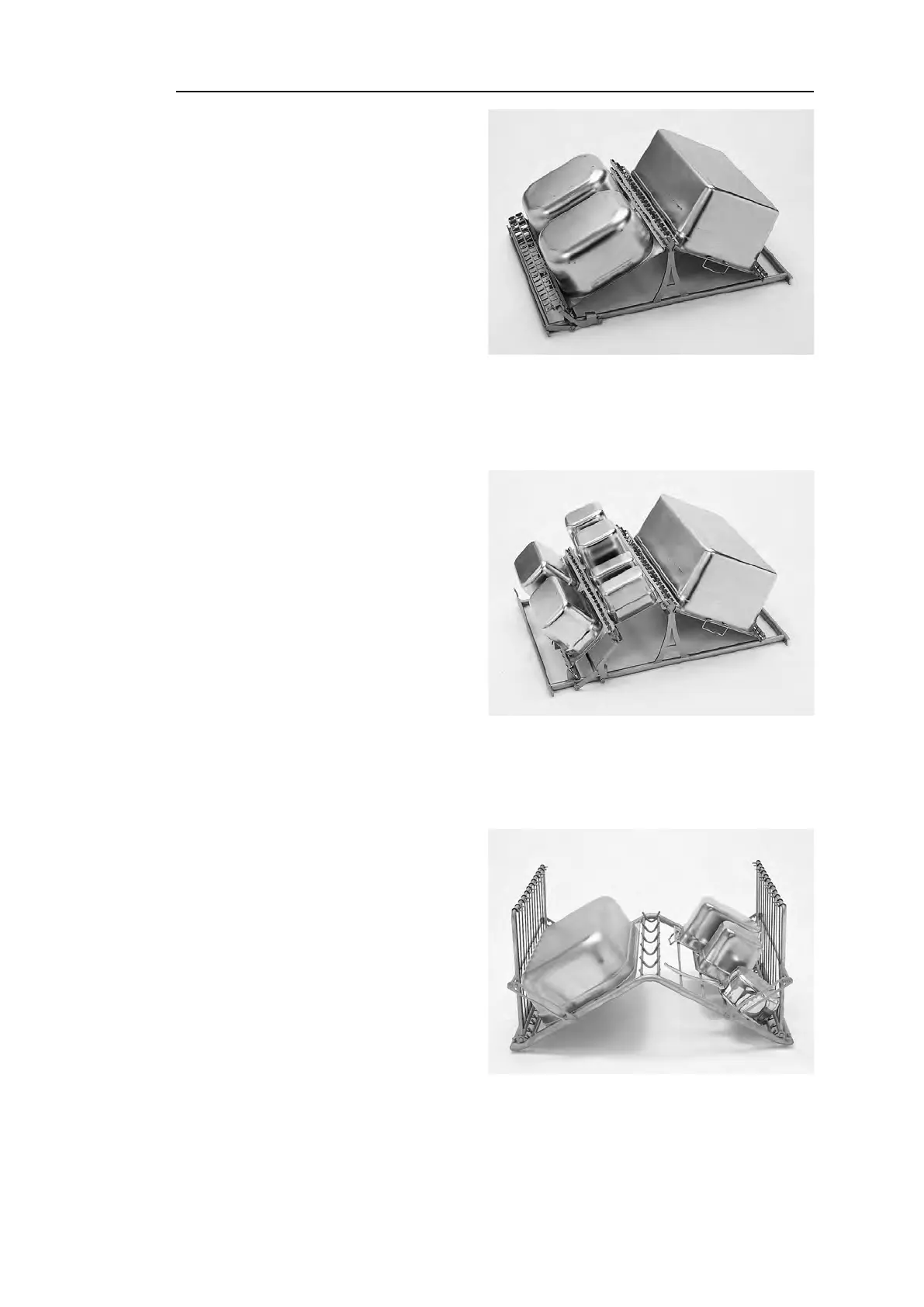

Fig. 7 Fixed insert for GN containers
GN 1/1 and GN 1/2 loaded.
Fig. 8 Fixed insert for GN containers
with small GN pans
Fig. 9 Flexible insert open
Fixed insert for GN containers
(13465)
To fit GN 1/1–1/9 up to 200 mm
depth. Capacity 2 GN 1/1 up to
200 mm depth or the
equivalent in small GN
containers.
See Fig. 7 Fixed insert for GN
containers GN 1/1 and GN 1/2
loaded.
See Fig. 8 Fixed insert for GN
containers with small GN pans
Flexible insert for GN contain-
ers and mixed wash ware
(14454)
To fit GN containers, bowls,
saucepans, sieves etc, incl 1
spare rubber band. Capacity 2
GN 1/1 up to 150 mm depth or a
mix of utensils. The rubber-
bands ensure that the items do
not move during washing. The
rubberbands can break
because of wear against sharp
edges and are quite simple to
replace.
See Fig. 9 Flexible insert open
Rev. 2021-12 21
