23

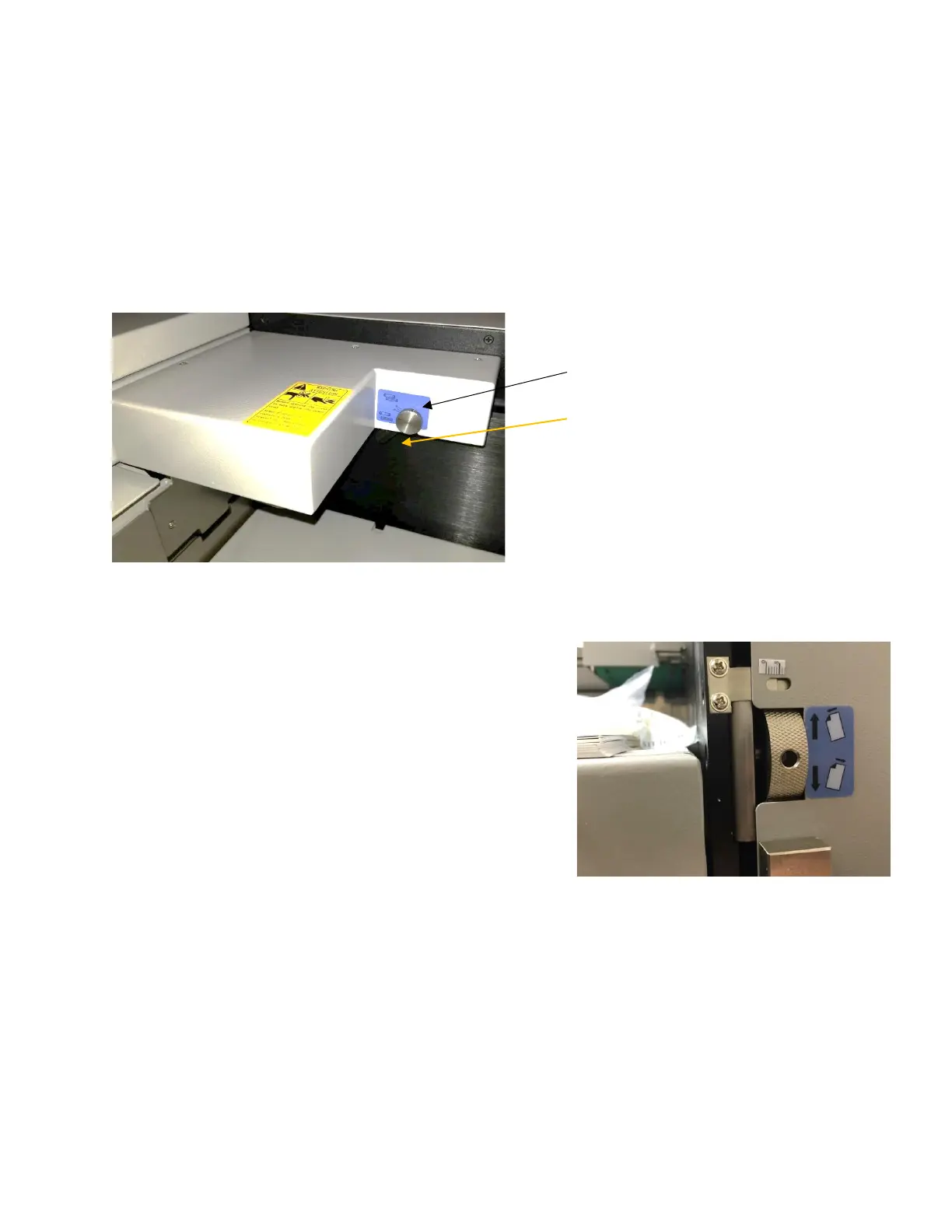

Pile Height Sensor
In Auto Feed Mode, turn the knob clockwise, the pile height will rise higher. Turning the knob
counterclockwise will keep the paper pile lower.
In Manual Feed Mode, the knob should be turned clockwise to its maximum, or there will be
error report E-2 (Elevator Motor Error)
Sensor Knob
Sensor Trigger
Skew Adjustment
If the crease / perforation is skewed, the angle of fixed side
guide needs to be adjusted to change the crease angle.
Turning the Skew adjustment wheel will skew your stock, to
account for any paper skew error. If the wheel is turned
downward, the fixed side plate will turn leftward, and vice
versa. Normally, if the paper is perfectly square, no
adjustment needs to be made.
IMPORTANT! When using skew adjustment, you must move paper back stop and magnetic side
guides away from the edge of the paper stack. This will allow sheets to move as the skew wheel
is turned. Return paper back stop and magnetic side guides to the edge of the paper stack. If
skew adjustment is not set at center, lead edge of paper pile should not be flush with front edge
of feeder.
