Sample network configuration and hosts file
Sample network configuration and hosts file

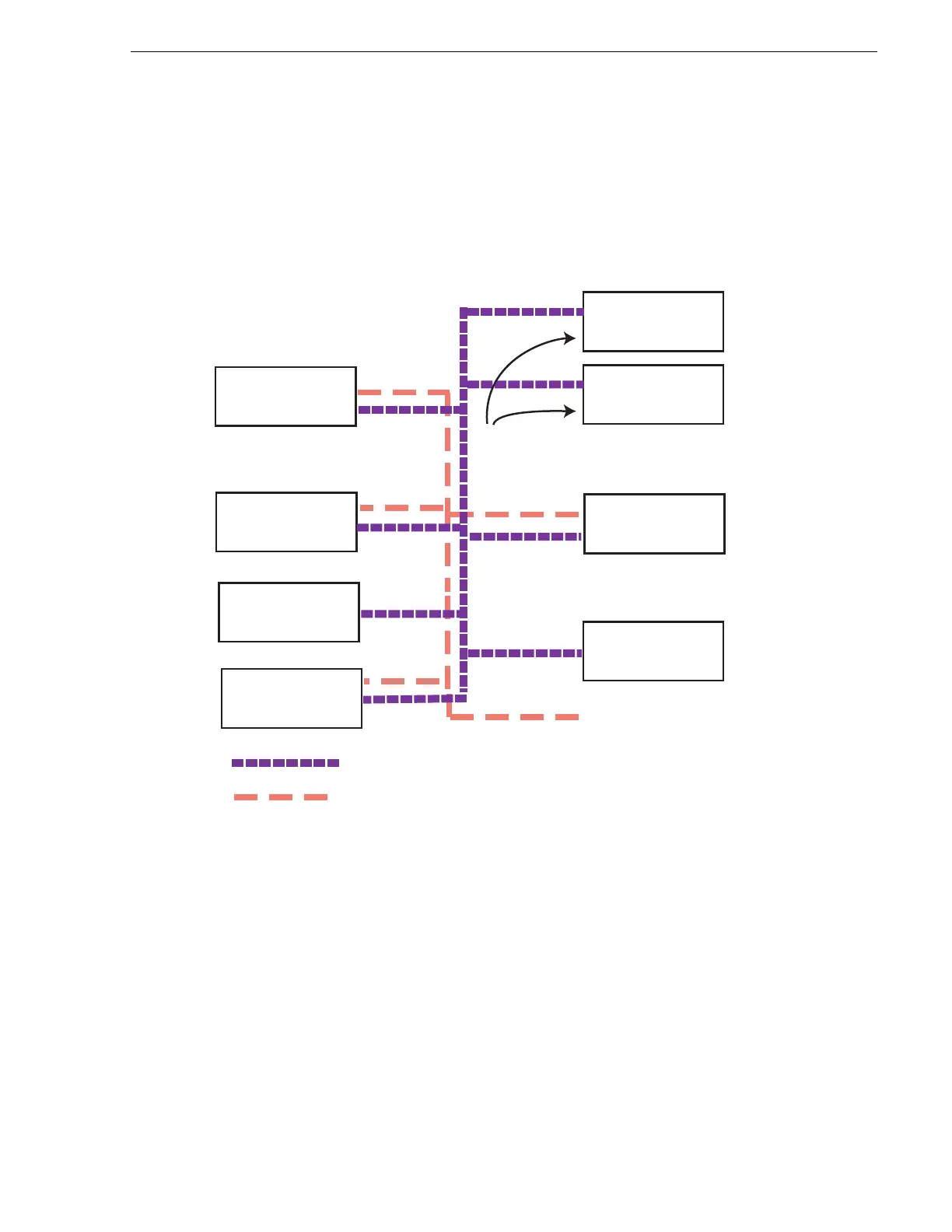

The following diagram illustrates one possible configuration setup, with both the
control network and the FTP/Streaming network shown. The media (iSCSI) network
is not shown. This diagram includes a K2 Media Client with internal storage, a K2
Media Client with external storage (as on a K2 Storage System), a K2 Media Server
(as an FTP server on K2 Storage System), as well as other Grass Valley systems.
The following example shows the contents of a default Windows hosts file with new
lines added that match the IP addresses and host names in the previous sample
diagram.
All lines beginning with a # are comments and can be ignored or deleted.
# Copyright (c) 1993-1995 Microsoft Corp.
# This is a sample HOSTS file used by Microsoft TCP/IP for Windows.
# This file contains the mappings of IP addresses to host names. Each
# entry should be kept on an individual line. The IP address should
# be placed in the first column followed by the corresponding host name.
# The IP address and the host name should be separated by at least one
# space.
# Additionally, comments (such as these) may be inserted on individual
K2-MediaClient
(internal storage)
Stand-alone
NewsEdit1
(not shared storage)
SAN_XP1
SAN_UIM1
K2-MediaClient-2
(shared storage)
K2-Media Server-1
Control Point PC
10.0.0.22
Other 3rd party devices
Command/Control network
Media/Streaming network
10.16.42.10
10.0.0.10
10.16.42.102
10.16.42.60
10.0.0.60
Note: GigE ports 2 and 4 used for media
(iSCSI) networks only
10.16.42.22
10.16.42.31
10.16.42.32
10.0.0.32
10.16.42.23
K2-MediaClient-1
(shared storage)
10.16.42.101
