144 K2 Storage System Instruction Manual July 3, 2007
Chapter 4 Installing the Level 3 Storage System
Power on the L3 RAID chassis
Your preparations for L3 RAID storage are now complete.
Preparing K2 Storage System clients
Any devices that function as iSCSI clients to the K2 Storage System must be prepared
with the following requirements:
• One or more connections to the control network.
• A static IP address for the control network.
• For a Level 2 or 3 (non-redundant) K2 Storage System, one connection to the
media (iSCSI) network.
Additional steps that are required for Aurora Edits include the following:
• Implement Aurora Edit security features.
• Install SNFS software and K2 software.
POWER
SERVICE
K2
RAID STORAGE
!
Power Cords
(115V/230V)
Power-up Verification
DIR and SVP LEDs on the RAID controllers are blinking green
Disk Link LED is steady ON green.
FLT and BAT LEDs are OFF.
The front Power LED is ON, Service LED is OFF after about 5 minutes.
Refer to the L3 RAID Instruction Manual if there is a problem.
Power LED
Disk Link
LED
Disk Link
LED

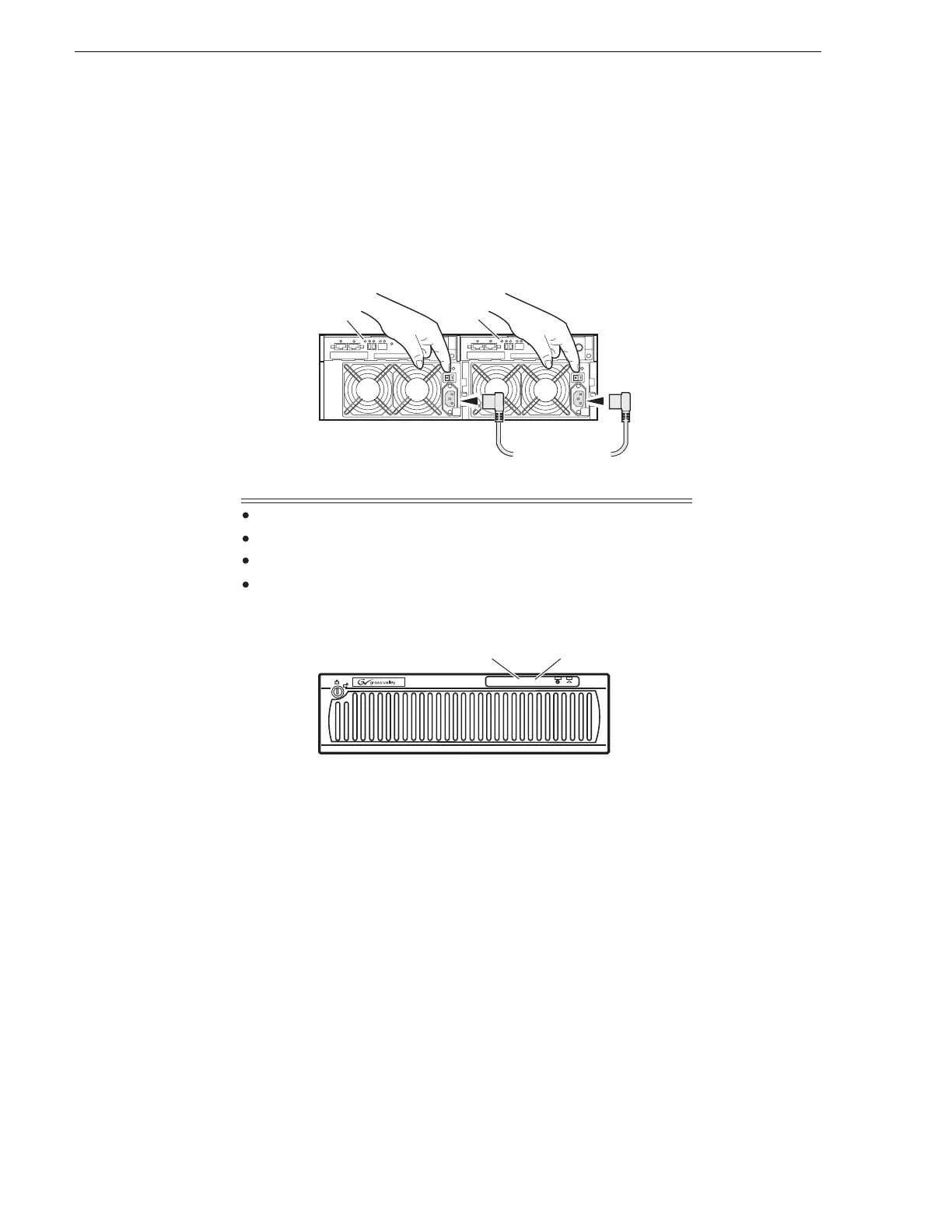

Connect power cords, and turn on power as shown.
You must power-up any RAID Expansion chassis
prior to, or at the same time as the RAID Controller
chassis. Verify power-up as shown.
Service LED
