12
ing or unloading on an enclosed trailer), DO
NOT use seatbelt and drive with extra care.
nn
nn
n
Do not move steering levers from forward to
reverse or reverse to forward position rap-
idly. The sudden change could cause loss of
control and/or damage to equipment.
nn
nn
n
Do not operate on steep slopes.
nn
nn
n Do not stop, start or change directions sud-
denly on slopes.
nn
nn
n
Use extreme care and maintain minimum
ground speed when traveling or operating on
a hillside, over rough ground, or when oper-
ating close to ditches and fences.
nn
nn
n Reduce speed on slopes and sharp turns to
minimize tipping and avoid loss of control. Be
careful when changing directions on slopes.
nn
nn
n Stay alert for holes, rocks, roots and other
hidden hazards in the terrain. Keep away
from drop-offs.
nn
nn
n Stop mower or other attachment and tractor
immediately upon striking an obstruction.
Turn engine off, inspect attachment and trac-
tor. Repair any damage before resuming
operation.
nn
nn
n Disengage power to attachment, stop engine,
remove key and wait for all movement to stop
before dismounting, making adjustments,
cleaning, or unclogging the machine.
nn
nn
n Never transport attachments with PTO run-
ning.
nn
nn
n Watch for traffic when operating near or
crossing roadways.
nn
nn
n This unit is not equipped for highway use, es-
pecially when safety lighting and marking is
required. It is not a recreational vehicle.
nn
nn
n This unit is not equipped with a drawbar. Do
not pull loads.
nn
nn
n Take all possible precautions when leaving
tractor unattended: disengage PTO, lower at-
tachment, place controls in neutral, set
parking brake, stop engine and remove key
from ignition.
nn
nn
n Move very slowly when attachment is re-
moved. Never carry passengers.
nn
nn
n Do not run engine in an enclosed area without
adequate ventilation. Exhaust gases contain
carbon monoxide, an odorless and deadly
poison.
tainer and slow the loss of any static charge.
nn
nn
n When practical, remove gas-powered equip-
ment from the truck or trailer and refuel the
equipment with its wheels on the ground.
nn
nn
n If this is not possible, then refuel such equipment
on a truck or trailer from a portable container,
rather than from a gasoline dispenser nozzle.
nn
nn
n If a gasoline dispenser nozzle must be used,
keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until fueling
is complete.
nn
nn
n
Never use cellular phones or other portable
electronic devices when handling fuel.
OPERATIONAL SAFETY
nn
nn
n
Read “Operation” section of this manual be-
fore attempting to operate this unit.
nn
nn
n Do not operate without ROPS deployed.
nn
nn
n Fenders serve as shields. Do not operate
without them.
nn
nn
n Keep bystanders away from equipment while
it is in operation.
nn
nn
n Keep children and pets a safe distance away.
Never direct discharge toward anyone.
nn
nn
n Start engine from operator’s seat after disen-
gaging tractor power takeoff and placing
steering levers into the neutral swing-out po-
sition.
nn
nn
n Keep hands and feet away from underneath
mower while engine is running. Stay clear of
all moving parts on tractor and attachments.
nn
nn
n Protect against noise. Wear suitable hearing
protection devices to protect against objec-
tionable noise.
nn
nn
n Never allow anyone behind tractor or in front
of implements when operating.
nn
nn
n Do not operate in reverse unless absolutely
necessary and then only after careful obser-
vation of the entire area behind you.
nn
nn
n If operator must dismount to make adjust-
ments the engine must not be running.
nn
nn
n If machine is equipped with a fixed ROPS, al-
ways wear seatbelt.
nn
nn
n If machine is equipped with a foldable ROPS,
always wear seatbelt when ROPS is de-
ployed.
nn
nn
n When foldable ROPS must be down (i.e. load-
45

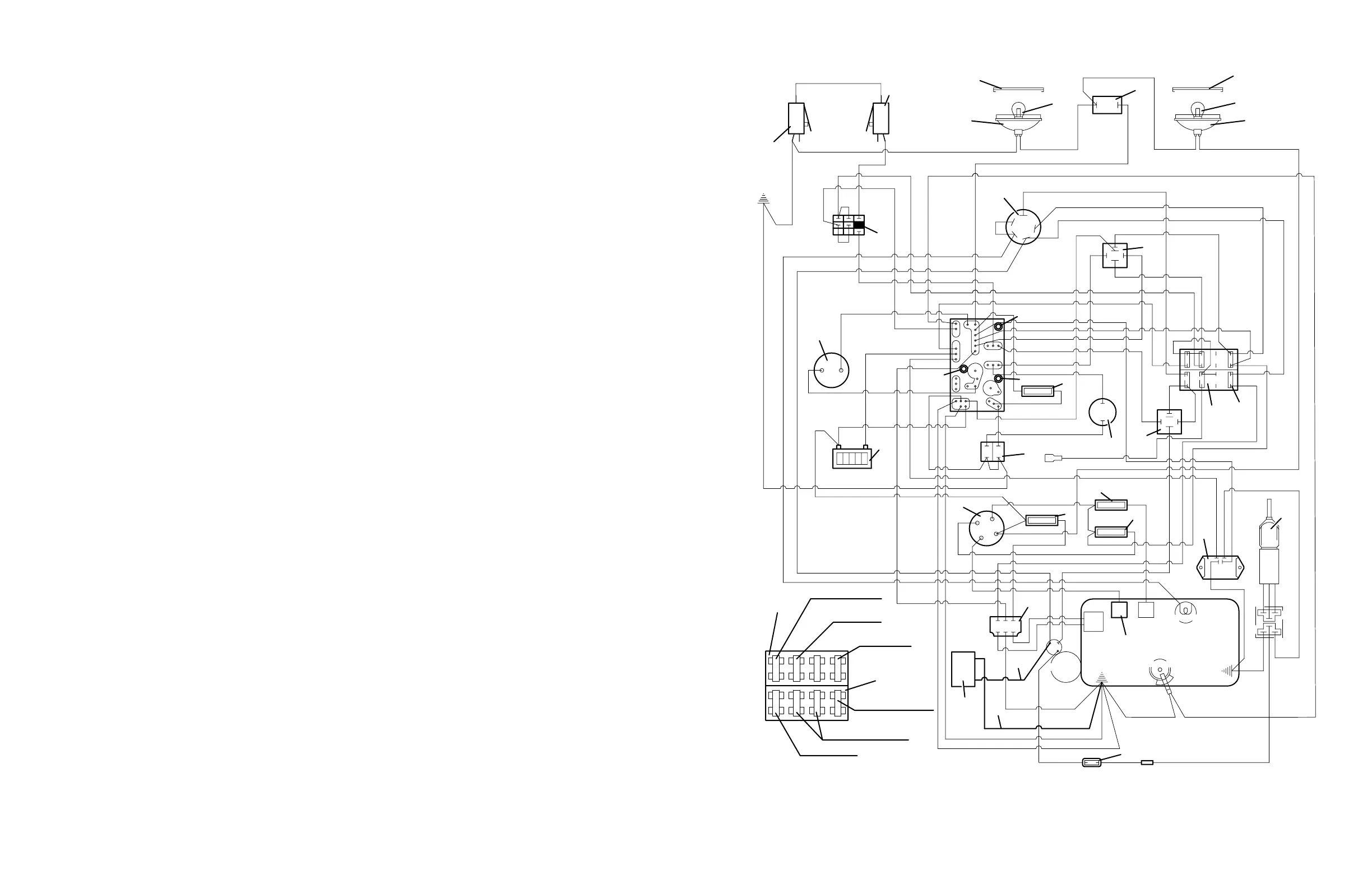

WIRING DIAGRAM
Rev. 09-06
06055
21
18
8
21
16
12
13
17
24
23
7
22
15
3
21
11
20
14
20
19
12
14
6
28
27
13
5
25
26
10
4
2
1
9
29
29
29
PURPLE
START FUSE
30 AMP.
S
TEMP.
BLACK
I
10 AMP.
7.5 AMP.
REGULATOR FUSE
30 AMP.
15 AMP.
SOLENOID FUSE
PTO FUSE
MAIN FUSE
ACCESSORY FUSES
A
30
GREEN
GREEN
WHITE
WHITE
WHITE
BLACK
GREEN
WHITE
BLACK
RED
BLACK W/WHITE
RED
BLUE
BATTERY
G
BLUE
BLUE
YELLOW
GREEN
GREEN
0
BRAKE
BLACK
RED
BLACK
GREEN
YELLOW
GREEN
YELLOW W/BROWN
BLACK
WHITE
WHITE
YELLOW
BROWN
GLOW PLUG
G
NO
OIL
GREEN
HOLD
0
COMM
YELLOW
0
3
BLACK
FUEL
0
1
0
2
4
SEAT
BLACK
PULL
GREEN
OIL
BROWN
SOLENOID
BROWN
A
BLACK
BLUE
AC
BLUE
GREEN
30
GREEN
17
19
GREEN
ALT.
TEMP
-
GREEN
LT
STRG
RT
STRG
ENGINE
GREEN
STARTER
+
50
NC
I
BLACK
B
GREEN
GREEN
YELLOW
BLUE
RED W/WHITE
RED
RED
BROWN
RED W/WHITE
YELLOW W/BROWN
RED
BLACK
BLACK
BLACK
GREEN W/YELLOW
CLUTCH
BROWN
BROWN
BROWN
BROWN
BROWN
GREEN
BLACK
