Grasshopper 721D2 User Manual

23
BATTERY MAINTENANCE
Follow the procedure below for battery mainte-
nance.
nn
nn
n Clean battery.
nn
nn
n Inspect cables for loose connection.
nn
nn
n
Clean terminals.
nn
nn
n Inspect battery tray and hold-down.
nn
nn
n Inspect battery case for cracks or leaks.
Batteries contain sulfuric acid. Avoid
contact with skin, eyes and clothing.
Batteries produce a highly explosive
hydrogen gas while being charged.
Always keep cigarettes, sparks, open
flame and other sources of ignition
away from battery. Always shield
eyes and face from battery. In the
event of accident, flush with water and
call a physician immediately. Keep
batteries and acid out of the reach of
children.
CHECKING DRIVE SYSTEM FLUID
LEVEL

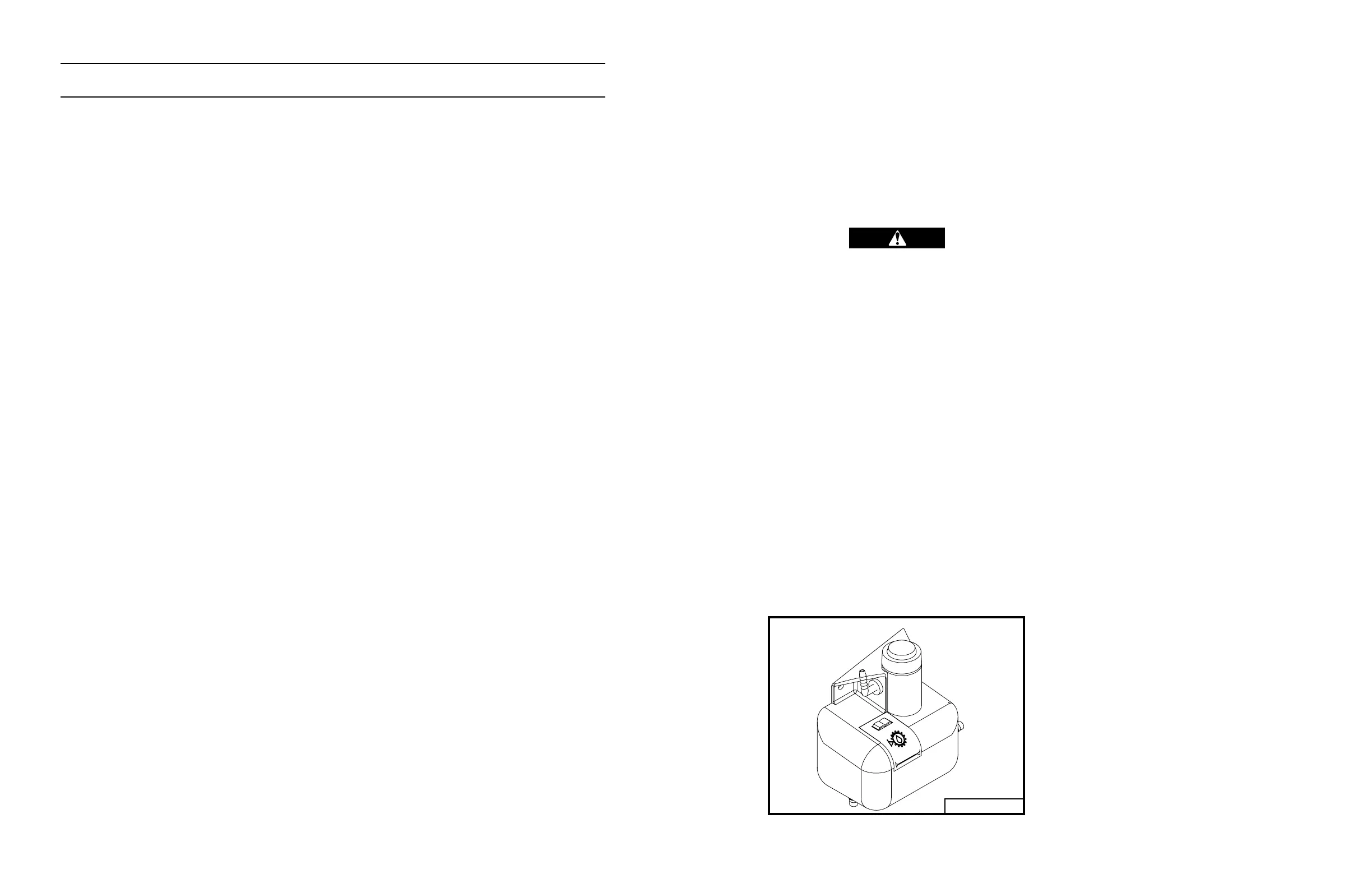

Check fluid level in the reservoir, located under
the seat, with the engine turned off. This is the
fluid reservoir for both hydro pumps and wheel
motors. If fluid is required, add until level is equal
to the full mark on the reservoir decal (shown be-
low). Use Grasshopper Fluid (Grasshopper part
no. 345050 for 1 quart [.94 l] container).
CHANGING DRIVE SYSTEM FLUID
AND FILTERS
Change fluid filter, mounted on the panel under
the seat, every 1000 hours of use. Change fluid
every 1000 hours of use. To change fluid, loosen
PTO shield (item 14, page 41) and remove Trash
Screen (item 57, page 31). Remove Spring
Clamp (item 16, page 39) and hose (item 14, 15)
from the bottom of each hydro. Use .25" allen
wrench to also remove screw (located behind
item 12 fitting, page 39) from each hydro casing.
Allow oil to drain completely. Refill the reservoir
with approximately 2 quarts (1.89 l) of fluid of the
type and viscosity as prescribed in the previous
section. Run engine and check for leaks. Stop
engine and check the fluid level in the reservoir
and add fluid as needed.
Note: No air bleeding is necessary since the
system is self bleeding.
Fig. 5
1
6
5
4
0
1
34
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
DRIVE ASSEMBLY
02-05086A
Rev. 03-07
1 603611 Wheel Motor
(includes items 2, 4 and 5)
2 604442 Hub & Rotor Assembly
3 248565 Lug
4 254522 Jam Nut w/Nylok
5 281860 Woodruff Key
6 391434 Hydro Pump Lt. w/Fan
7 391435 Hydro Pump Rt. w/Fan
8 130430 Fan Hub
9 130431 Hydro Fan
10 130432 Retainer Washer – Fan
11 253461 Nut - Nylon Insert
12 281560 Key Square
13 320522 Spindle Housing
14 903650 Spacer
15 110080 Bearing
16 882052 Drive Shaft
17 257412 Lock Washer
18 243331 Bolt
19 415037 Sheave
20 261061 Spiral Roll Pin
21 644629 Pump Mount
22 415027 Sheave
23 415028 Sheave
24 270822 Flange Bolt
25 381537 Belt
26 902328 Spacer
27 821530 Disc – Flex Coupling
28 644118 Coupling Connector
29 902318 Spacer - Coupling
30 253192 Whiz Bolt
31 253035 Whiz Nut
32 243335 Bolt
33 257030 Washer
34 254450 Nut
35 243330 Bolt
36 243340 Bolt
37 824491 Idler Arm Assembly – Lower
(includes items 39 & 40)
38 604450 Idler Arm Assembly – Upper
(includes items 39, 40, 60 & 61)
39 121756 Oilite Bearing – Flange
40 121650 Bearing Pedestal
41 257040 Washer
42 243360 Bolt
43 604449 Idler Pulley
44 253043 Whiz Nut
45 422520 Nylon Bearing
46 283819 Extension Spring w/Swivel
47 730391 Idler Adjustment Bolt
48 725028 Spring Bracket
49 257106 Washer
50 282630 Spacer
51 883801 Washer
52 723128 Fan Shield
53 243622 Sq. Head Bolt
54 257432 Lock Washer
55 254470 Nut
56 774012 Washer
57 902299 Spacer – Wheel Motor
58 776274 Mount – Brake & Traction Kit
59 822684 Clear Tubing
60 243038 Bolt
61 253025 Whiz Nut
