9

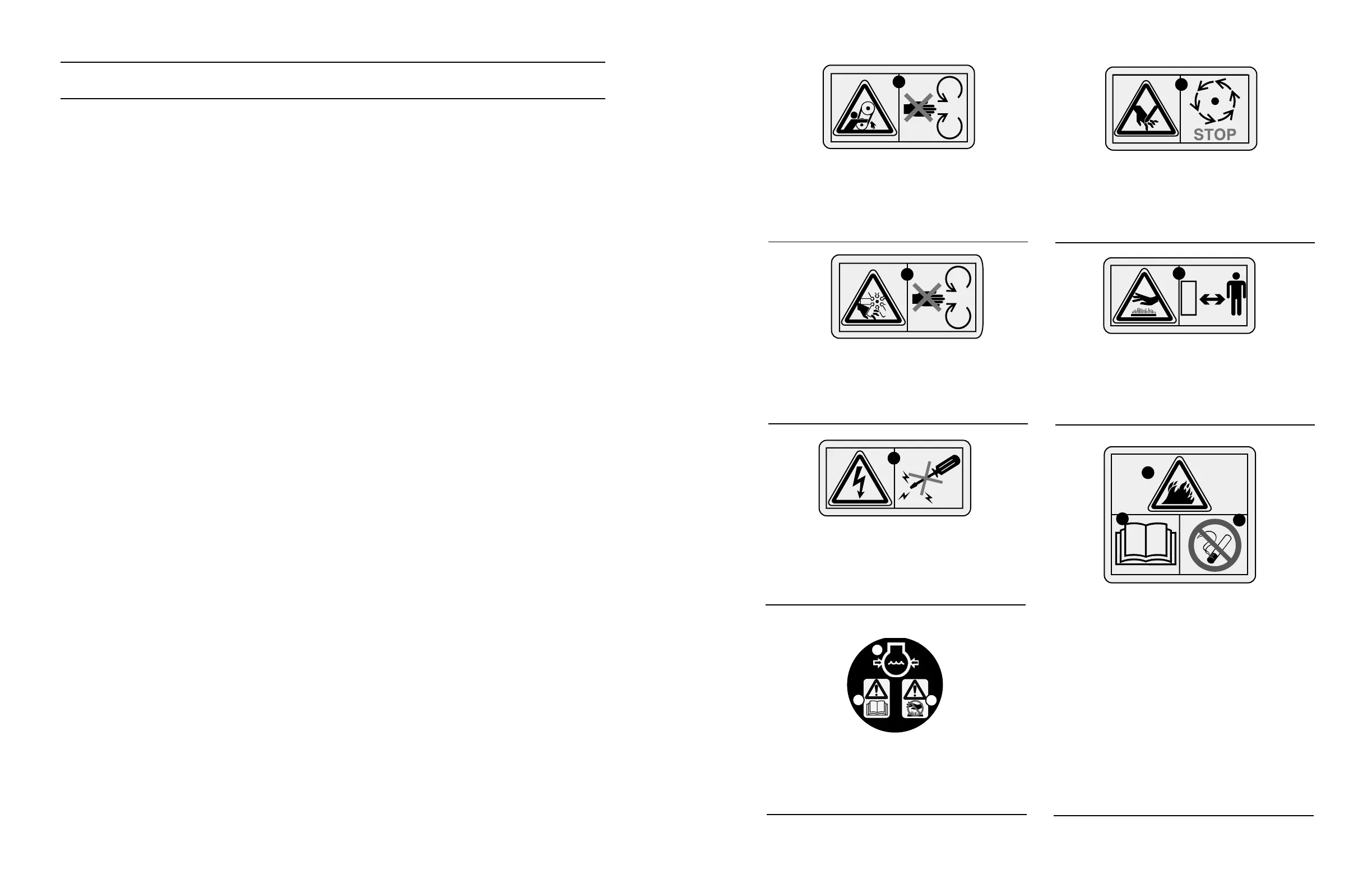

SAFETY DECALS
165369
165376
Part No.165373
1. Electrocution hazard - Do not modify the elec-
trical system.
Part No. 165369
1. Hand/Arm Entanglement hazard, belt - Stay
away from moving parts.
Part No. 165370
1. Hand/Arm Entanglement hazard, fan - Stay
away from moving parts.
Part No. 165376
1. Cutting/dismemberment hazard of hand or fin-
gers - Wait until moving parts have stopped
completely.
Part No. 165380
1. Hot surface - Keep a safe distance.
Part No.165381
1. Fire hazard.
2. Read the Operator's Manual.
3. No smoking.
1
1
165370
1
165373
1
165380
1
165381
1
2
3
Part No. 165374
1. Engine coolant under pressure.
2. Warning - Read the Operator's Manual.
3. Warning - Do not touch the hot surface.
165374
1
2
3
48
1 604366 Dual Fork With Nut
2 243922 Bolt
3 253970 Lock Nut
4 902425 Axle Spacer
5 824534 Pivot Housing - Rear Dual Fork
6 125855 Seal
7 122522 Bearing - Taper
8 123522 Bearing Cup
9 122523 Bearing - Taper
10 123521 Bearing Cup
11 257320 Washer - Spring
12 254505 Jam Nut-Nylon Toplock
13 723008 Bolt Lock
14 481434 Dust Cap - Domed
15 253243 Whiz Bolt
16 257061 Washer
17 833275 Oilite Bearing Reamed
18 253202 Whiz Bolt
19 824508 Axle Beam w/Bushing - Dual
20 830420 Spacer
21 483865 Wheel & Tire Assembly 13 x 6.5 x 6
w/Bearing & Spacer
482355 Tire 13 x 6.5 x 6
483306 Wheel Without Tire 6 x 4.5
22 902475 Bearing Spacer
23 120050 Wheel Bearing
24 247725 Bolt
25 604365 Rear Fork With Nut
26 282615 Spacer
27 125855 Seal
28 643631 Rear Axle Pivot
29 824510 Axle Beam w/Bushing
30 902427 Axle Spacer
31 643015 Pivot Mount Adapter
32 243385 Bolt
33 257412 Lock Washer
34 253043 Whiz Nut
35 243334 Bolt
36 481432 Dust Cap
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
ItemItem
ItemItem
Item
OrderOrder
OrderOrder
Order
DescriptionDescription
DescriptionDescription
Description
No.No.
No.No.
No.
No.No.
No.No.
No.
TAIL WHEEL OPTIONS
01-99021B / 01-99022B / 01-99023B
Rev. 09-06
