23

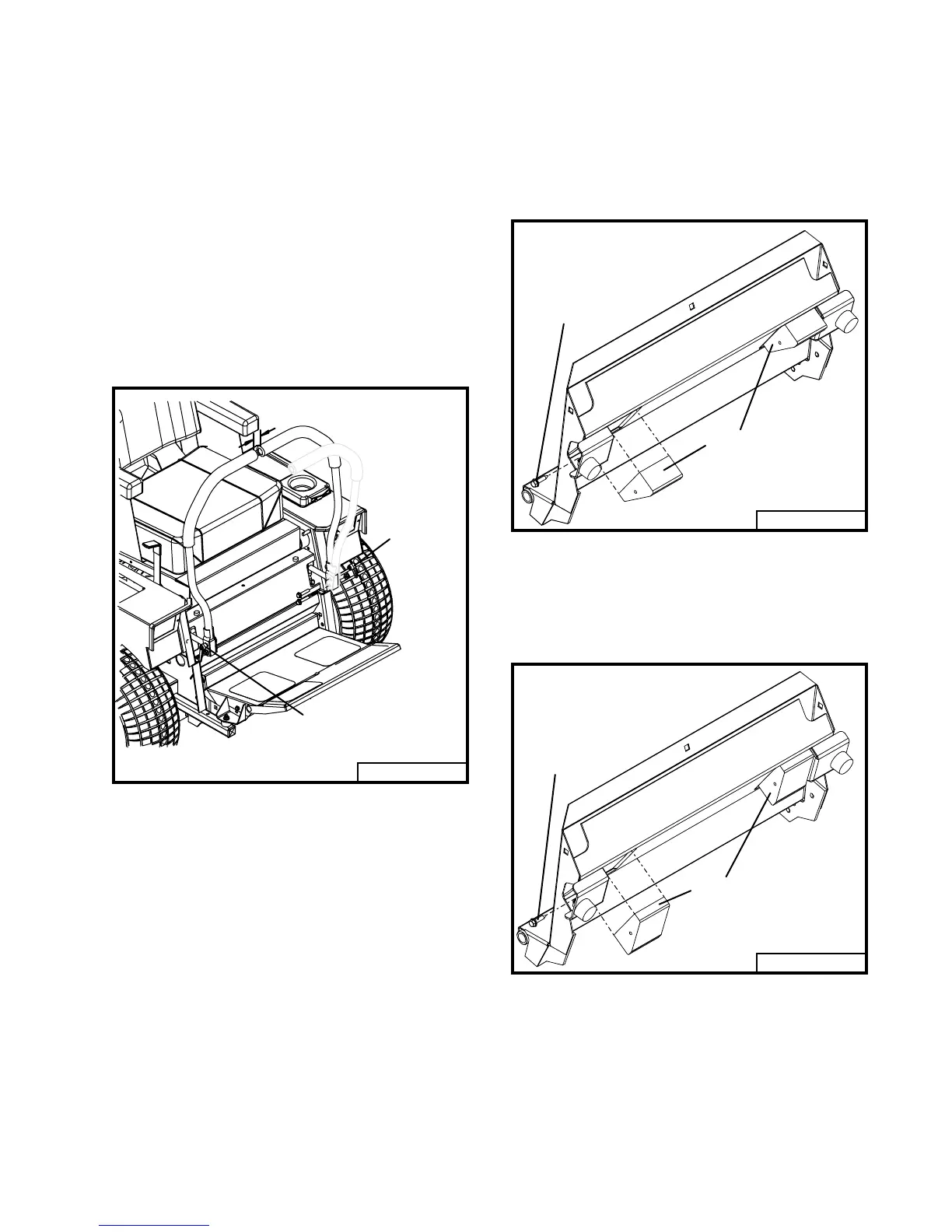

FOOT REST BLOCK INSTALLATION
If installing a 33, 34 or 95 series deck on a 700 se-
ries tractor, install the foot rest blocks with the wide
end of block toward the front (refer to Fig. 9).
Fig. 9
Fig. 10
If installing an SL96, SL98 series or 9772 deck on
a 700 series tractor, install the foot rest blocks with
the narrow end of block toward the front (refer to
Fig. 10).
Foot Rest Block
Tap Screw
98035
33, 34 or 95
Series Decks
Foot Rest Block
Tap Screw
98036
SL96, SL98 Series
or 9772 Decks
STEERING LEVER ADJUSTMENT
To adjust steering levers, loosen adjustable nuts
that secure the levers to the lever mounts. This
allows the levers to be moved forwards or back-
wards (refer to Fig. 8). Set levers to a comfortable
position for the operator. Hold levers in an outward
position and tighten adjustable nuts. The levers
must line up when in neutral position and maintain
one inch of clearance between end of levers. If the
levers are allowed to lean toward center when the
adjustable nuts are tightened, free play in the mount-
ing holes may allow the levers to hit each other.
Fig. 8
Adjustable
Nut
1"
Adjustable
Nut
99071
