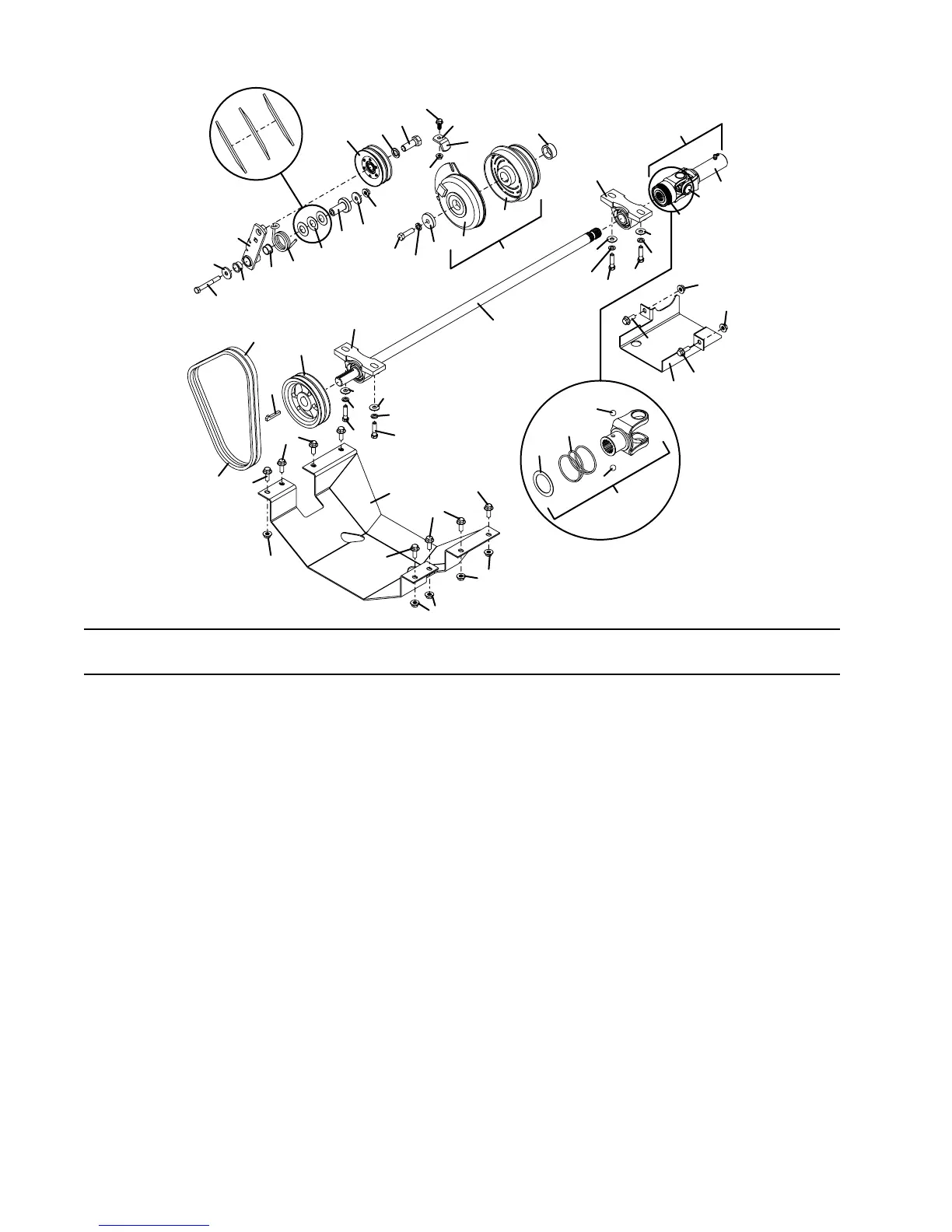

PTO SHAFT & CLUTCH ASSEMBLY
1 393759 Power Shaft
2 122044 Pillowblock Bearing
3 398914 Universal Half Sleeve – QD
(includes items 4 – 6)
4 401019 Splined Yoke - Quick Disconnect
(includes items 7-9)
5 121010 Cross & Bearing
6 401017 Yoke with Sleeve
7 263660 External Retainer
8 283525 Compression Spring
9 300014 Steel Ball
10 415650 Sheave
11 281588 Gib Key .25 x 1.5
12 388771 Electric Clutch
13 388875 Field Assembly w/Brake
14 388866 Armature & Rotor Assembly
15 902586 Spacer – 1.125 x .720
16 883803 Washer .312 x 11MM x 1.625
17 257422 Lock Washer .437
18 243456 Bolt .437-20 x 1.5
19 732407 Anti-Rotation Bracket
20 422087 Clutch Bracket Cover
21 253192 Whiz Bolt .312-18 x .75
22 253035 Whiz Nut .312-18
23 824471 Idler Arm (includes items 24-26)
24 121756 Flange Bearing - Oilite
25 121651 Bearing Pedestal
26 257319 Washer - Spring
27 243365 Bolt .375-16 x 3
28 257040 Washer .375
29 253043 Whiz Nut .375-16
30 415610 Idler Pulley
31 243805 Bolt .625-11 x 1.75
32 257452 Lock Washer .625
33 644422 Sheave Guard
34 729287 Shield – PTO Shaft
35 253203 Whiz Bolt .375-16 x 1
36 243340 Bolt .375-16 x 1.5
37 381914 Belt
38 284428 Torsion Spring
39 257412 Lock Washer .375
40 774020 Washer .406
1
2
2
3
4
5
6
7
8
9
9
4
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
40
29
30
31
32
33
35
34
35
29
29
36
36
36
36
28
28
39
39
40
37
37
35
35
39
28
28
39
35
35
35
29
29
29
