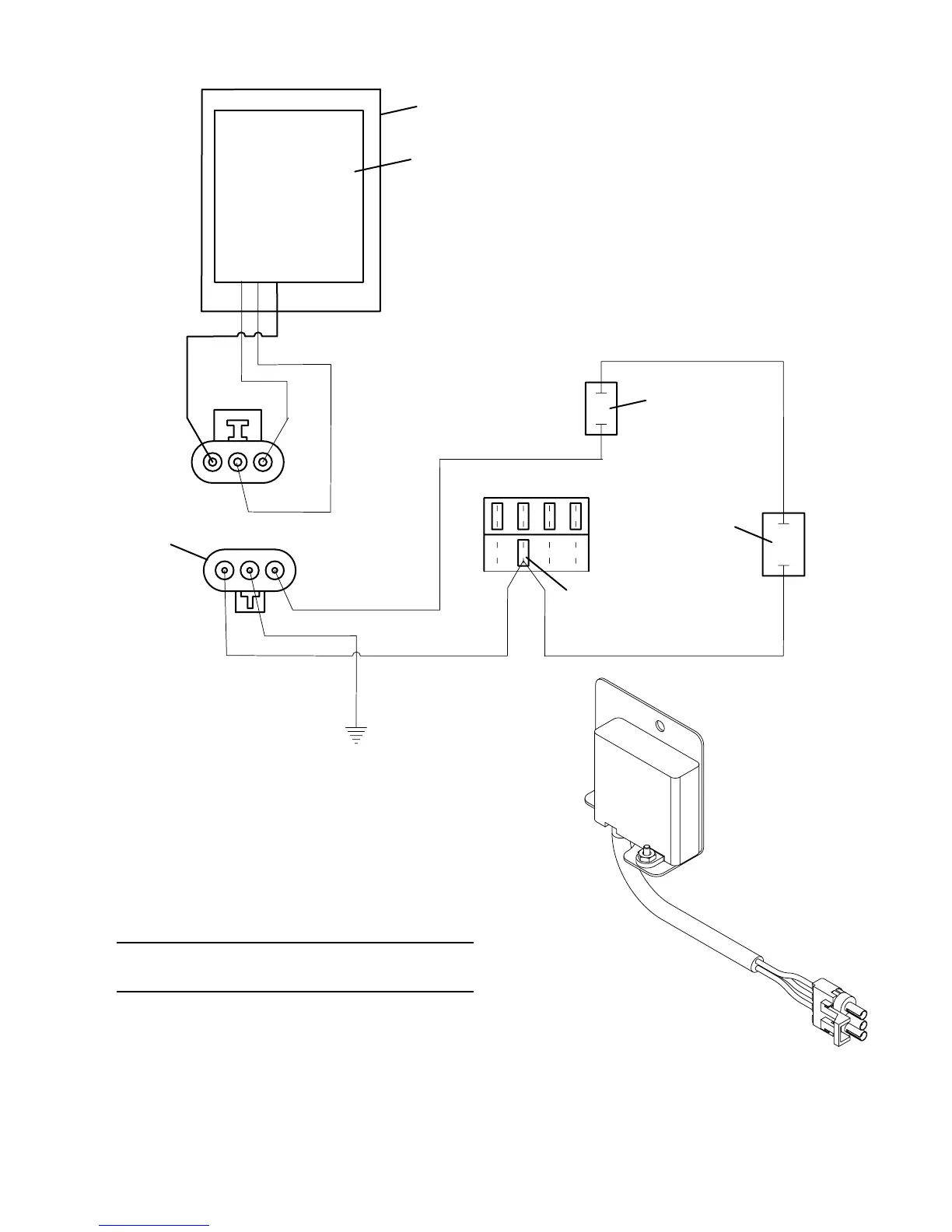

HYDRAULIC LIFT
WIRING
ASSEMBL
Y
5
3
1
6
4
2
GREEN
BLACK
BLACK
PURPLE
GROUND TO ENGINE
FUSE BLOCK
YELLOW/BROWN
C
AB
C
B
A
BLACK
RED
YELLOW
1
144950
Hydraulic Solenoid
2
183710
Tilt Switch
3
183940
Push Button Switch
4
184973
Weather Pack Connector
5
181460
Accessory Fuse - 7.5 amp Auto
6
722747
Mount - Tilt Switch
Item
Item
Item
Item
Item
Order
Order
Order
Order
Order
Description
Description
Description
Description
Description
No.
No.
No.
No.
No.
No.
No.
No.
No.
No.
44
46
Table of Contents
Table of Contents
3
Specifications
5
Safety Symbols
6
Safety Decals
7
Training
8
Preparation
8
Fuel Handling Safety
8
Operational Safety
9
Maintenance Safety
10
Storing Safely
10
General Information
11
Measurement Conversion
12
Bolt Size and Tightening Recommendations
12
Operation
13
Controls and Switches
13
Pre-Start Check List
13
Mounting and Dismounting the Tractor - with Mower Deck
14
Mounting and Dismounting the Tractor - with All Other Attachments
14
Starting the Engine
15
Cold Weather Starting Tips
15
Uneven Terrain
15
Stopping Engine
16
Moving Unit Without Power
16
Steering Lever Operation
17
Lubrication and Maintenance
19
Lubrication
19
Capacities
19
Tire Air Pressure
19
Drive System
19
Crankcase Oil and Air Filter
19
Cooling System
19
Battery Maintenance
20
Checking Drive System Fluid Level
20
Changing Drive System Fluid and Filters
20
Parking Brake Adjustment
21
Clutch Removal / Replacement
21
Adjustments and Troubleshooting
21
Loss of Power in the Drive System
21
No Positive Neutral Position
21
Neutral Adjustment
21
Clutch / Brake Burnishing
22
Engine Troubleshooting
22
Wiring Circuit Board Removal
22
Steering Lever Adjustment
23
Foot Rest Block Installation
23
Adjusting Traction Spring Tension
24
Removing Mower Deck from Traction Kit Equipped Tractor
24
Rear Weight Requirements
24
Parts List and Illustration
25
Tractor Assembly 723T
26
Tractor Assembly 723T
27
Tractor Assembly 727T
28
Tractor Assembly 727T 6
29
Drive Assembly
30
Brake Assembly
32
ROPS & Seat Assembly
34
ROPS & Seat Assembly
35
PTO Shaft & Clutch Assembly
36
Steering Assembly
37
Wiring Diagram
38
Tail Wheel Options
40
Tail Wheel Options
41
Traction Kit
42
Counterweight Mount Kit
43
Limited Universal Harness (All Non-Hydraulic Lift Models)
44
Hydraulic Lift Wiring Assembly
45
Hydraulic Lift Assembly
46
Standard Universal Harness (All Hydraulic Lift Models)
48
5
Based on 1 rating
Ask a question
