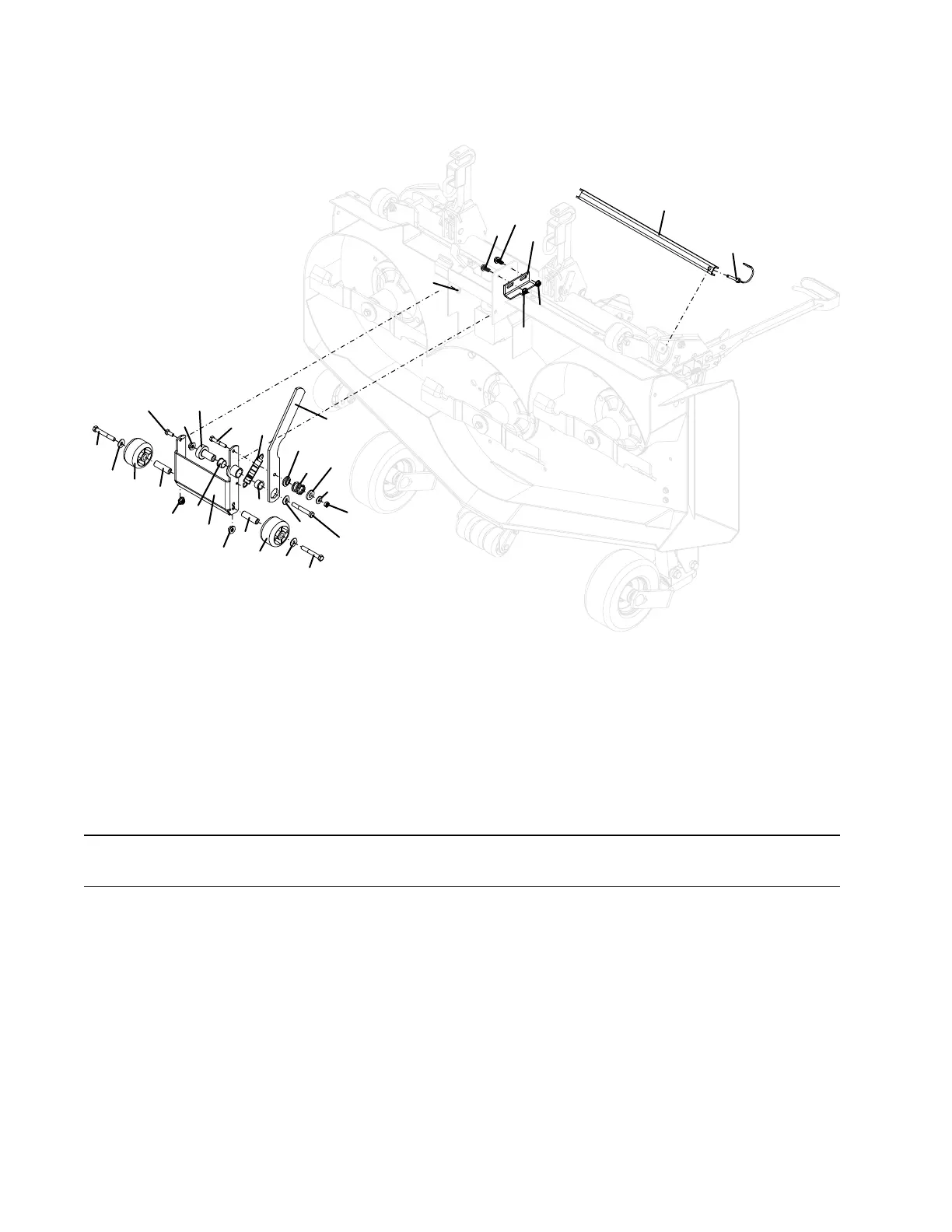

DECK STAND ASSEMBLY
Item Order Description
No. No.
Item Order Description
No. No.
1 824591 Mount - Deck Stand Roller
(includes items 2 & 3)
2 121756 Bearing - Oilite
3 121650 Bearing Pedestal
4 776415 Lever - Roller Mount
5 754067 Lever Stop - Roller
6 253192 Whiz Bolt .312-18 x .75
7 253035 Whiz Nut .312-18
8 902284 Spacer - Roller Mount
9 426122 Roller
10 257040 Washer .375
11 243360 Bolt .375-16 x 2.75
12 253043 Whiz Nut .375-16
13 243225 Bolt 312-18 x 2
14 257067 Step Washer
15 283332 Spring - Compression
16 257030 Washer .312
17 253450 Nut .312-18 Nylon Insert
18 243205 Bolt .312-18 x 1
19 283818 Spring - Extension
20 754082 Tool - Traction Kit
21 261624 Linch Pin .25 x 1.75
0003228
0 0 0 3 2
1 8
3
1 2
1 1
1 0
9
8
1 2
2
1
1 2
8
2
9
1 0
1 1
1 1
1 7
1 6
1 4
4
1 5
1 4
1 9
1 3
1 7
6
6
5
2 0
7
7
2 1
1 0
