Grasshopper SL98 Series User Manual

32

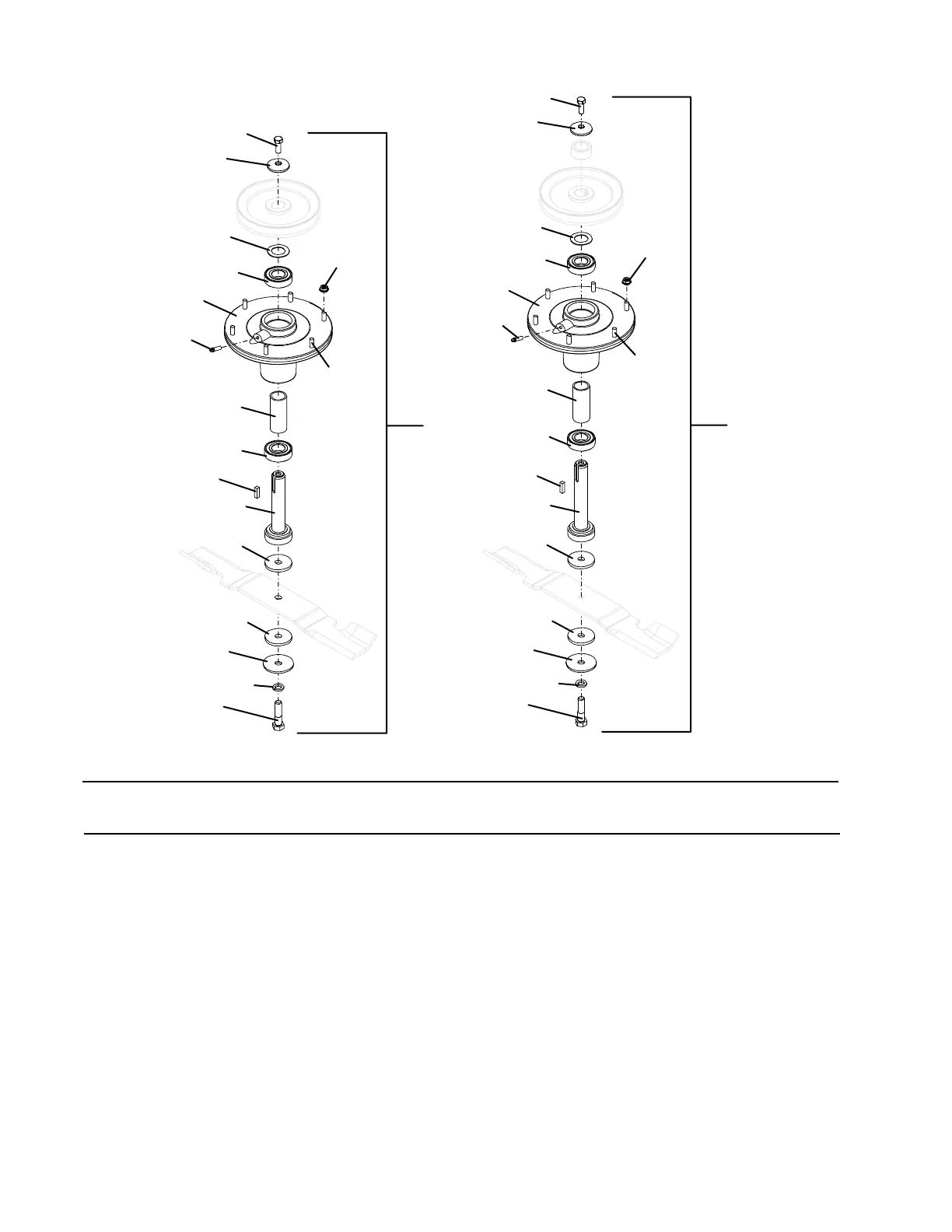

BLADE SPINDLE ASSEMBLY
Item Order Description
No. No.
Item Order Description
No. No.
1 623781 Blade Spindle Assembly Lt/Ctr
(includes items 3-15)
2 623782 Blade Spindle Assembly Rt.
(includes items 3 - 9 & 11 - 16)
3 243331 Bolt .375-24 x 1
4 257041 Cupped Washer
5 257106 Washer 1 x 18 Ga. Bushing
6 110082 Ball Bearing 25 mm
7 604421 Spindle Housing
8 280745 Grease Fitting
9 903643 Bearing Spacer
10 604775 Spindle Shaft Assembly Lt/ Ctr
11 421200 Fiber Washer
12 257061 Flat Washer
13 257432 Lock Washer
14 243581 Bolt .5-20 x 2
15 247141 Stud Bolt .312-18 x 1.25
16 604774 Spindle Shaft Assembly Rt
17 281582 Square Key .25 x .875
18 253035 Whiz Nut .312-18
01-00026 / 01- 00038
Rev. 11-00
3
4
5
1 8
6
7
8
1 5
1
9
6
1 7
1 0
1 1
1 1
1 2
1 3
1 4
0 1 - 0 0 0 2 6
3
4
5
6
1 8
1 5
7
8
9
6
1 7
2
1 6
1 1
1 1
1 2
1 3
1 4
0 1 - 0 0 0 3 8
