Grasshopper SL98 Series - Right Angle Gearbox

33
Item Order Description
No. No.
Item Order Description
No. No.
390024 Gear Box CCW
1 125336 Seal .875 x 1.380
2 420201 Gasket - Cap
3 120071 Bearing .875
4 393517 Shaft .875 x 5.220
5 392501 Bevel Gear .995 x 8 Pitch
6 120065 Bearing .750
7 110080 Bearing - 25 mm
8 393512 Shaft .875 x 4.60
(used on manufacturer's
part no. 1000-067A) *
393514 Shaft .875 x 4.60
(used on manufacturer's
part no. 1000-067) *
9 392500 Bevel Gear .865 x 8 Pitch
10 263540 Retainer Ext. .819 x .040
11 420200 Gasket - Cover
12 125345 Seal - Oil
13 120072 Bearing - .875
(used on manufacturer's
part no. 1000-067A) *
120071 Bearing - .875
(used on manufacturer's
part no. 1000-067) *
* Check metal tag on gear box.

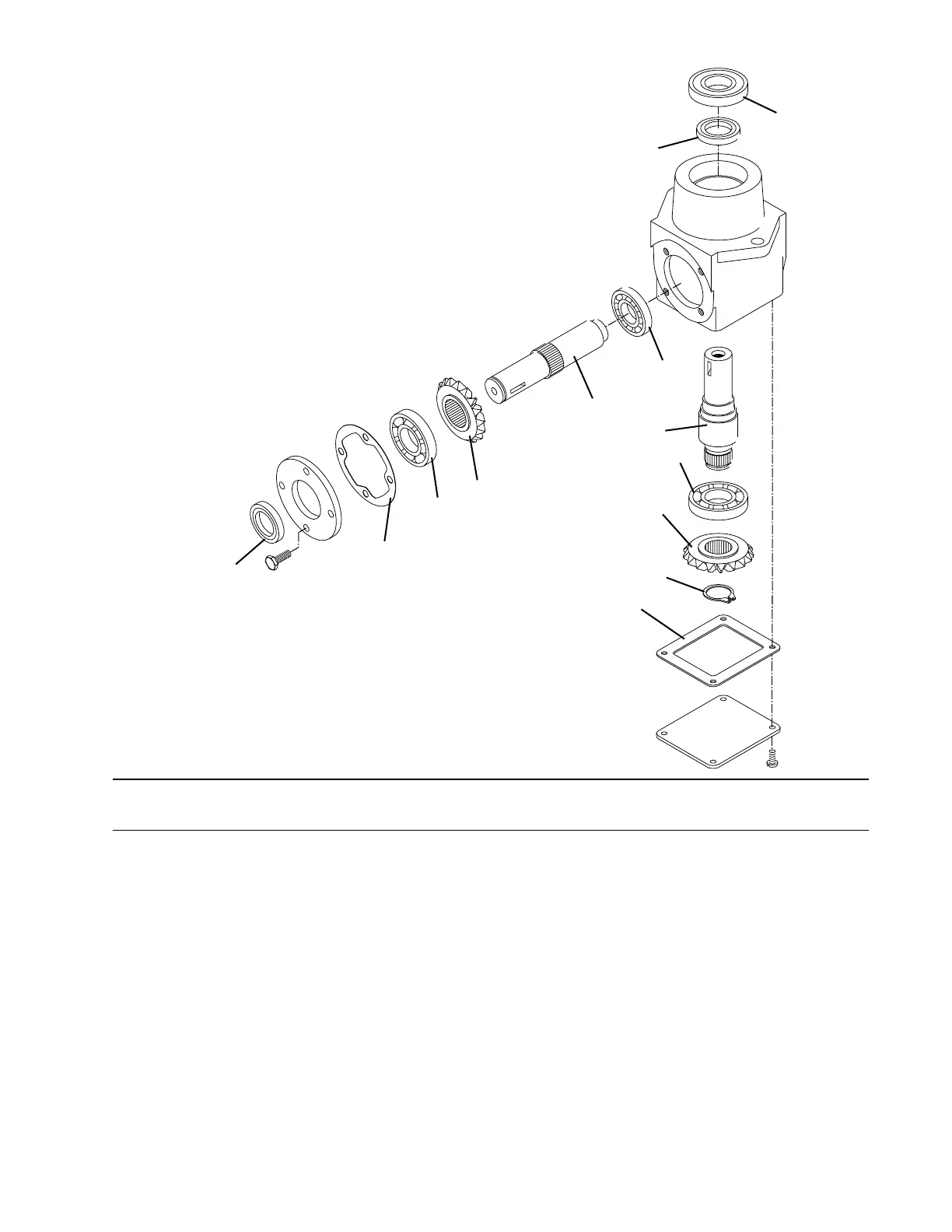

RIGHT ANGLE GEARBOX
7
8
4
9
5
3
2
1
1 0
1 1
1 2
6
1 3
9 2 0 0 5 A
92005A
