Note
Make sure that all the plugs are securely inserted in the respective
sockets, and only use the provided plug-in connectionswith a 2-pin
jack plug on the DSC side.
In the "Transmitter setting" sub-menu, you can set one of the
following modes in the "DSC output" line depending on the
number of functions to be transmitted: PPM10, PPM16, PPM18
and PPM24. Default setting: PPM10.
Memory cards
Compatible memory cards:
 micro SD up to 2 GB
 micro SDHC up to 32 GB
Our recommendation: For a normal use a memory card with a
storage capacity of up to 4 GB is sufficient.
Inserting and removing the memory card step by step:
Switch off the transmitter.
The memory card slot is located in the left provided connections
of the transmitter.
To insert:
Push the SD card as deep as you need to win the spring resis-
tance of the slot. (contacts upward)
To remove:
Push the SD card slightly toward the card slot to unlock it and
then remove it.
The included memory card is ready for use as soon as the trans-
mitter is switched on. In the display appears the symbol of a
memory card.
Otherwise, folders are created on the memory card ( repre-
sented in the transmitter display by a permanent filling from left
to right memory card). When the animation finishes, the inserted
memory card is ready for use.
You can connect the memory card to your PC by using a mem-
ory card reader. Copy the data downloaded from the transmitter
page on the web site in the related folder of the memory card.
Insert the memory card in your transmitter.
Data recording/Data saving
The data recording in the SD card is linked to the log timer. If it
is started, the data recording starts as well and it stops when
the log timer is stopped.

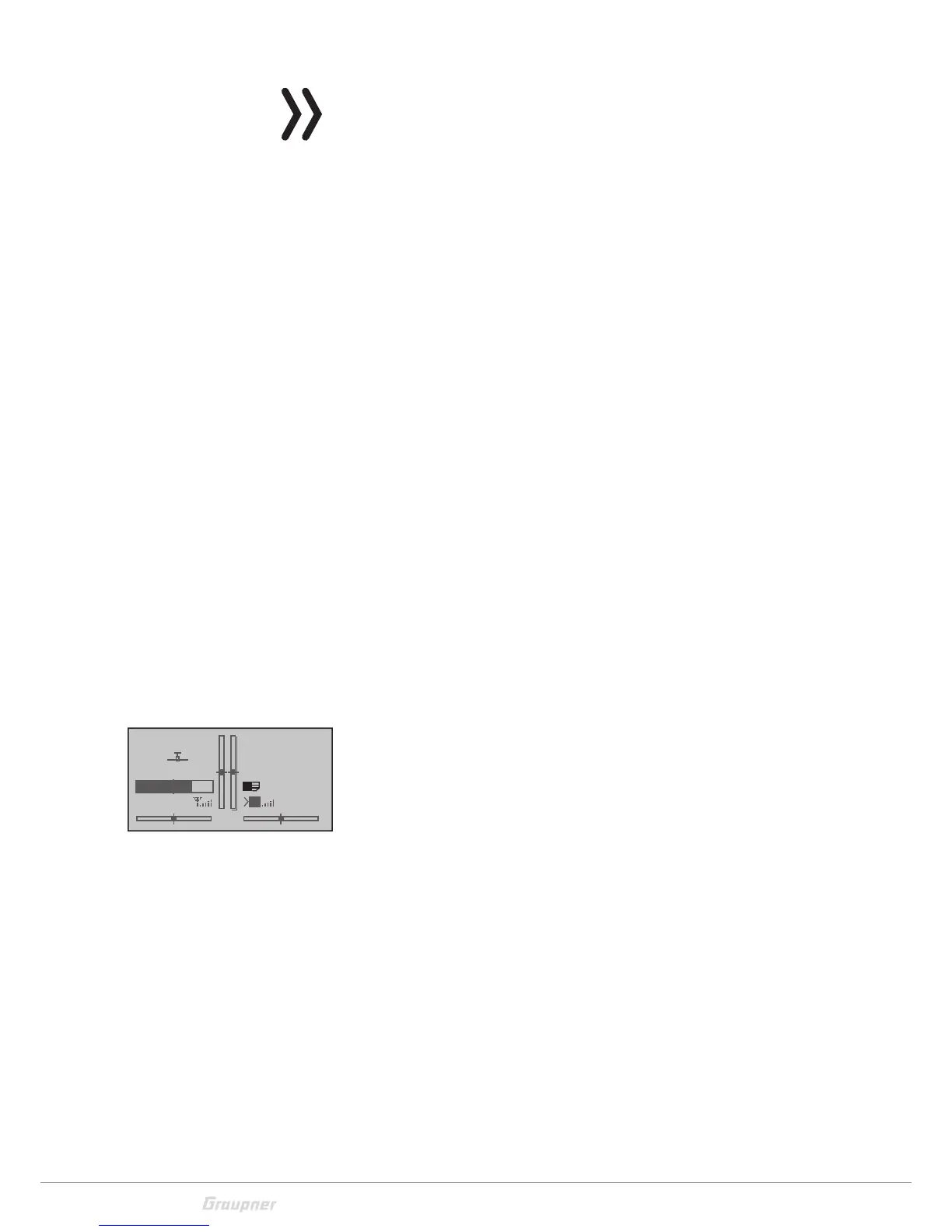

GRAUBELE
#01
2:22h
S
F
«normal »
K78
0:00.0
0:00.0
5.5V
3.9V
M
HoTT

GRAUPNER MC-28 Specifications

General

Proper use	Helicopter
Product type	Remote control
Product color	Black, Silver
Frequency band	2.4 - 2.484 GHz
Menu languages	DEU, DUT, ENG, ESP, FRE, ITA
Channels quantity	16 channels
Brand compatibility	Graupner
Throttle (TH) function	Yes
Compatible memory cards	MicroSD (TransFlash)
Number of memory records	120
Maximum operating distance	3000 m
Operating temperature (T-T)	-15 - 55 °C
Power consumption (charging)	400 mA
Operating voltage (max)	4.35 V
Operating voltage (min)	3.4 V

Weight and Dimensions

Depth	235 mm
Width	228 mm
Height	66 mm
Weight	1250 g
