Commissioning
Hand pads
Installing the hand pads
The hand pads have to be installed on the sides of the transmit-
ter. Hold the hand pad exactly upon the six holes and fix it with
the 6 fixing screws. Use the same procedure for the other hand
pad.
Attention!
Screw the fixing screws only with the hand pads on the transmitter
case. The place inside the transmitter case will otherwise not be
enough and you could damage the boards.
Removing the hand pads
The hand pads are removed by unscrewing the fixing screws.
After removing the screws glue the included rubber pins on the
holes. So you will protect the transmitter interior.
Attention!
Do not screw the fixing screws in the holes after removing the hand
pads! The place inside the transmitter case will not be enough and
you could damage the boards.

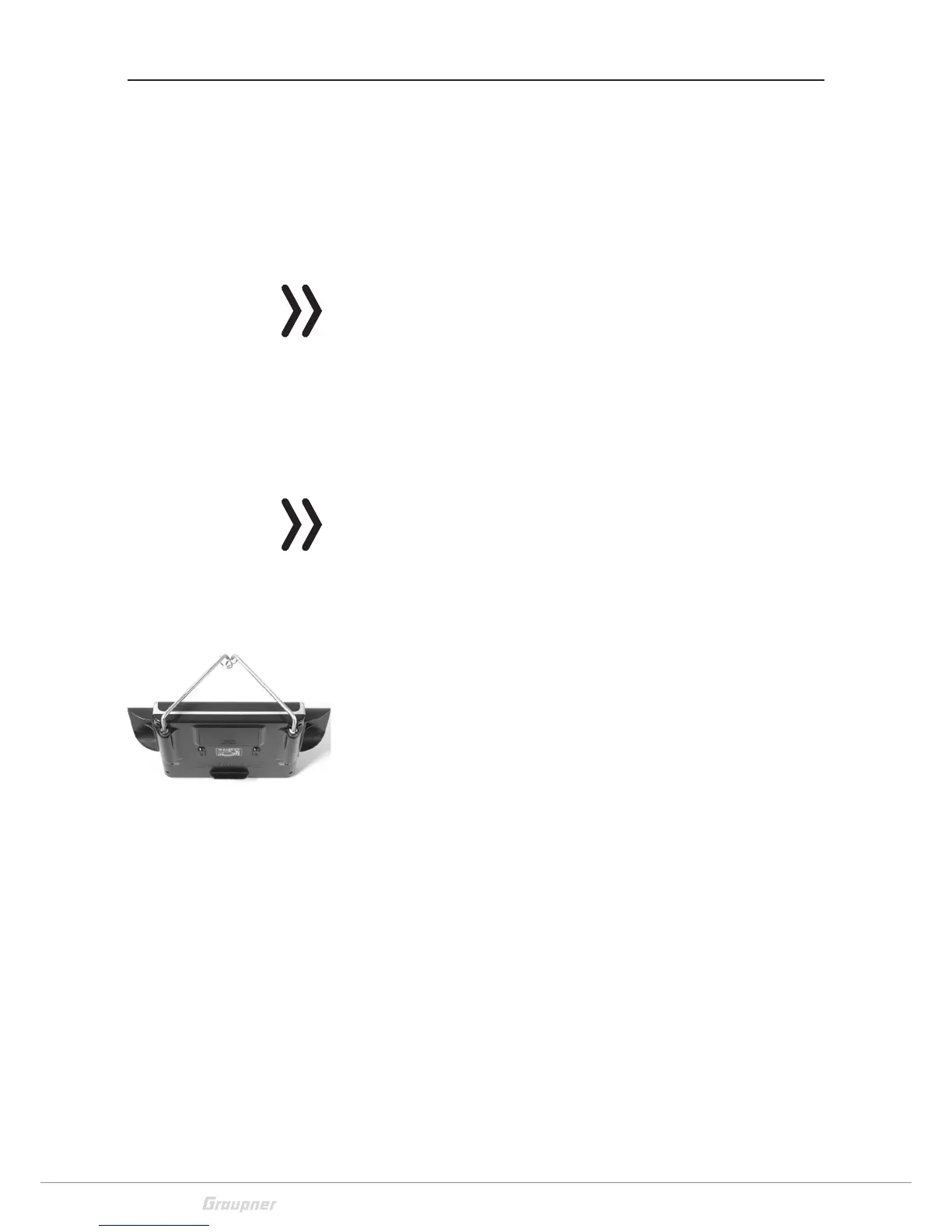

Brackets for transmitter belt
Installing the metal brackets:
Insert the included metal bracket in the bracket holder on the
side of the transmitter.
Push the bracket against the spring (approx. 1 cm in the trans-
mitter direction).
Contemporaneously rotate the bracket to the outside to fix it.
Proceed similarly with the second bracket.
Removing the metal brackets:
Unlock a bracket, by gently pushing it inwards and then fold in
the direction of the transmitter center.
Once the retaining pin is free again, you can pull the bracket
away from its place.
Proceed similarly with the second bracket.
