The flashing arrows indicate in which direction you have to push
the sticks.
Confirm by pushing the SET key.
With the selection keys
of the right four way keys allow you
to cyclically select the positions of the four calibrated sticks.
Pushing the ESC key will terminate the process and return to the
sub-menu "Stick cali.".
Example: Bring here the respective left blinking selection arrow
of the right stick to the left limit. Tip on the SET key. Push the
SET key. So the calibration of the right stick left limit. The circle
in the middle of the stylized stick blinks as confirmation.
Slider control calibration
Here both central slide controls (SR1-2) and the lateral lever
controls (SD1-2) are calibrated. The blinking arrows indicate you
in which direction you have to move the controls.
With the selection keys
of the right four way keys allow you
to cyclically select the positions of the four calibrated controls.
Proceed as described in the upper example.
UVG (Universal control) calibration
Here are calibrated the travels of the control of the 4D control
stick or the optionally installed rotary control. Proceed as
described in the upper example.
Bluetooth initialization
In this display you can initialize the Bluetooth module. The menu
is only for service functions, this process has already performed
in the factory.
Neutral zone
In this menu you can calibrate the "dead" zone in the central
point of the sticks and controls, so that in this zone there is no
control movement.
Push the SET button, increase the lower left value until the end
point is no longer visible in the central line. Perform this process
for all the four stick directions and both rotary controls. With the
selection keys
of the right four way keys allow you to cycli-
cally select the positions of the calibrated travels (1 to 6).

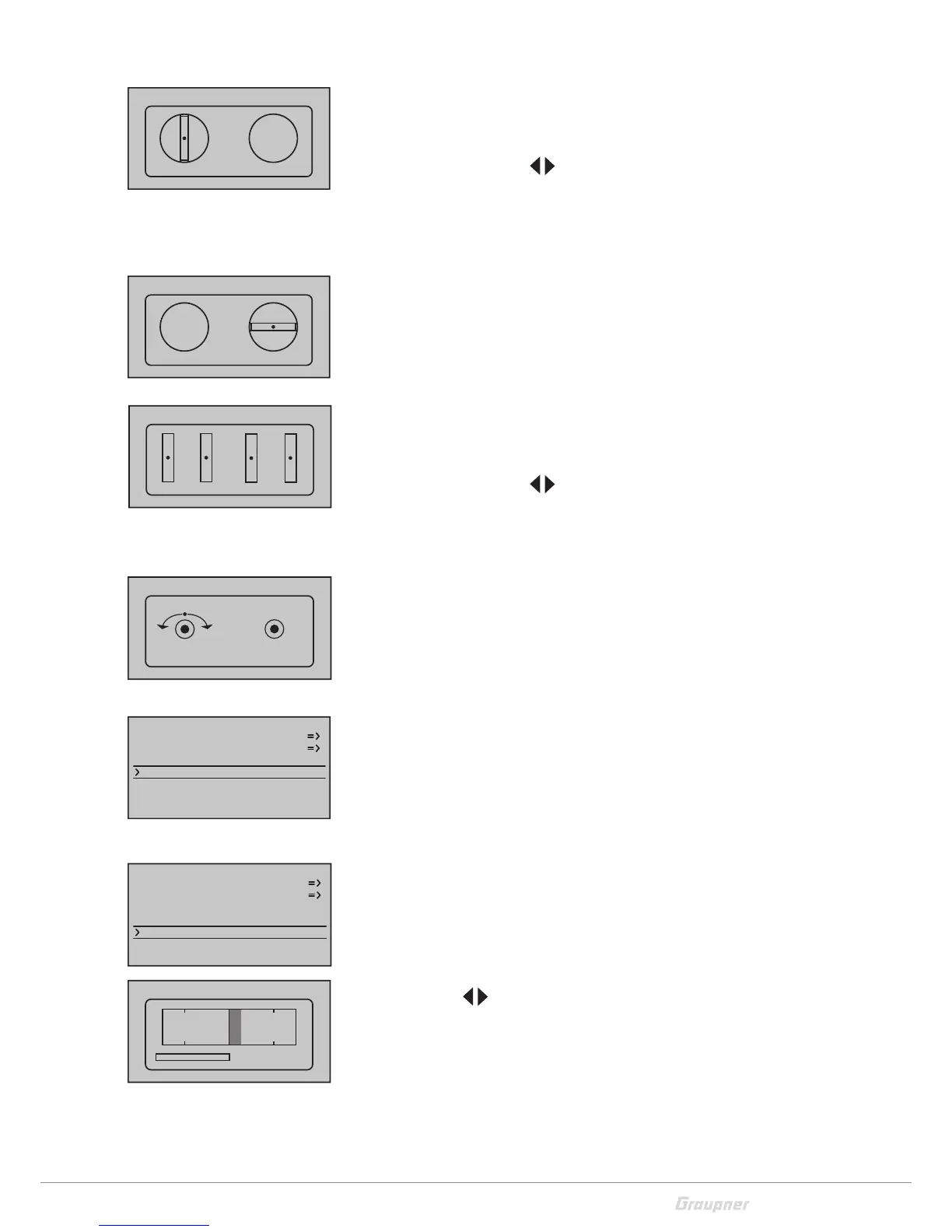

STICK CALIBRATION
CONTRAST
LANGUAGE
0
VOICE
DEUTSCH
ENGLISH
STICK CALI.
0%


STICK CALIBRATION
CONTRAST
LANGUAGE
0
VOICE
DEUTSCH
ENGLISH
STICK CALI.
+102%


SLIDE CALIBRATION
CONTRAST
0
VOICE
DEUTSCH
ENGLISH
+102%








UVG CALIBRATION
CONTRAST
0
VOICE
DEUTSCH
ENGLISH
+7%
HIDDEN MODE
VOICE
STICK CALI.
FIRMWARE UPDATE
BLUETOOTH INIT.
NEUTRAL ZONE
HIDDEN MODE
VOICE
STICK CALI.
FIRMWARE UPDATE
BLUETOOTH INIT.
NEUTRAL ZONE
NEUTRAL ZONE RATE
CONTRAST
0
VOICE
DEUTSCH
ENGLISH
+7%
1: 1.7
