GRAUPNER mc-32 HoTT User Manual

12 / 36
33032_jp_V1
Description of the transmitter

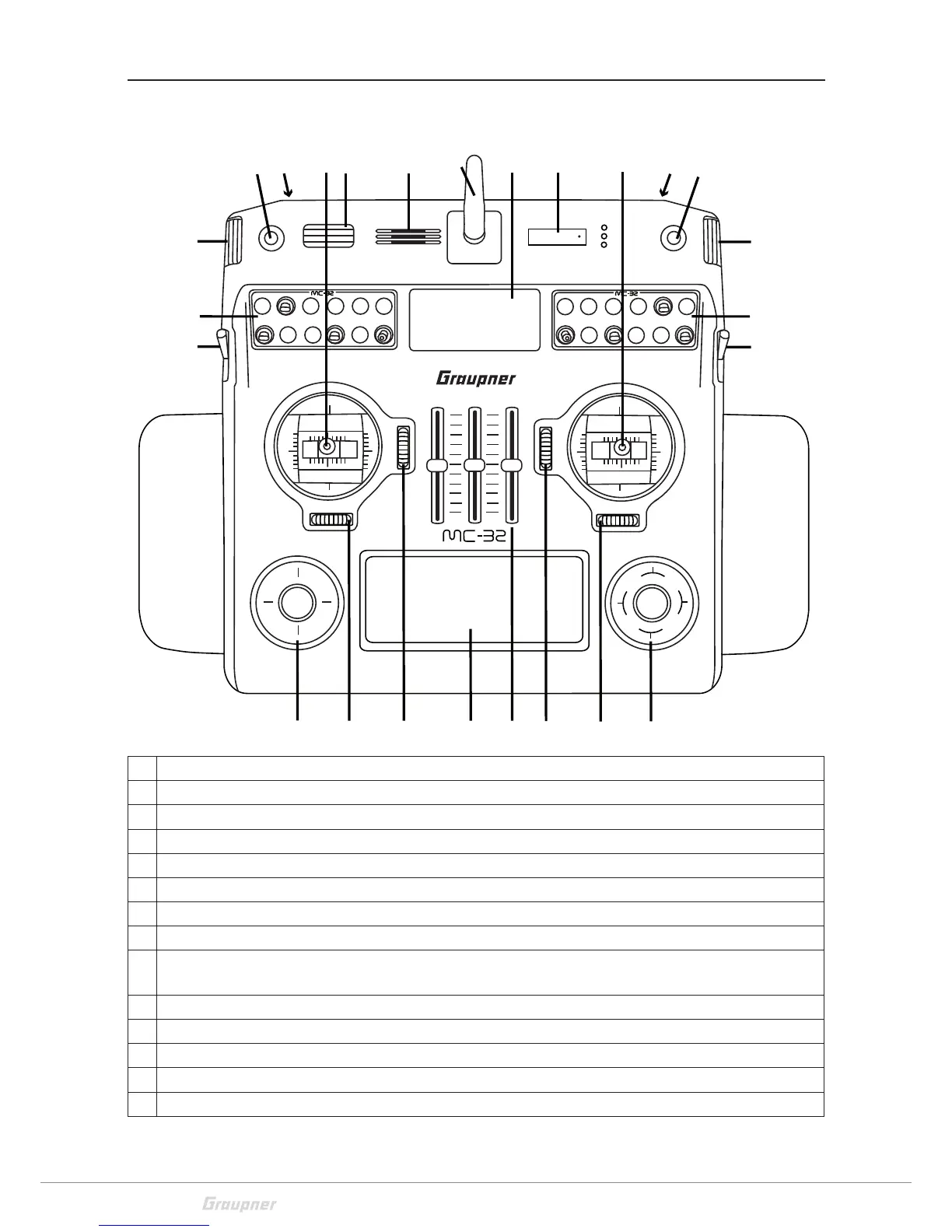

Control elements on the transmitter
1 Knob control (depressible): left "DG4", right "DG2"
2 Connection sockets (protected by a cover)
3 Control sticks (2 sticks for a total of four independent control functions)
4 Roller control
5 Speaker
6 Antenna with folding and swivel joint
7 LCD (telemetry indicators, standard receiver parameters)
8 ON/OFF switch and LED indicators (battery, RF radiation, warning signals)
9 Option locations (for retrofitting the transmitter with switches and knob modules 8 switches included as
standard equipment)
10 Rotary controls (left "SD2", right "SD1")
11 Touch pad
12 Digital trim
13 3 slider controls "SR1", "SR2". "SR3“
