Commissioning

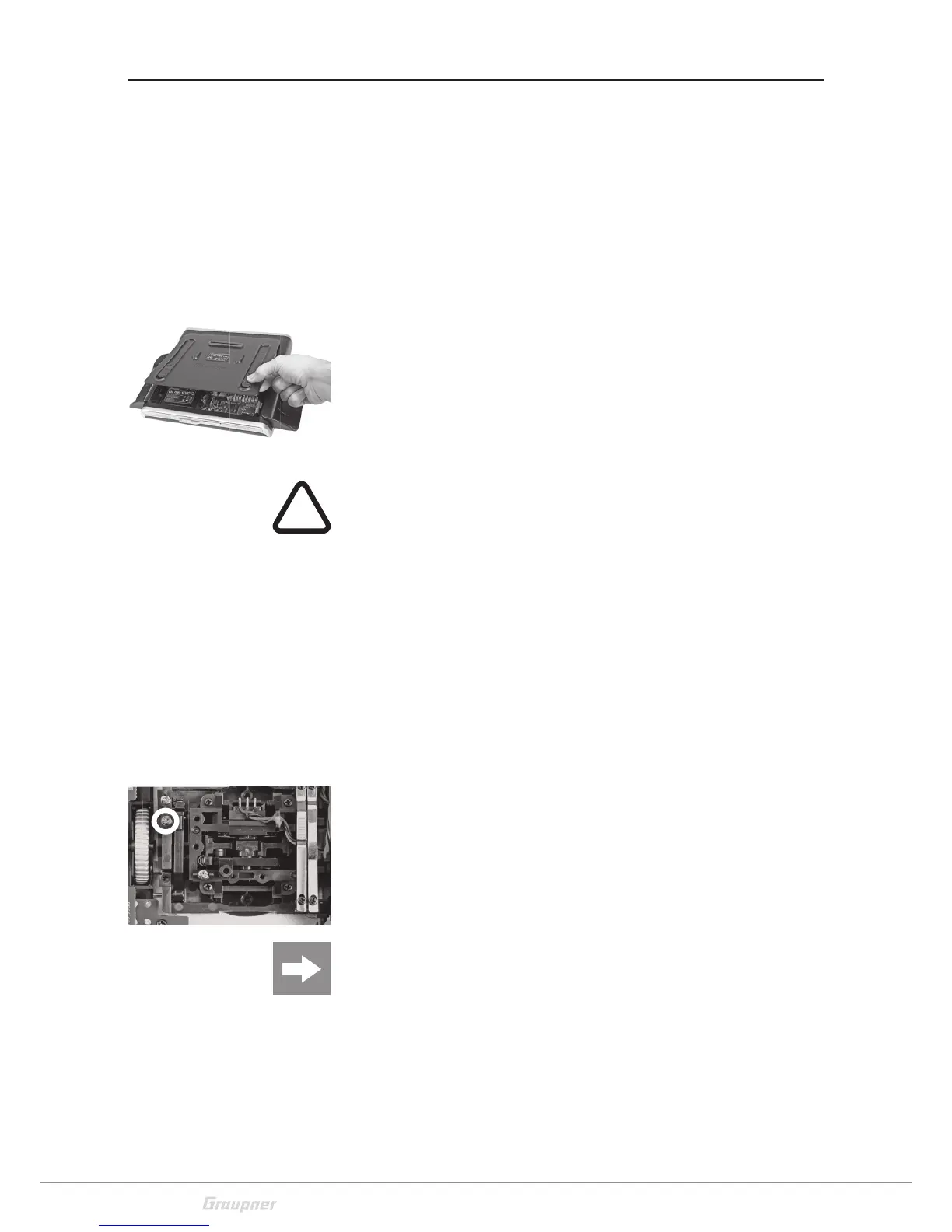

Opening/closing the transmitter housing
The transmitter should be opened only in the following cases:
If a self centering stick has to be converted in non self cen-
tering
If a non self centering stick has to be converted in self cen-
tering
To set the control stick centering force
Open step by step
Before opening the housing switch the transmitter off.
Push both housing base latches in the opposite the direction of
the arrow marks, toward the inside, to their limits.
Now tilt the transmitter somewhat to the rear so the housing
base can flip open and can be unhooked.
CAUTION
Never switch the transmitter on while the housing is open! Do not
touch the electronic boards.
Closing step by step:
Hook the transmitter's housing base to the underside.
To lock the transmitter bottom case, flip the base closed then
push both latches toward the outside.
Sticks conversion
Neutralization
Both control sticks can be set from neutralizing to non-neutral-
izing.
Neutralizing step by step:
Locate in the left control stick gimbal the screw surrounded by
a white circle in the picture.
Turn the screw toward the inside of the transmitter until the rel-
evant control stick can move freely from stop to stop, or turn it
outward until the control stick resets itself independently.
Note
The right control stick gimbal is specular to the left one, so that here
the screw is located right under the middle.
