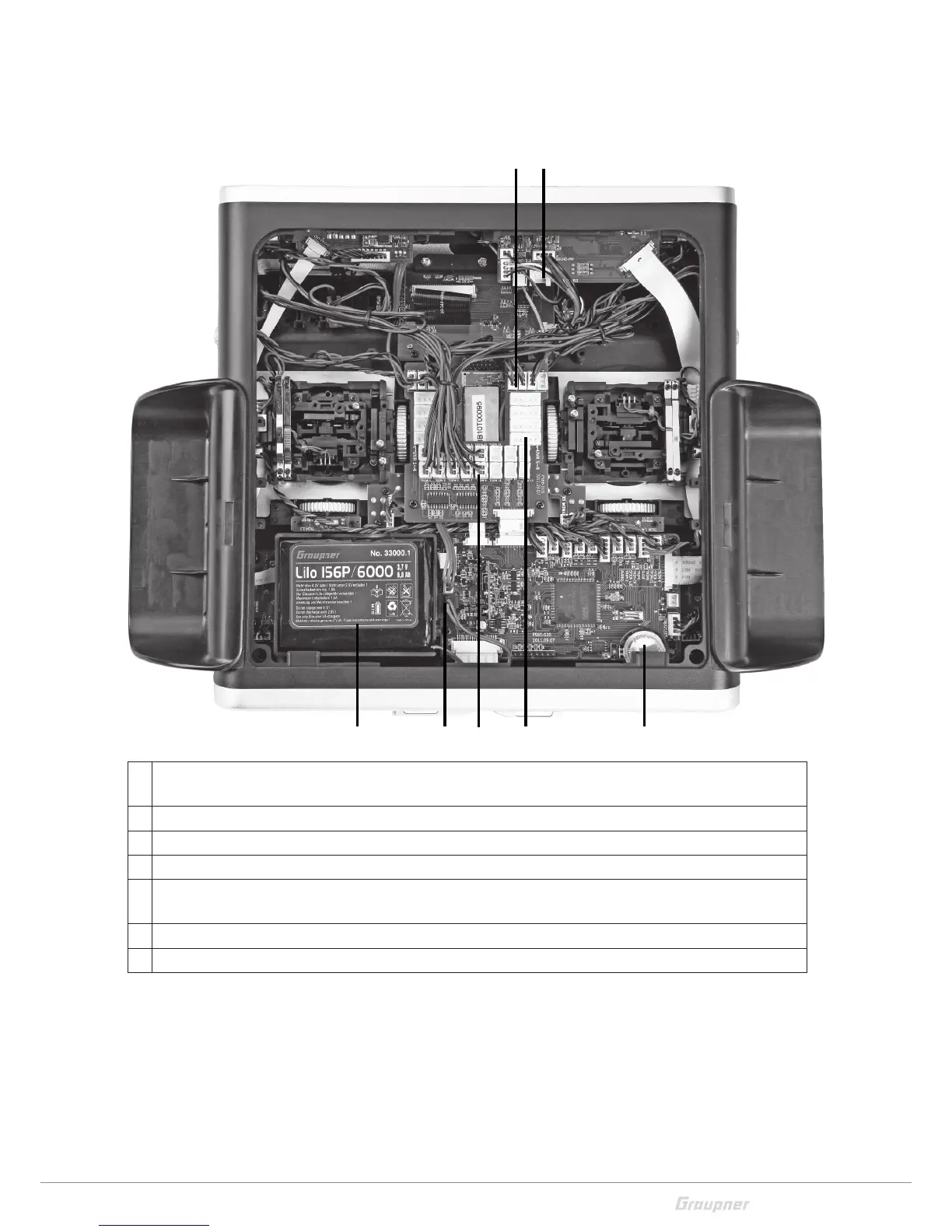

Transmitter interior
1 3 free plug-in locations and blind connectors (for 3 proportional rotary control modules) for optional
controls and switches (connection sequence as preferred)
2 INT PPM plug-in location (one free plug-in location for connecting an additional – internal – RF module)
3 Transmitter battery
4 Transmitter battery plug
5 Plug-in locations (6 free plug-in locations for additional switches are standard, these switch plug-in
locations can be used in any sequence)
6 Plug-in locations (UVR, 5-pole 2 x 4 free plug-in locations for future rotary control installations)
7 Lithium battery CR2032 (not rechargeable but changeable)
