Depending on the connected modules and sensors, several
selectable figures will appear. The description of these figures is
contained in the manual content in the sensor package.

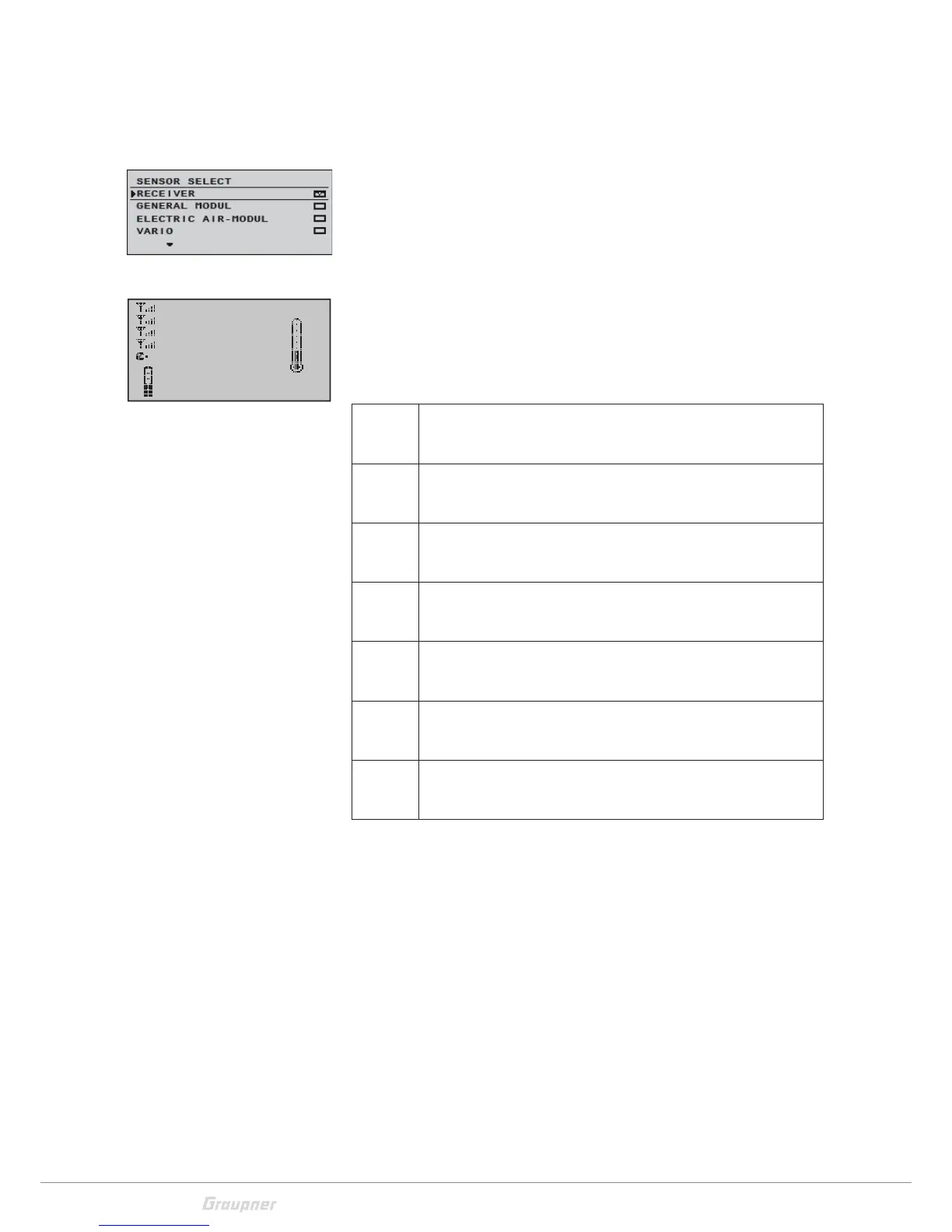

The transmitter recognizes automatically the sensors. You can
view the sensors by pushing the SET key for 2 seconds or by
returning to the main menu and then to the telemetry menu. The
sensors will be listed in the display and marked with a check-
mark.
Receiver
This display offers a graph of the data from the display "RX DAT-
AVIEW“ of the "Telemetry" menu "SETTINGS, DISPLAYS".
Value Explanation
RX-S
QUA
Quality expressed as a percentage of the signal packages from
the transmitter arriving at the receiver
RX-S ST Signal strength expressed in percentage of the signal from the
transmitter arriving at the receiver
RX-dBm Level in dBm expressed as the percentage of the transmitter
signal arriving at the receiver
V PACK Shows the longest time in ms in which the data packets are
lost during a transmission from the transmitter to receiver
RX-VOLT Current operating voltage of thereceiver power supply in Volts
M-RX V Lowest operating voltage of thereceiver power supply since
the last startup in Volts
TMP The thermometer visualizes the current operating temperature
of the receiver
A detailed explication of the values on the left column is available
in the Manual Part 2 on www.graupner.de.
RX–S QUA: 100%
RX–S ST : 100%
TX–dBm: –33dBm
RX–dBm: –33dBm
RX–VOLT:4.8V TMP
V–PACK: 10ms
CH OUTPUT TYPE:ONCE
M–RX V :4.6V +22°C
