GRAUPNER MZ-10 HOTT Operating Instructions

The mz-10 offers a delta wing mix. delta wing mixing combines the function of ailerons with
the function of the elevator to allow precise control of both roll and pitch for delta wing aircraft.
7. Delta Wing
1. Press & hold the DIRECTION button for over 2 sec and then release the button, the transmit-
ter enters Reverse mode.
2. Press the DIRECTION button repeatedly until the delta LED is on, then the transmitter enters
delta mode. If delta mode is not set previously, the LED would blink.
3. Press the MODE button, the LED goes solid and delta wing function is activated.
4. After setting delta wing function, press & hold the DIRECTION button for over 2 sec and then
release the button, the delta LED turns solid green, the delta wing setting is stored to the
transmitter.
2 ailerons function is designed to allow more precise control. you may use 2 separate channels
to control the left and right aileron
If the model features a V-tail instead of a conventional tail, you need to set V-tail.
1. Press & hold the DIRECTION button for over 2 sec and then release the button to enter
reverse mode.
2. Press the DIRECTION button repeatedly until the 2 aile LED is on, then the transmitter enters
2 aile mode. If 2 aile mode is not set previously, the LED would ash.
3. Press the MODE button, the LED goes solid and 2 aile function is activated.
4. After setting 2 aile function, press & hold the DIRECTION button for over 2 sec and then
release the button, 2 aile LED turns solid green and 2 aile setting is stored to the transmitter.
1. Press & hold the DIRECTION button for over 2 sec and then release the button, the transmit-
ter enters reverse mode.
2. After setting of delta and 2 aile according to above described procedure, press & hold the
DIRECTION button for over 2 sec and then release the button. Delta LED and 2 aile LED go
solid green together and V-tail function is activated. Delta LED and 2 aile LED are off after 5
seconds.
8. 2 AILE
9. V-Tail
󱮦
When you bind your transmitter, you are programming the receiver with failsafe defaults.
Graupner/SJ receiver has 4 Failsafe modes: FAILSAFE, HOLD, OFF and STANDARD.
1-1. Switch on the receiver and place transmitter RF TRAIN-
ER SWITCH at normal position. Press and hold the MODE
button and switch on the transmitter. The Graupner/SJ logo
repeat to blink a single red with a single beep, indicating that
you entered the failsafe mode. Every time you press MODE
button at failsafe mode, the 4 modes are changed in turns.
Normal
Pupil
Teacher

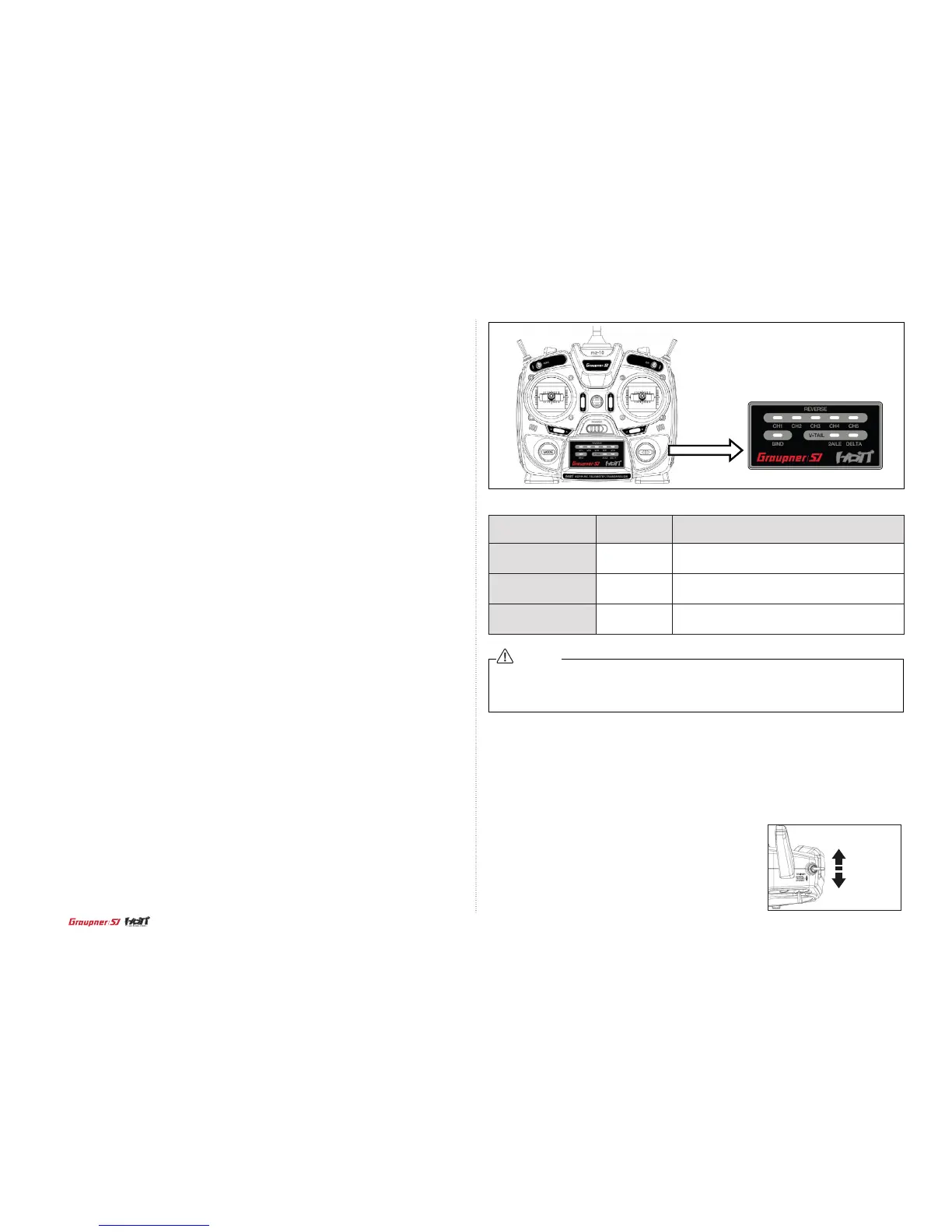

Function setting
LED
Description
DELTA
2 AILE
DELTA and 2 AILE
Green LED On
Delta wing function is activated,
2 Aile and V-tail functions are de-activated.
2 Aile function is activated,
Delta and V-tail functions are de-activated.
V-tail function is activated,
Delta and 2 aile functions are de-activated.
Green LED On
2 Green LED On
NOTICE
You may select only 1 function of delta, 2 aile and V-tail
When mz-10 is switched on, the status LED of each function that you set is turned
on for 5 seconds to indicate which function has been set.
10. FailSafe
10

GRAUPNER MZ-10 HOTT Specifications

General

Modulation	FHSS
Proper use	Airplane, Aircraft
Product type	Remote control
Product color	Black
Antenna length	120 mm
Frequency band	2.4 - 2.4835 GHz
Menu languages	German
Channels quantity	5 channels
Brand compatibility	Any brand
Number of memory records	1
Maximum operating distance	4000 m
Manual	Yes
Operating temperature (T-T)	-10 - 55 °C
Battery type	AA
Number of batteries supported	4
Built-in display	No

Weight and Dimensions

Depth	184 mm
Width	259 mm
Height	96 mm
Weight	630 g
