GRAUPNER MZ-10 HOTT Operating Instructions




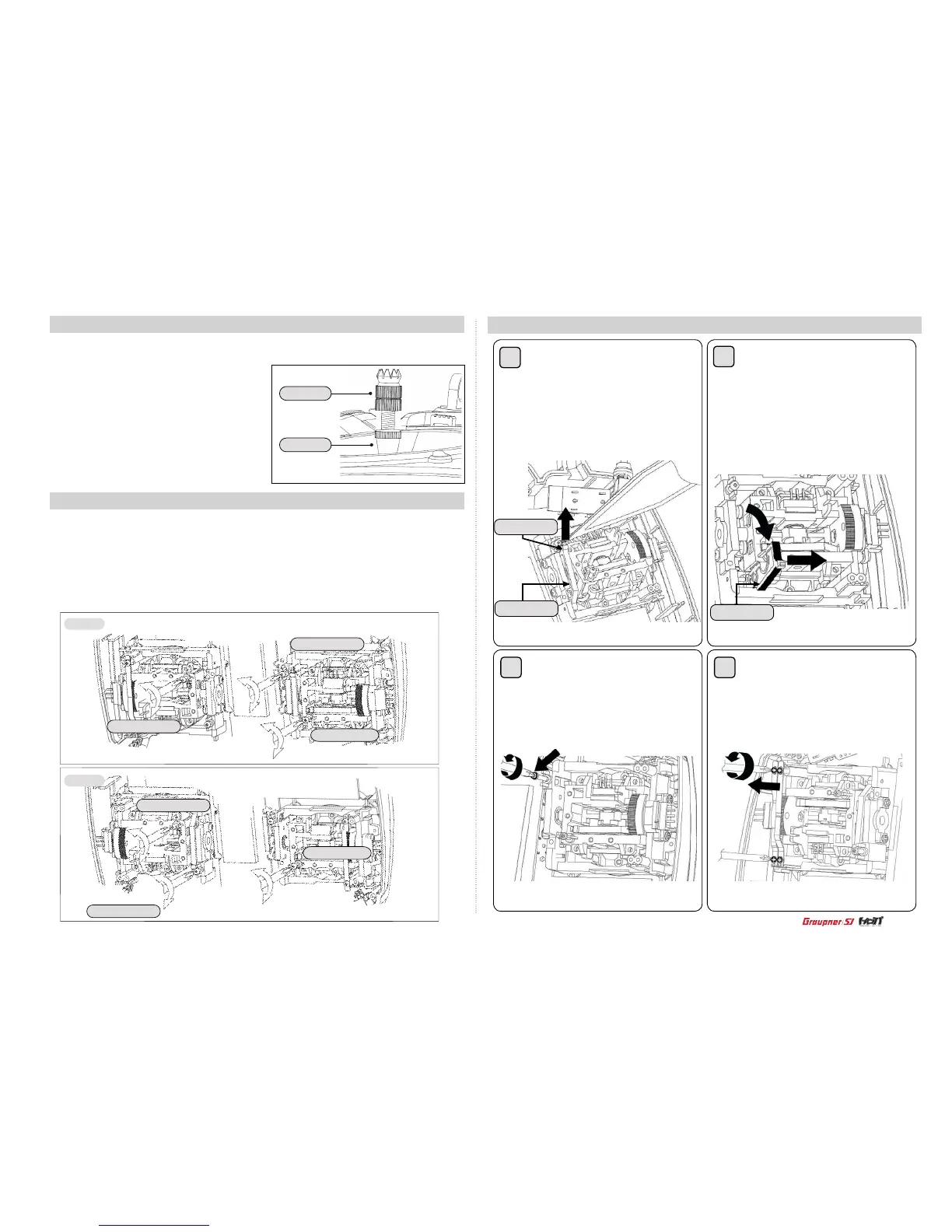

6. ADJUSTBLE STICK LENGTH
7. ADJUSTBLE STICK TENSION
The control stick is consisted of 2pc of stick levers and it allows you to adjust the control
stick’s length as you want.
1. Hold the lever“B”and turn the lever“A”
counter clockwise The lock will be released.
2. Turn the lever“B”and adjust the control
stick’s length as you want. Turn the lever“A”
clockwise, then the lever“A”and“B”are
interlocked and xed.
The mz-10 offers adjustable tension on the throttle, aileron, elevator and rudder sticks.
1. Remove the battery cover and battery form the transmitter.
2. Unscrew the six Philips head screws that hold the transmitter’s rear cover and remove the
rear case.
3. Using a Philips screw driver, adjust the stick tension screw for the desired control. Clock
-
wise to tighten and counter clockwise to loosen.
Lever“B”
Lever“A”
Aileron tension
Aileron tension
Rudder tension
Rudder tension
Elevator tension
Elevator tension
Model 1
Model 2
5
8. Mode exchange of throttle stick for Mode 1 and Mode 2
Unscrew the transmitter’s rear case
and remove the rear case and disas
-
semble the tension spring from the
centering cam in the elevator gimbal
of mode 1 transmitter with tweezers
Unscrew the tension spring control
bolt in the elevator gimbal of mode 1
transmitter
Disassemble the centering cam
form the gimbal
Disassemble 2pcs of leaf spring
in the throttle gimbal of mode 1
transmitter
Tension spring
Centering cam
Centering cam
1
3
2
4

GRAUPNER MZ-10 HOTT Specifications

General

Modulation	FHSS
Proper use	Airplane, Aircraft
Product type	Remote control
Product color	Black
Antenna length	120 mm
Frequency band	2.4 - 2.4835 GHz
Menu languages	German
Channels quantity	5 channels
Brand compatibility	Any brand
Number of memory records	1
Maximum operating distance	4000 m
Manual	Yes
Operating temperature (T-T)	-10 - 55 °C
Battery type	AA
Number of batteries supported	4
Built-in display	No

Weight and Dimensions

Depth	184 mm
Width	259 mm
Height	96 mm
Weight	630 g
