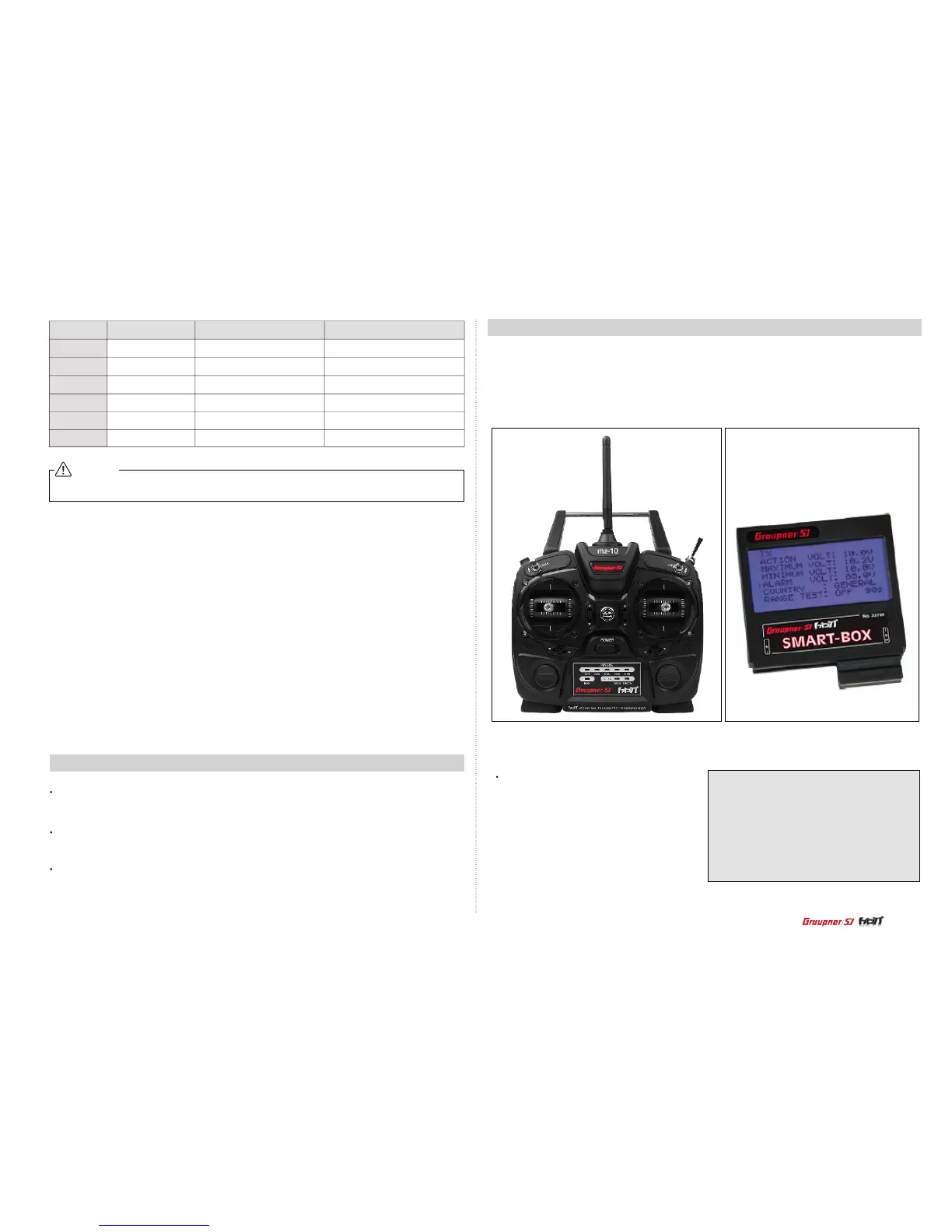

GRAUPNER MZ-10 HOTT Operating Instructions

When using the optional smart box, the transmitter’s functions can be easy to set up and check
the telemetry data. Connect into the DATA socket at the back of the transmitter and switch on the
transmitter.
- ALARM VOLT : Battery low voltage alarm
- COUNTRY : Country setting
- RANGE TEST : ON, OFF
The display of the smart box
T X
ACTION VOLT : 05.9 V
M AXIMUM V OLT : 0 8.0V
M AINIMUM VOLT : 05.9V
A LARM V OL T : 04 .0 V
C OUNT RY : G ENERAL
R ANGE TEST: OFF 90s
SMART BOX
Before each ying session, especially with a new model, it is important to perform a range
check. The mz-10 incorporates a range testing mode which reduces the output power of
the transmitter, allowing a range check.
14. Range testing
NOTICE
After completing the country setting, the shunt connect should be detached.
Beep
1 time
2 times
3 times
5 times
4 times
6 times
Graupner/SJ logo
Solid red
Solid red
Solid red
Blink red
Solid red
Solid red
Mode
Country setting
Country setting
Stick setting
Stick setting
Stick setting
Stick setting
Description
GENERAL
STICK mode 1
STICK mode 2
STICK mode 3
STICK mode 4
FRANCE
1. With the model restrained on the ground, face the model with the transmitter in your
normal ying position.
2. After binding the transmitter to the receiver, press & hold BIND button until entering the
range testing mode. The beep is repeated for 90 seconds in the range testing mode.
3. Walk over 50 meters away from the model with controlling the transmitter sticks constant-
ly and check whether the model is operating normally. You should have total control of
the model with the trainer switch pulled.
4. If control issues exist within 50 meters, the system should not be used. And contact your
local Service Department of Graupner/SJ.
The transmitter repeats that Graupner/SJ logo blinks 3 times red with 3 times beeps.
The transmitter repeats that Graupner/SJ logo blinks 4 times red with 4 times beeps.
When the battery voltage drops below 4.5 volts, the transmitter repeats that Graupner/SJ
logo blinks 5 times red with 5 times beeps. When using the smart box, the alarm range
could be set 4.0V ~15.0V
The signal reception of the receiver is not good
The signal reception of the transmitter is not good
Battery low voltage alarm
ERROR
13

GRAUPNER MZ-10 HOTT Specifications

General

Modulation	FHSS
Proper use	Airplane, Aircraft
Product type	Remote control
Product color	Black
Antenna length	120 mm
Frequency band	2.4 - 2.4835 GHz
Menu languages	German
Channels quantity	5 channels
Brand compatibility	Any brand
Number of memory records	1
Maximum operating distance	4000 m
Manual	Yes
Operating temperature (T-T)	-10 - 55 °C
Battery type	AA
Number of batteries supported	4
Built-in display	No

Weight and Dimensions

Depth	184 mm
Width	259 mm
Height	96 mm
Weight	630 g
