The mz-10 offers 2 modes of GENERAL and FRANCE. You need the France RF setting to
comply with France regulations in FANCE. France RF setting should only be turned on
when operating your transmitter in France outdoors.
1. Insert the supplied shunt connector into the DATA socket at the back of the transmitter and
switch on the transmitter, The Graupner/SJ logo turns solid red with a single beep, indicating
that the country setting is in GENERL mode that is preset at the factory.
2. Press MODE button, The Graupner/SJ logo blinks red with twice beeps, indicating that the
country setting is in FRANCE mode.
3. Press MODE button for over 2 sec, France RF setting is completed with a beep, you don’t
need the country setting of the receiver.

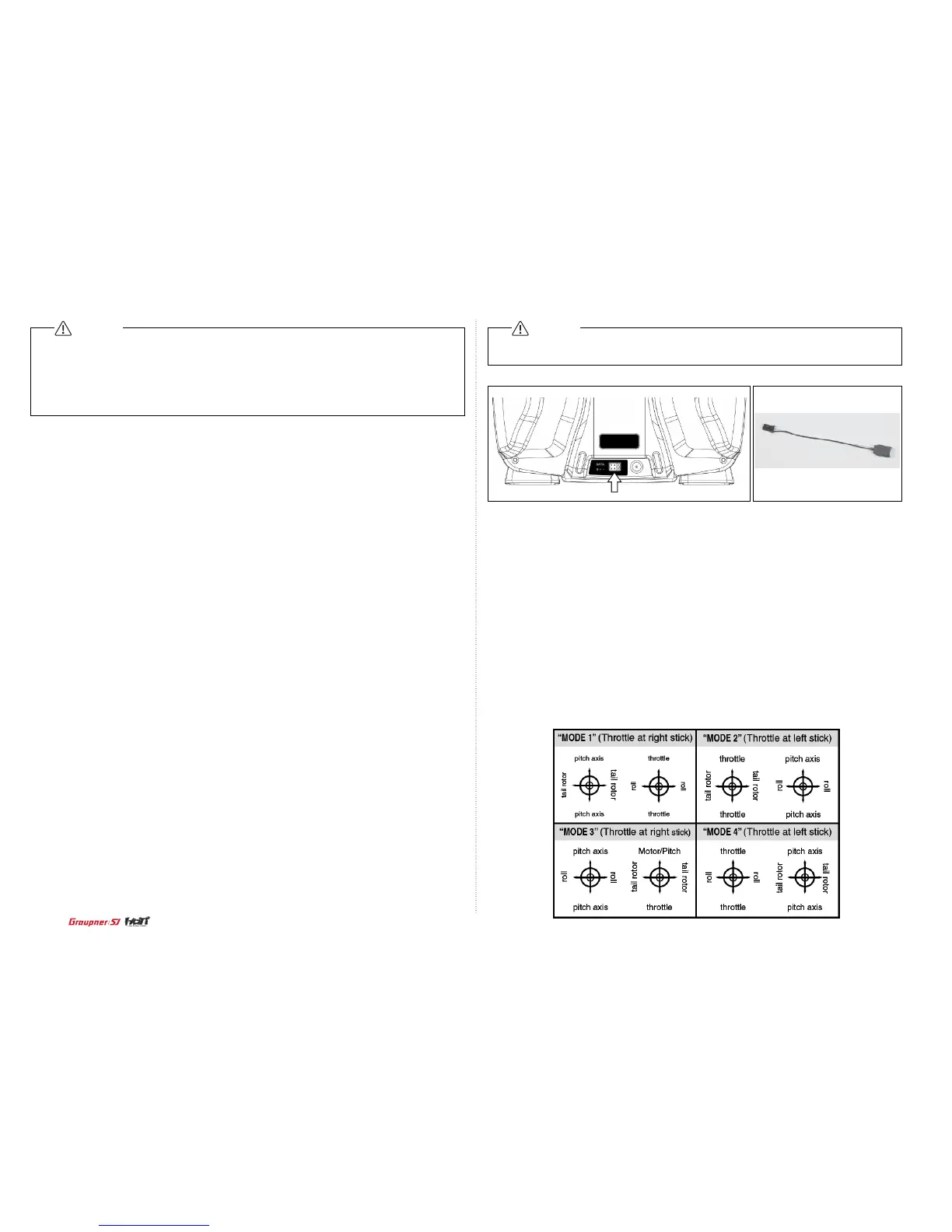

The mz-10 has four stick modes of a xed wing model on the two dual axis sticks. The primary
functions are aileron, elevator, rudder and throttle (or airbrakes).
1. Enter the France mode in country setting after Insert the supplied shunt connector into the
data socket at the back of the transmitter.
2. Press MODE button once more, The Graupner/SJ logo blinks red with 3 times beeps, indi-
cating that the stick setting is in the stick mode 1 that is preset at the factory. Each time you
press MODE button, the beep is increased one at a time and the mode is changed in turns.
3. After selecting the desired the stick mode, press MODE button for over 2 sec, the Stick
setting is completed with a beep.
2 - 1. Move transmitter’s RF TRAINER SWITCH to NORMAL position. Bind the pupil transmitter
to the pupil receiver.
2 - 2. Set the transmitter to PUPIL mode, the connection would be lost between the transmitter
and receiver.
2 - 3. Set the another transmitter to TEACHER mode.
2 - 4. Press & hold the MODE button of the pupil transmitter until the beep rst and then press
& hold the MODE button of the teacher transmitter until the beep as well. Now the teacher
transmitter to pupil transmitter has been bound. The teacher transmitter can control
all channels and if RF TRAINER SWITCH of the teacher transmitter would be moved
to PUPIL position, the pupil transmitter can control all channels.
2) Trainer Operation
12. Country setting
13. Stick setting
After completing the normal setting, Graupner/SJ logo turns solid red in the General
mode and blinks red in the France mode.
Teacher setting: The Graupner/SJ logo repeats to blink twice red, 2 beeps sounds twice.
Pupil setting: The Graupner/SJ logo repeats to blink a single red, 1 beep sounds twice.
NOTICE NOTICE
After completing the country setting, the shunt connect should be detached.
12
