GRAUPNER MZ-10 HOTT Operating Instructions

6

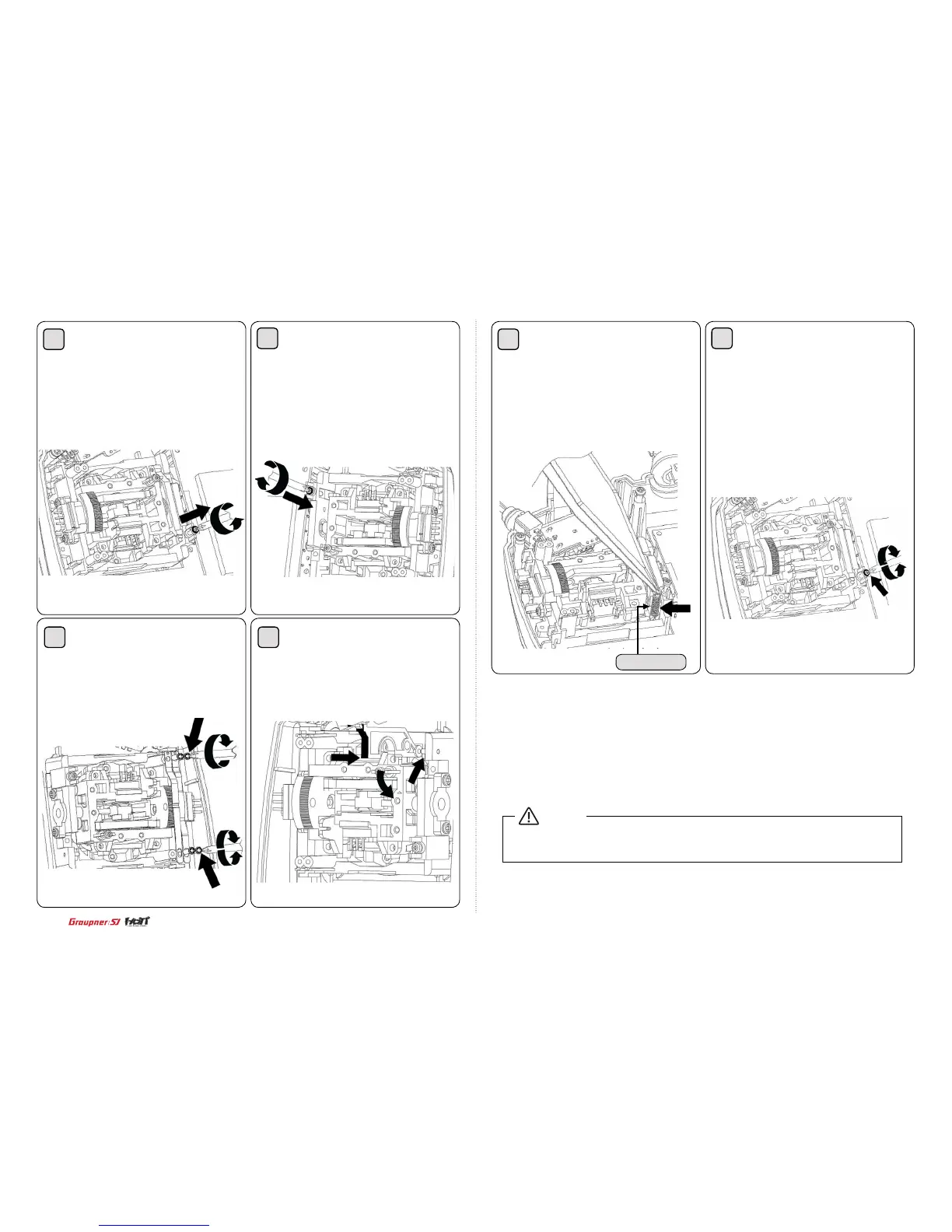

Assemble the transmitter’s rear case and switch to mode 2 from mode 1 at Stick mode
page in the transmitter programming setup section according to the manual.
5 9
7
6 10
8
Make sure to test all functions are normally operated in mode 2 before ying
NOTICE
Unscrew the tension spring control
bolt in the elevator gimbal of mode
1 transmitter
Assemble the centering cam into the
throttle gimbal of mode 1 transmitter and
set the spring in the center control part and
the centering cam with tweezers
Assemble 2pcs of disassembled leaf
spring from the throttle gimbal of
mode 1 transmitter into the elevator
gimbal and adjust the bolt for the
desired control
Screw the disassembled bolt from
the throttle gimbal of mode 1 trans
-
mitter into the elevator gimbal to x
the controller
Screw the disassembled tension
control bolt from the elevator gimbal
of mode 1 transmitter into the throttle
gimbal and adjust the bolt for the
desired control
Assemble the disassembled centering
cam form the elevator gimbal of mode 1
transmitter into the throttle gimbal pin
Tension spring

GRAUPNER MZ-10 HOTT Specifications

General

Modulation	FHSS
Proper use	Airplane, Aircraft
Product type	Remote control
Product color	Black
Antenna length	120 mm
Frequency band	2.4 - 2.4835 GHz
Menu languages	German
Channels quantity	5 channels
Brand compatibility	Any brand
Number of memory records	1
Maximum operating distance	4000 m
Manual	Yes
Operating temperature (T-T)	-10 - 55 °C
Battery type	AA
Number of batteries supported	4
Built-in display	No

Weight and Dimensions

Depth	184 mm
Width	259 mm
Height	96 mm
Weight	630 g
