Installation (using Optional Turbo Timer Harness)
Important!
A bad ground connection can lead to a mechanical failure, therefore
please attach the ground to a non-painted surface of the vehicles
steel body.

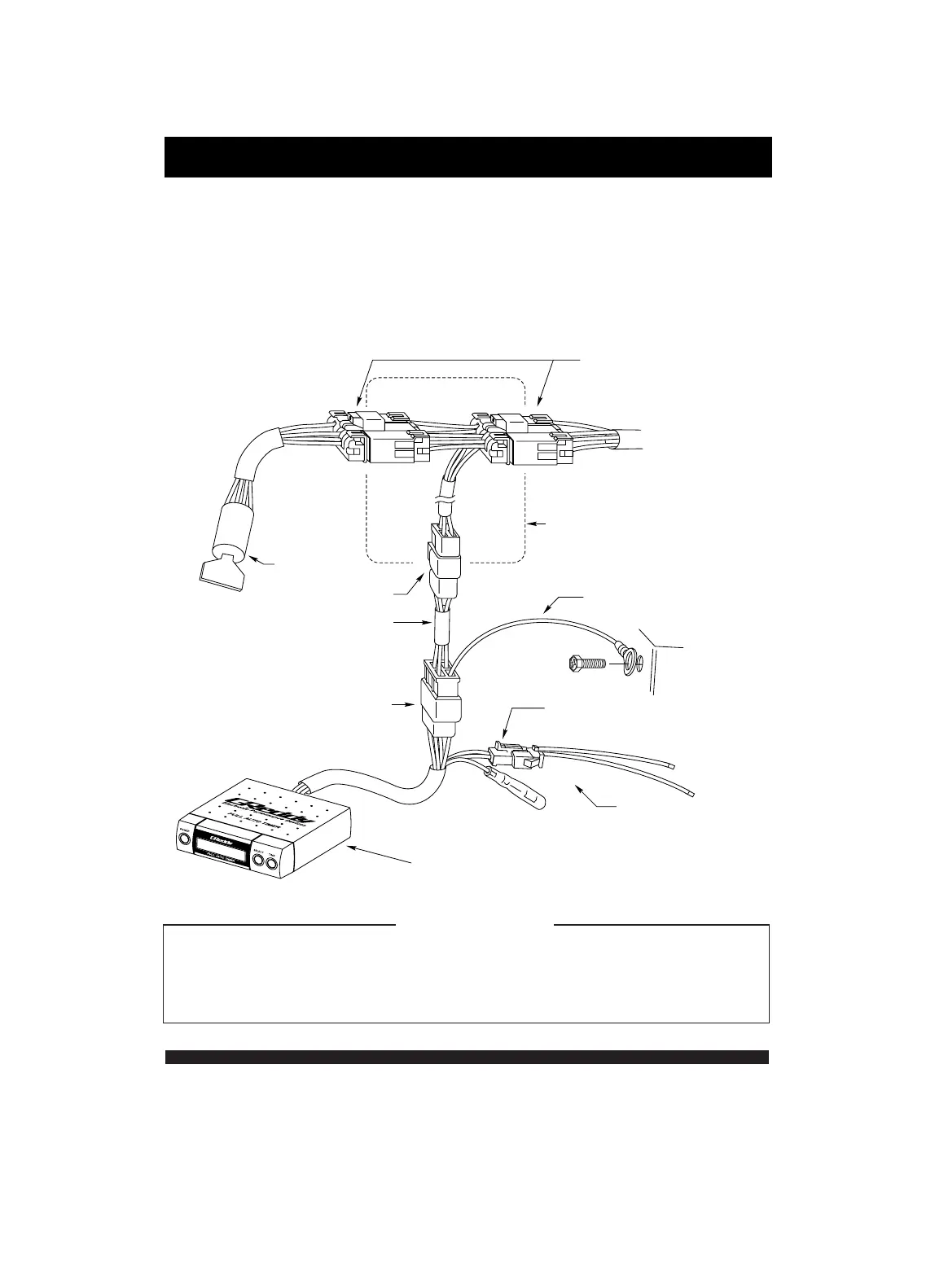

(1) Follow the key switch to it’s electrical connector, then unplug the
harness and place the Optional Turbo Timer harness in-line with the
key switch harness.
(2) Connect the supplied power harness in between the 3-pin connector
of the optional harness and the 4-pin connector of the Turbo Timer.
(3) Then connect the black wire with the loop connecter to a good
chassis ground.( to steel body)
2
key switch connector
power harness
key cylinder
4-pin connector
3-pin connector
parking / speed
harness
Turbo Timer
ground wire.
Optional GReddy
Turbo Timer Harness
(sold separately)
To Next Page
