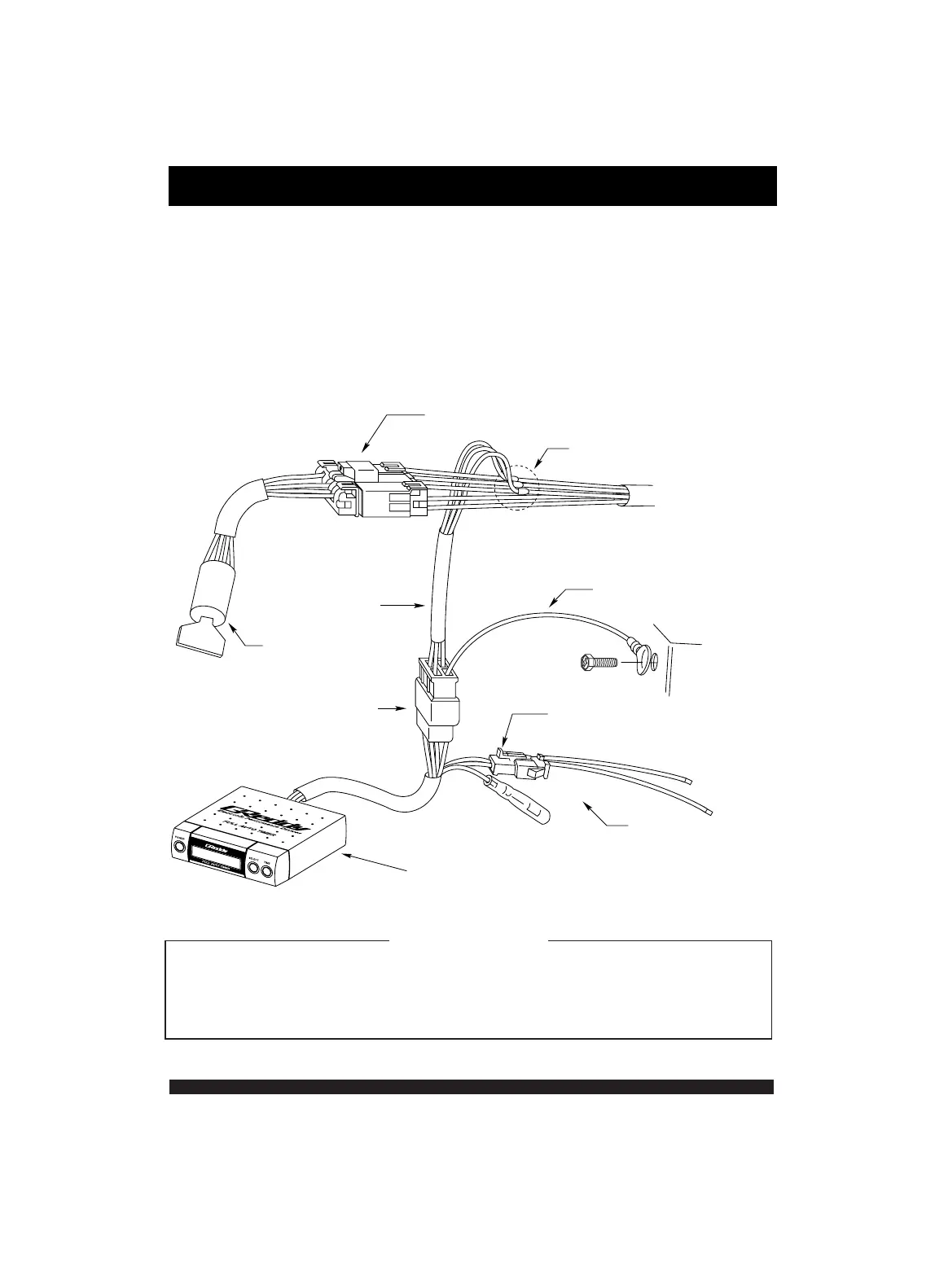

Installation
(without Optional Turbo Timer Harness)
(1) Follow the key switch to it’s electrical connector, then unplug the
harness. Find the appropriate wires with either a factory service
manual or a volt meter.
(see 2.3 for wiring)
(2) Cut off the 3-pin connector on power harness. Then splice and solder
the appropriate wires to the power harness.
(be sure to cover connections)
(3) Then connect the black wire with the loop connecter to a good
chassis ground.( to steel body)
(4) Reconnect the key switch harness.
Important!
A bad ground connection can lead to a mechanical failure, therefore
please attach the ground to a non-painted surface of the vehicles
steel body.
power harness
key switch connector
splice and solder
the appropriate lines
key cylinder
ground wire.
4-pin connector
2-pin connector
Turbo Timer
parking / speed
harness
3
