GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
374

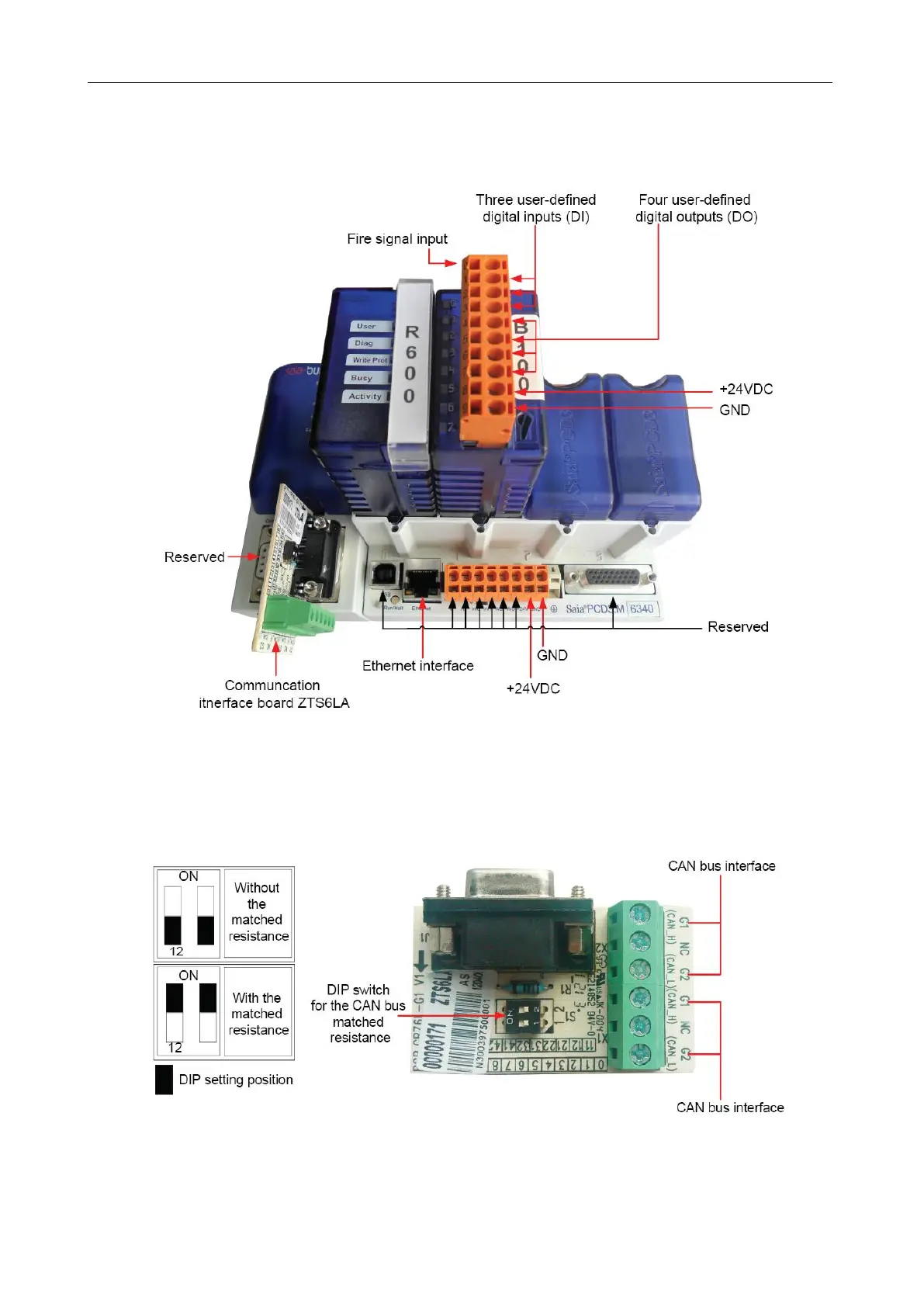

2.2.4.2 Interfaces and Indicating LEDs
(1)Interfaces
Interfaces as shown in the figure below are available.
(2)Power Interfaces
Power supply is input through the wiring terminals. Power Supply: 24VDC -20/+25% incl. 5% ripples
as per EN/IEC 61131-2, 175mA/4.2W normal, 500mA/12W maximum.
(3)Communication Interface Board
