Gree GMV-120WM/B-F Service Manual

GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
377
Start
Self-diagnosis for approx. 1 sec. after switching on or after a Restart
Run
Normal processing of the user program after Start. Where a programming unit is
connected via a PCD8.K11x in PGU mode
(e.g. PG5 in PGU mode), the CPU automatically goes into the Stop state and not
the Run state; this is for safety reasons
Run conditional
Conditional Run state. A condition has been set in the debugger
(Run until…), which has not yet been met
Run with error
Same as Run, but with an error message
Run cond. with
error
Same as conditional Run, but with an error message
Stop
The Stop state occurs in the following cases:
 Programming unit in PGU mode connected when the CPU was switched on
 PGU stopped by programming unit
 Condition for a COND.RUN has been met
Stop with error
Same as Stop, but with an error message
Halt
The Halt state occurs in the following cases:
 Halt instruction processed
 Serious error in user program
 Hardware fault
 No program loaded
 no communication module on an S-Bus PGU or Gateway Master port
System
diagnostics
If the PLC doesn‗t go to RUN after 2 minutes, you have to send it for repair
Reset
The RESET state has the following causes:
 Supply voltage too low
 Firmware not starting up

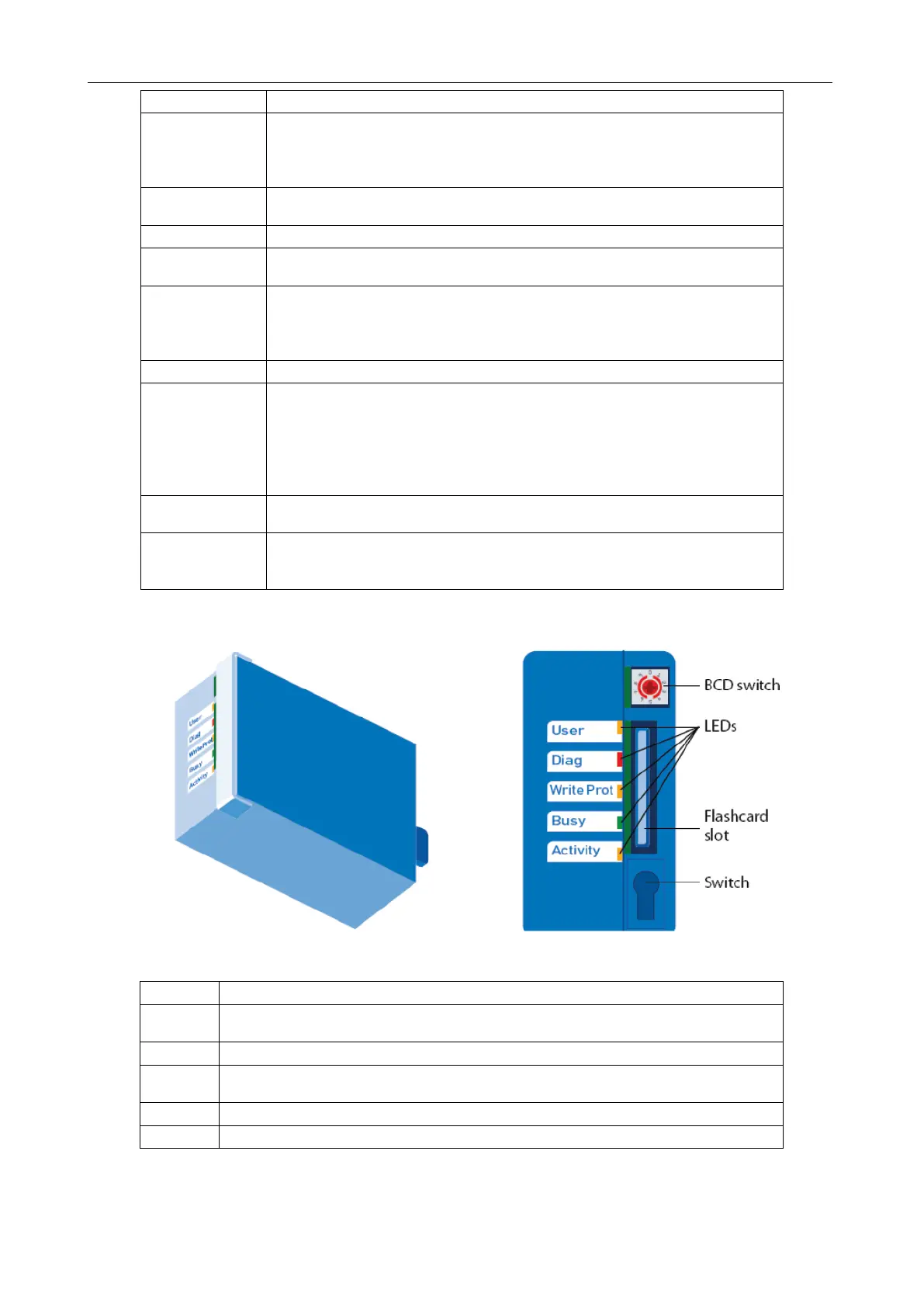

(3) PCD3.R600 Indicating LED
The memory module has 5 indicating LEDs:
LED
Meaning
User
User LED, set by the user program with the base address of the module (SET = off; RES
= on)
Diag
Flashes when there is an error message
Write Prot
Active when a "write-protected" condition is detected (read-only SD switch, BCD switch
or software)
Busy
Do not remove the module when this LED is on.
Activity
Works as with a hard disk drive; flashes when data being processed
NOTE: Do not remove the card when the "Busy" LED is on.
