GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
380

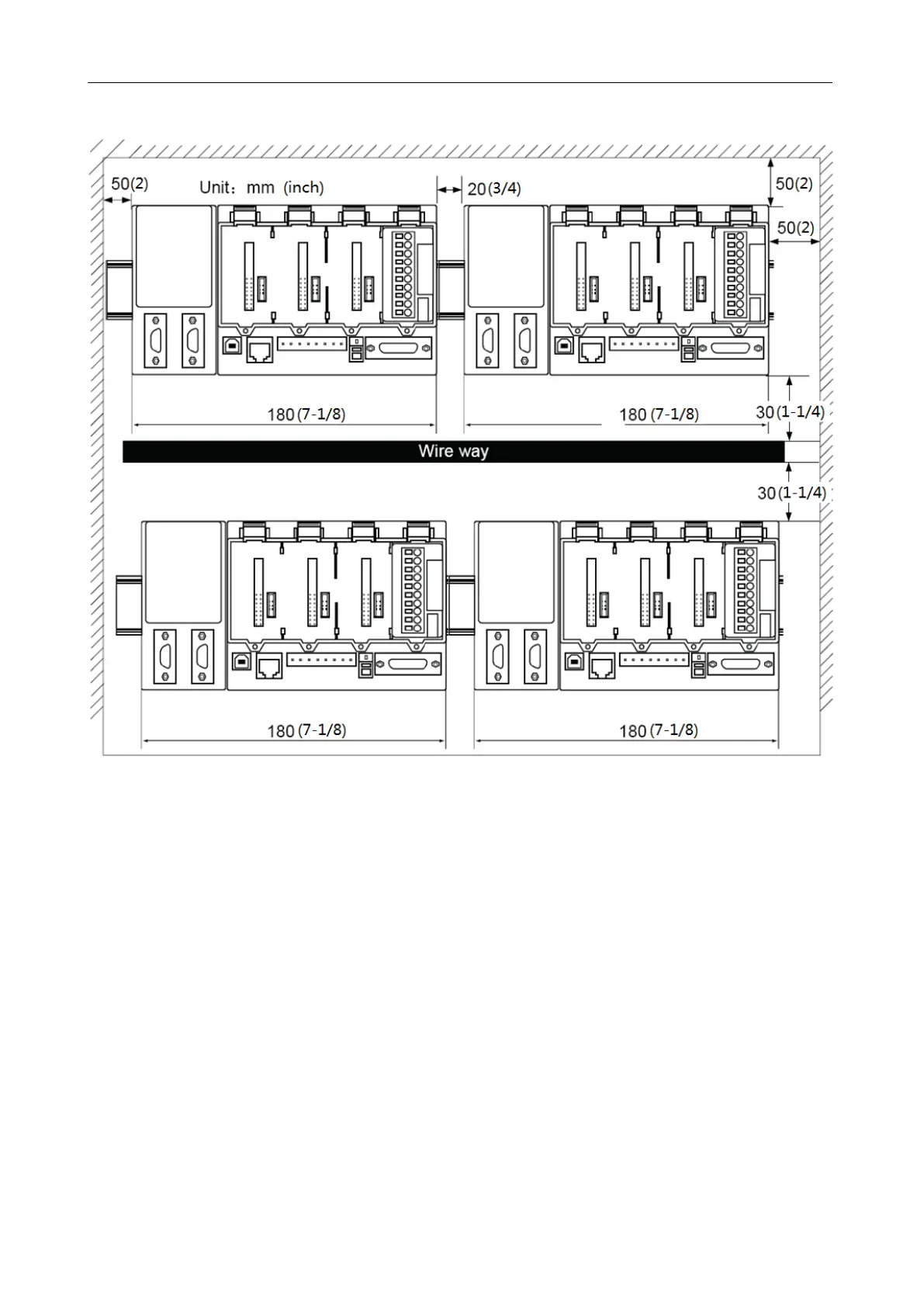

The minimal required installation space is as shown in the figure below.
4. BACnet Gateway Topology
As shown in the topological diagram below, the whole system consists of the internal network of the
air conditioning units and BACnet/IP network. Through BACnet gateways, communication data can be
exchanged.
