GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
381

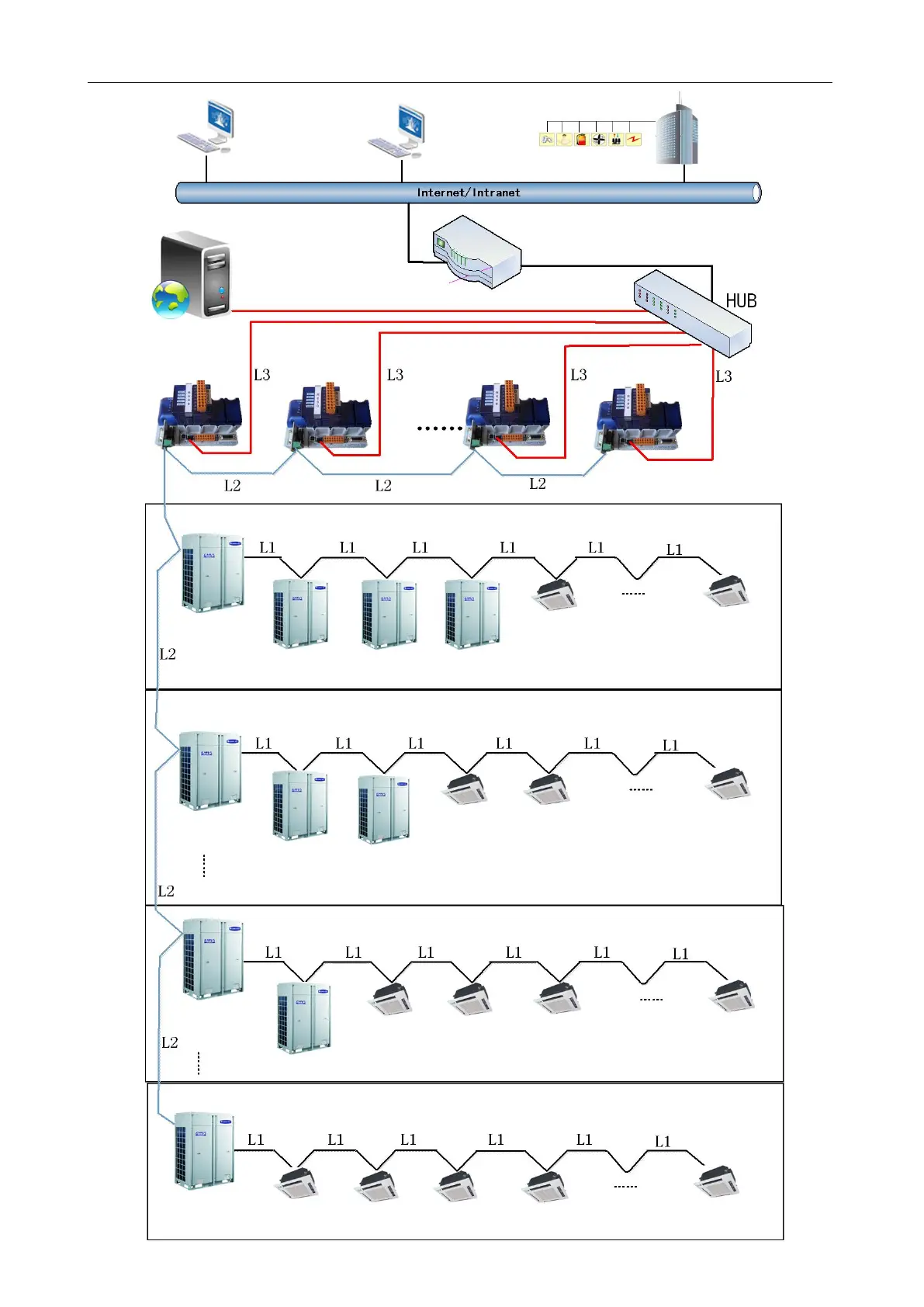

Gree Web-based
Remote Monitoring and
Control System (client)
Gree Web-based
Remote Monitoring and
Control System (client)
BMS system
Other device
Lighting
Fire-fighting
Ventilation
Lift
Power distribution
Router
Gree Web-based
Remote Monitoring
and Control System
(server side)
BACnet gateway 1
BACnet gateway n
System 1: Four outdoor units compose this ODU system
Unit 1
Master outdoor
unit 1
Slave outdoor
unit 2
Slave outdoor
unit 3
Slave outdoor
unit 4
Indoor unit
Unit 2
System 2: Three outdoor units compose this ODU system
Master outdoor
unit 1
Slave outdoor
unit 2
Slave outdoor
unit 3
Indoor unit Indoor unit
System 3: Two outdoor units compose this ODU system
Master outdoor
unit 1
Slave outdoor
unit 2
Indoor unit Indoor unit
Indoor unit
Unit 1
Master outdoor
unit 1
Indoor unit
Indoor unit
Indoor unit
Indoor unit
System 4: One outdoor unit composes this ODU system
Indoor unit
Indoor unit
Indoor unit
Indoor unit
