Gree GMV-24WL/C-T Service Manual

GREE DC Inverter Side Discharge VRF Ⅱ for North America
130

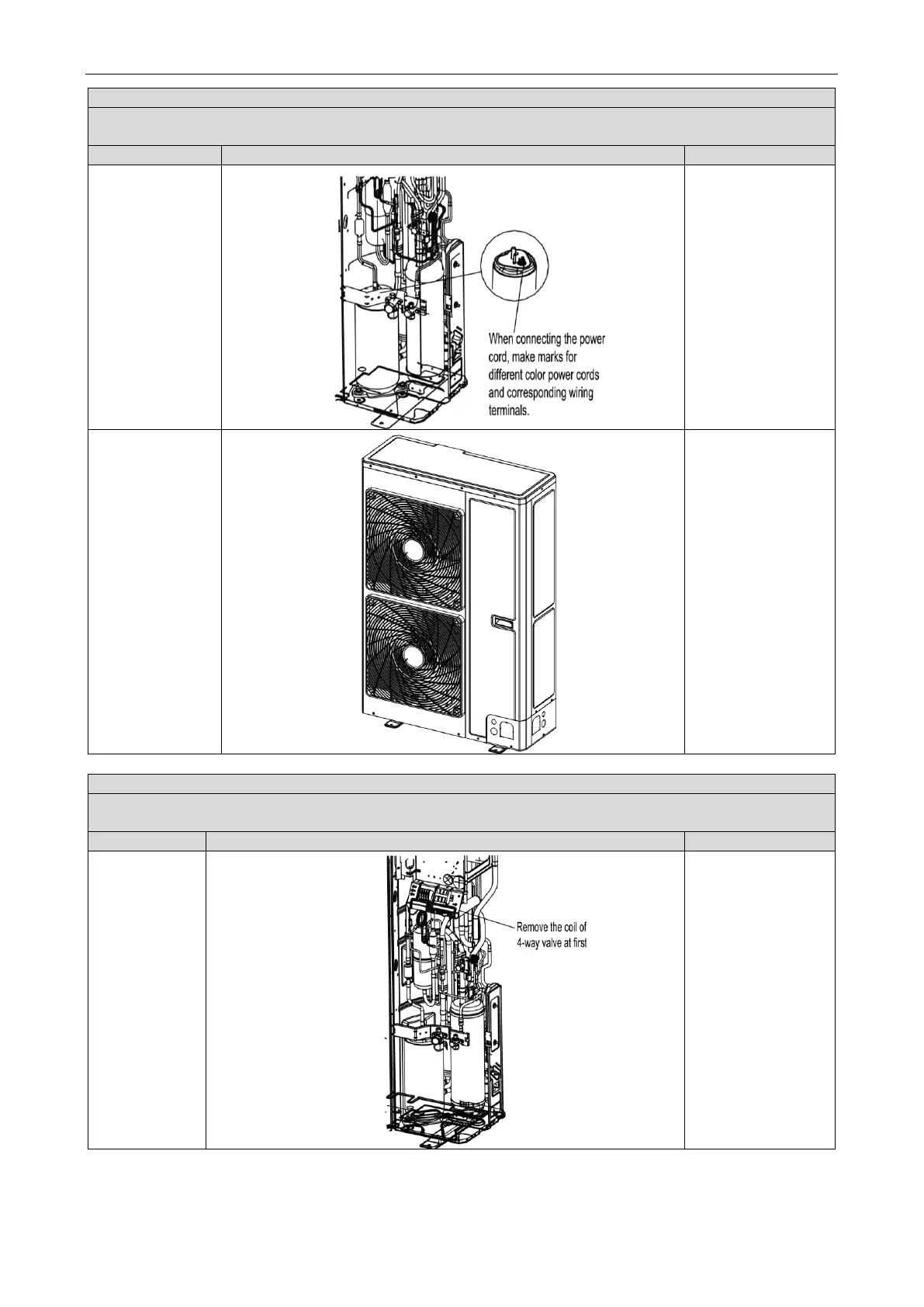

Removal operation of compressor
Remark: Before removing the compressor, please make sure that there’s no refrigerant inside the pipeline and the
power is disconnected.
Process
Operation Instruction
7. Connect the
power cord of
compressor well
Loose screws fixing
the power cord with
screwdriver
conenct the power
cord well again
Note: When
connecting the power
cord, make marks for
different color power
cords and
corresponding wiring
terminals.
8. Check and
open the upper
cover plate
Check whether the
pipeline is connected
well
Check whetehr all
parts and connection
wires are connected
well
If there’s no problem
after checking, install
front and rear cover
plates.
Removal operation for 4-way valve
Remark: Before removing the 4-way valve, please make sure that there’s no refrigerant inside the pipeline of system
and then power is disconnected.
Process
Operation Instruction
1.Disconnect
the coil of 4-way
valve from the
4-way valve
Remove the coil of
4-way valve at first
