5.2 Removal of key parts
5.2.1 GMV-120WL/A-T, GMV-140WL/A-T, GMV-160WL/A-T ˈ
ˈ
GMV-120WL/A-X,GMV-140WL/A-X,GMV-160WL/A-X,GMV-120WL/C-T,GMV
-140WL/C-T,GMV-160WL/C-T
ˈ
GMV-120WL/C-X,GMV-140WL/C-X,GMV-160WL/C-X
ˈ
GMV-H224WL/A-X,
GMV-H280WL/A-X, GMV-H335WL/A-X ,
GMV-224WL/C-X,GMV-280WL/C-X,GMV-335WL/C-Xseries unit
Removal operation for panel
Remark: Before removing the panel, please make sure that the unit is disconected with the power
Process
Operation Instruction

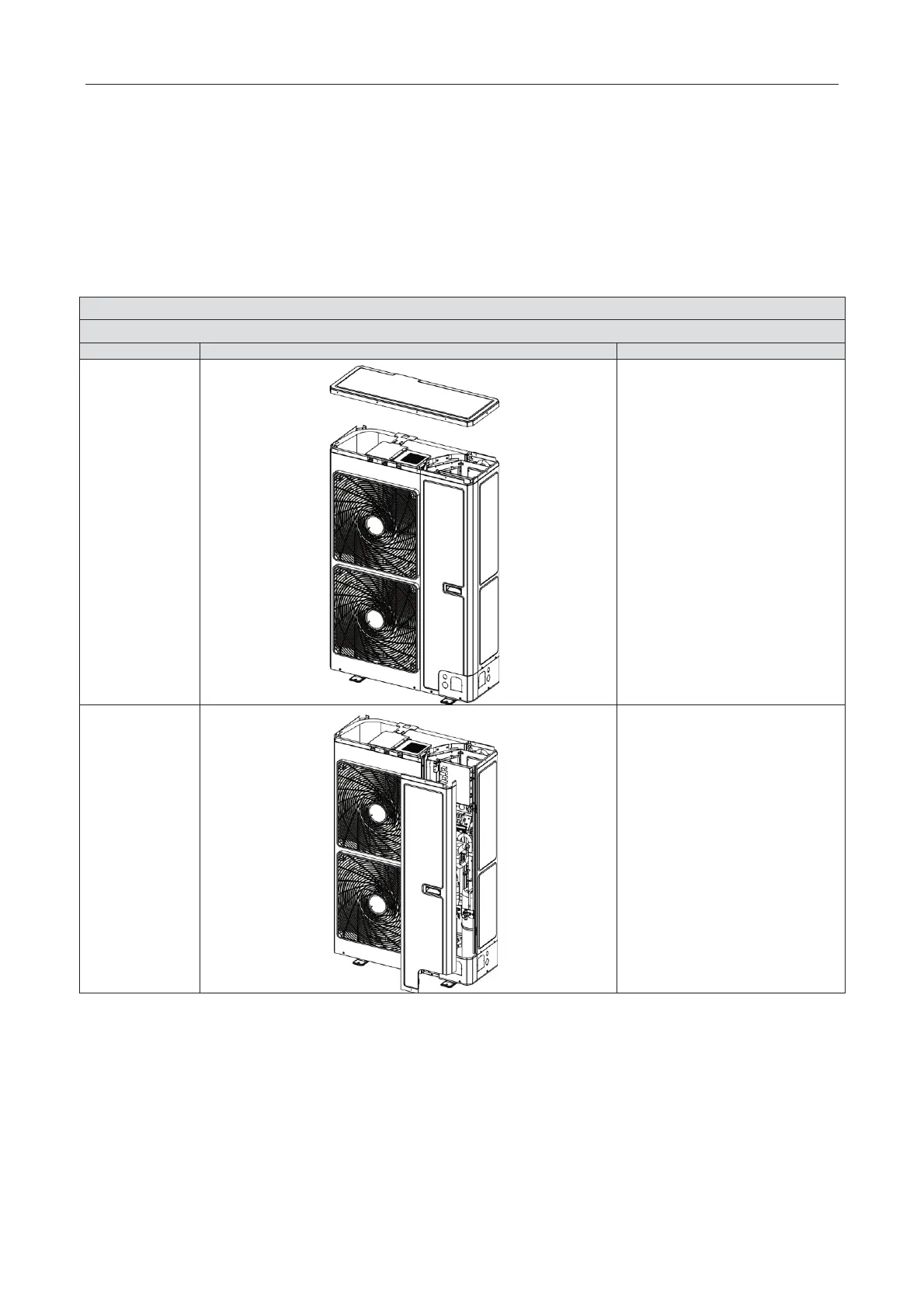

1)
Remove top
cover
● Loose the screws fixing the top
cover with screwdriver
● Hold the top cover upwards
and then put it on the floor flatly
2
)
Remove front
side plate
sub-assy
● Loose the screw fixing the front
side plate with screwdriver
● Hold the front side plate
upwards and then put it on the
floor flatly
