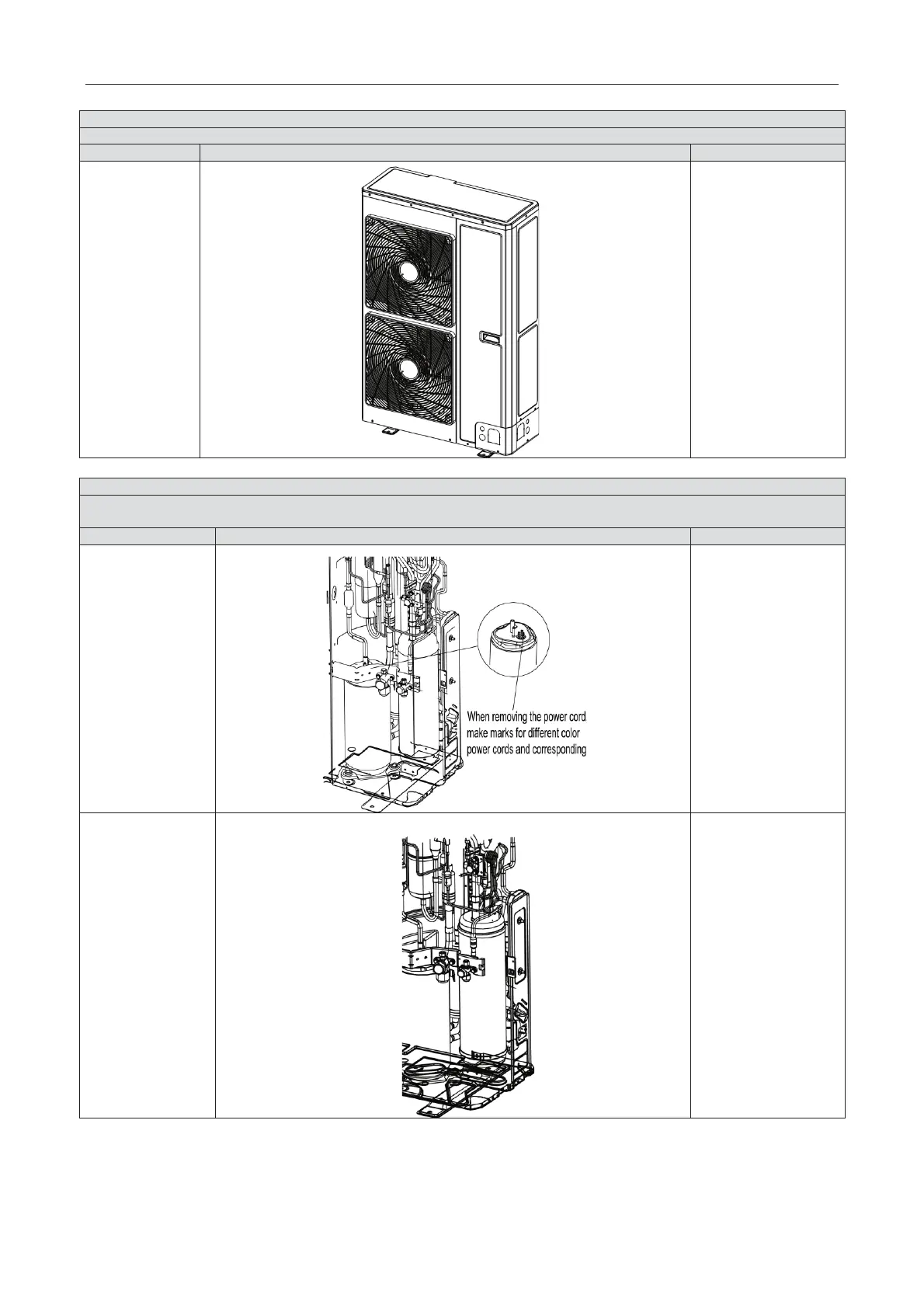

Removal operation for blade
Remark: Before removing the motor, please make sure that the unit is disconnected with the power.
Process
Operation Instruction
5
)
Assemble unit
● Assemble the unit in
the the converse
sequence
Removal operation of compressor
Remark: Before removing the compressor, please make sure that there’s no refrigerant inside the pipeline and the power
is disconnected.
Process
Operation Instruction
1
)
Remove wiring
cover of
compressor
● Loose screws fiixng
the compressor with
screwdriver
● Then pull out the
power cord
Note: When removing
the power cord, make
marks for different
color power cords and
corresponding wiring
terminals for wrong
terminal.
2)
Disconnect
compressor and
connected pipeline
● Weld suction pipe
and discharge pipe of
compressor
● then pull out
the
connection pipe from
the compressor
Note: During welding
process, do not let the
flame burn out other
parts.
