Gree GMV-80WL/A-T

GREE DC Inverter Multi VRF System II Service Manual
161
7) Model: GMV-120WL/C-XǃGMV-140WL/C-XǃGMV-160WL/C-X

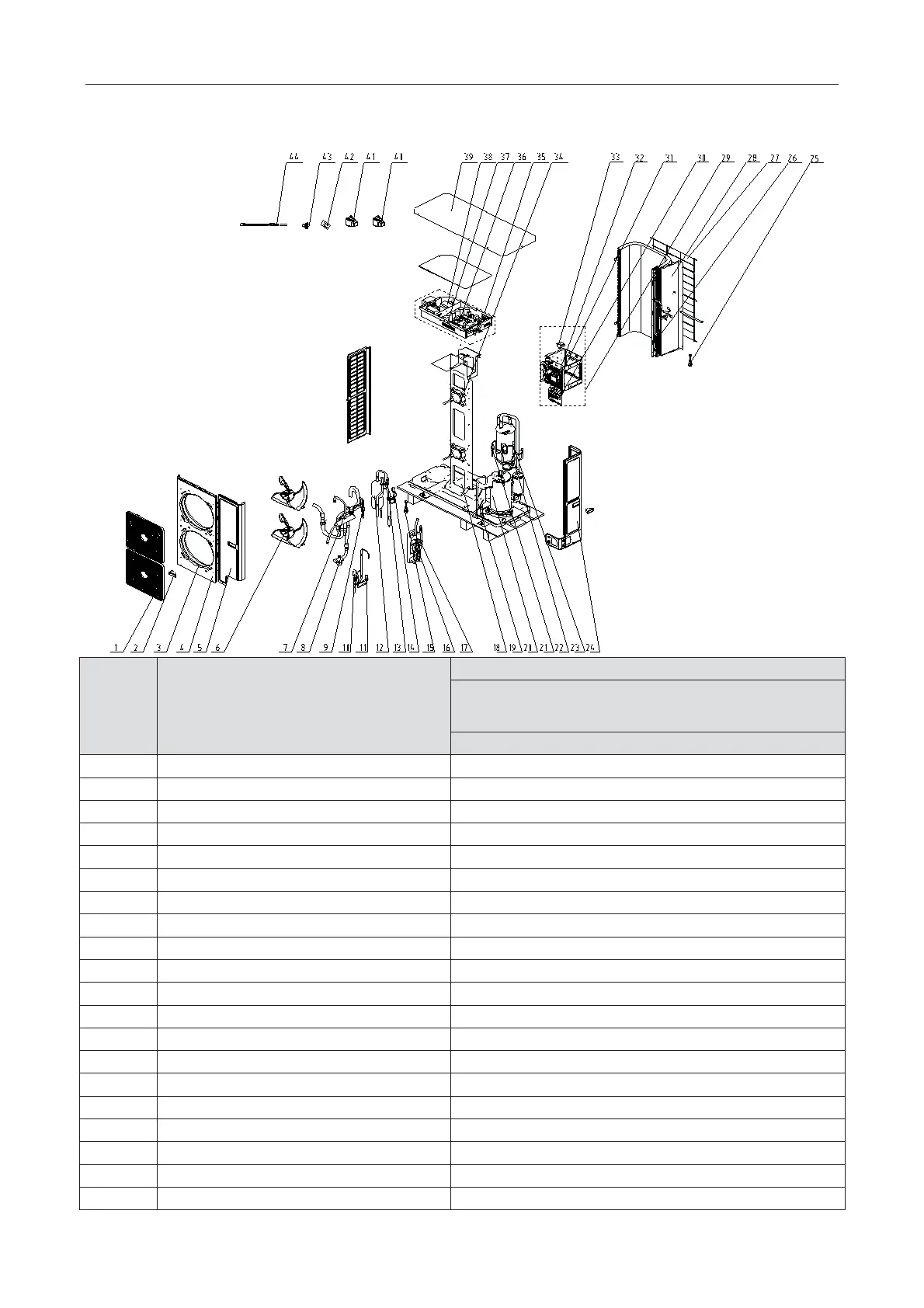

Exploded view
NO.
Name of Part
GMV-120WL/C-X
ǃ
GMV-140WL/C-X
ǃ
GMV-160WL/C-X
CN850W0470
CN850W0480
CN850W0490
Quantity
1
Front Grill
2
2
Handle
1
3
Diversion Circle
1
4
Cover
2
5
Front Side Plate
1
6
Axial Flow Fan
2
7
4-way Valve
1
8
Small Valve
2
9
Strainer
1
10
Electric Expand Valve Fitting
1
11
Discharge Charge Valve
1
12
Oil Separator
1
13
Nozzle for Adding Freon
1
14
High Pressure Circuit Breaker
1
15
Pressure Sensor(High)
1
16
Strainer
1
17
Large valve
1
18
Plate-type Heat Exchanger
1
19
Supporter
1
20
Compressor and Fittings
1
