Gree GMV-ND07PLS/A-T(U) User Manual

GREE Multi Variable Air Conditioners Indoor Unit
242

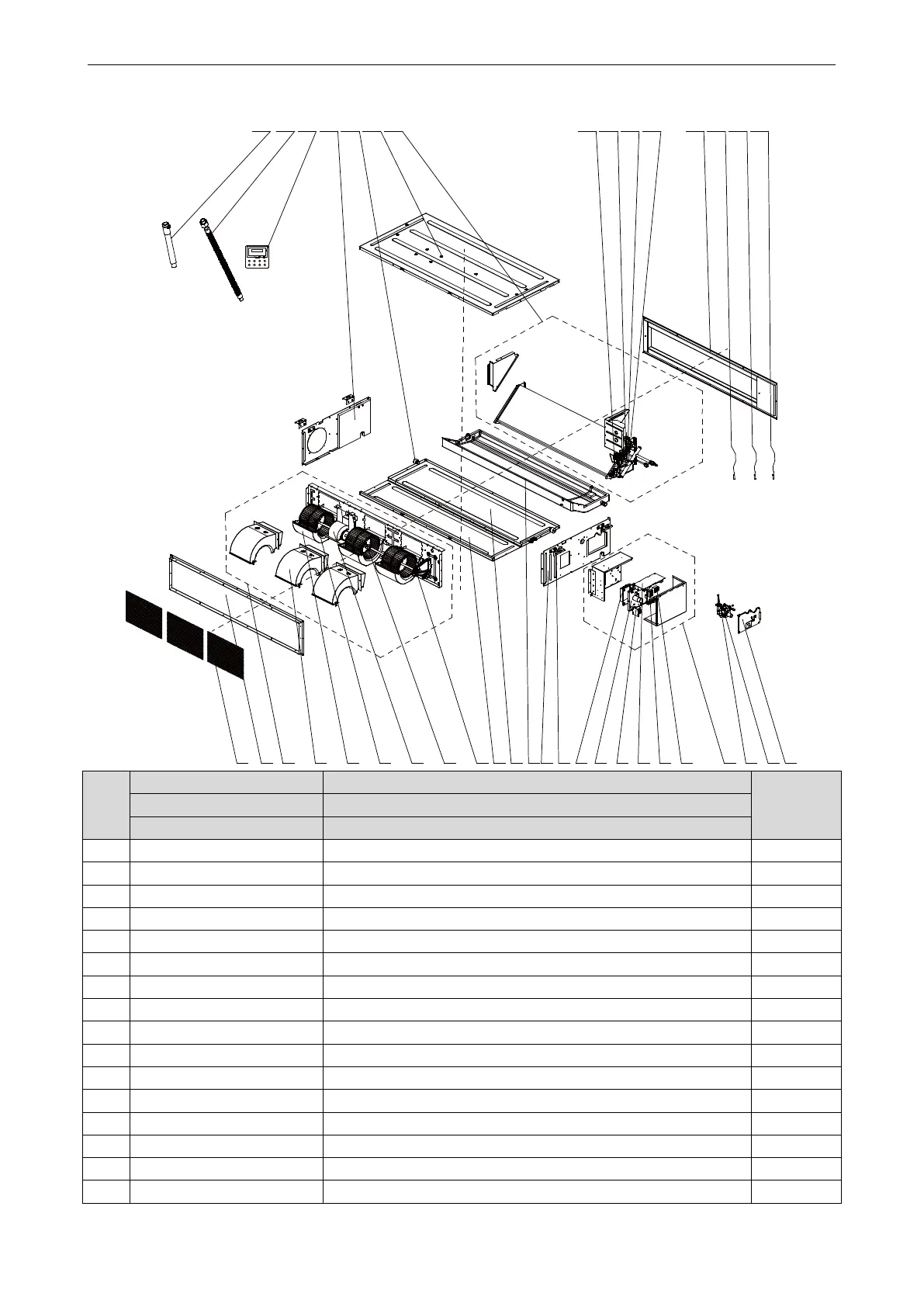

Exploded View of GMV-ND48PHS/B-T(U) / GMV-ND54PHS/B-T(U):
2
3 4 5 6 7 8
12
28293031
343536
15 16
17 18 19
21 22
23
9 10 11
24
32
33
27 26 25
严 禁 在 潮 湿 场
所 使 用
3738
13
14
201
39
NO.
Model
GMV-ND48PHS/B-T(U) / GMV-ND54PHS/B-T(U)
Qty.
Product Code
CM810N0820/CM810N0760
Part Name
Part Code
1
Filter Sub-Assy
111001000052
3
2
Return Air Frame Sub-Assy
017026000003
1
3
Centrifugal Fan Assy
000052000029
1
4
Propeller Housing(Upper)
26905200078
3
5
Propeller Housing(Lower)
26905200079
3
6
Centrifugal Fan
10455200003
3
7
Brushless DC Motor
1570940000801
1
8
Joint Slack
73018731
1
9
Fan Bearing
76512210
1
10
Cover Plate(Air return)
01265200123
1
11
Bottom Cover Plate
01265200125
1
12
Foam Sub-Assy(Water Tray)
12505200021
1
13
Left Side Plate Assy
01314100118
1
14
Hook
02112466
4
15
Radiator
49018000068
1
16
Main Board
30221000033
1
