Multi Variable Air Conditioners Duct Type Indoor Unit
9

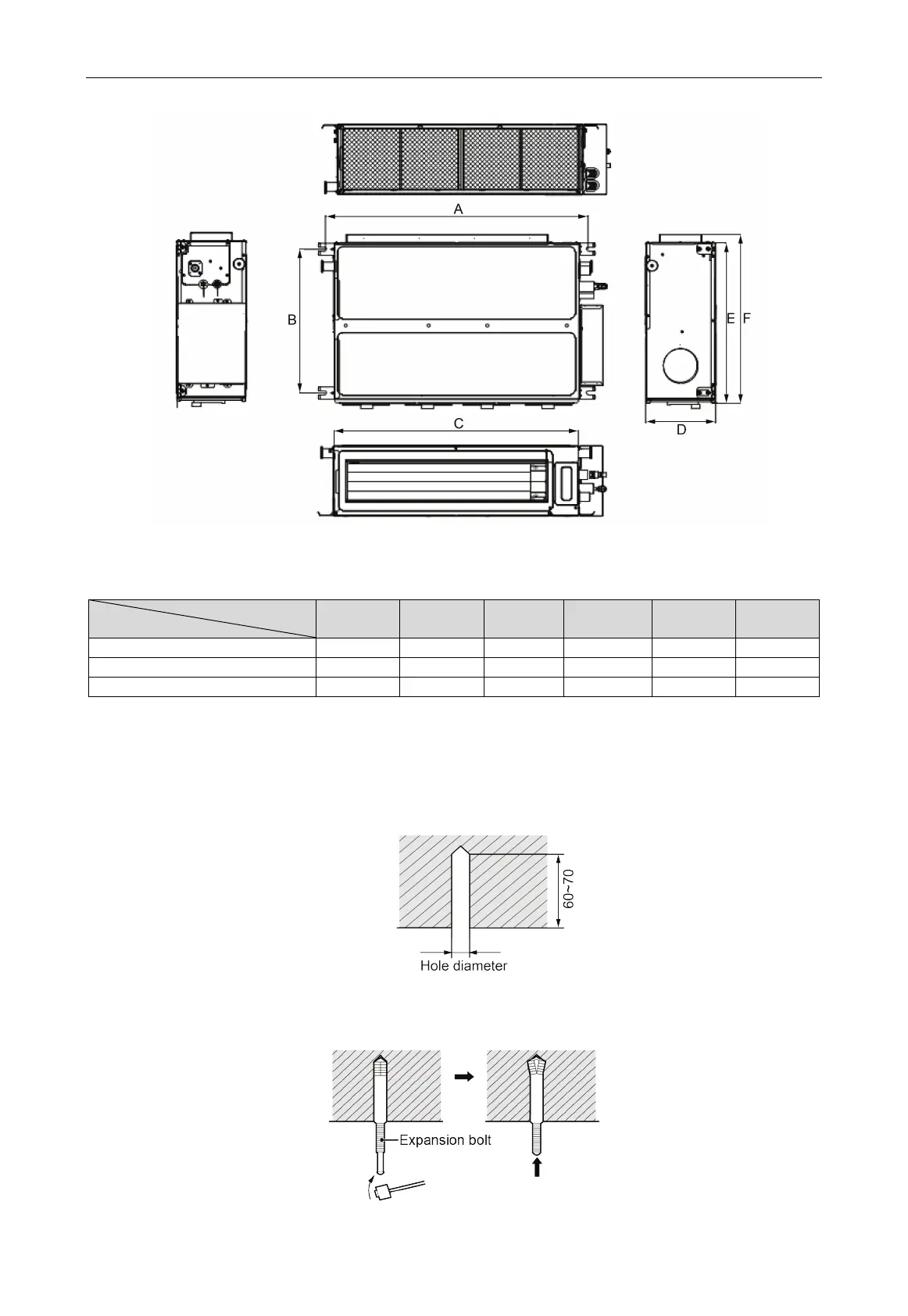

Below are the outline dimension applicable to indoor units of GMV-ND18~71PLS/C-T.
Fig 4.2
Below are dimensions of A, B, C, etc. for different models:
Unit: mm
Item
Model
A B C D E F
GMV-ND18~36PLS/C-T
760
415
710
200
462
486
GMV-ND40~63PLS/C-T
1060
415
1010
200
462
486
GMV-ND71PLS/C-T
1360
415
1310
200
462
486
4.1.2 Punching of Bolt Spots and Bolt Installation
Punch holes on the installation area according to the 4 spots on the paper pattern; the punching
diameter may refer to the diameter of expansion bolt, about 60mm to 70mm depth, as shown in Fig
4.3
Unit: mm
Fig 4.3
Insert the expansion bolt M10 into the hole and then drive the iron nail into the bolt, as shown in
Fig 4.4.
Fig 4.4
