Connection of Indoor and Outdoor Unit

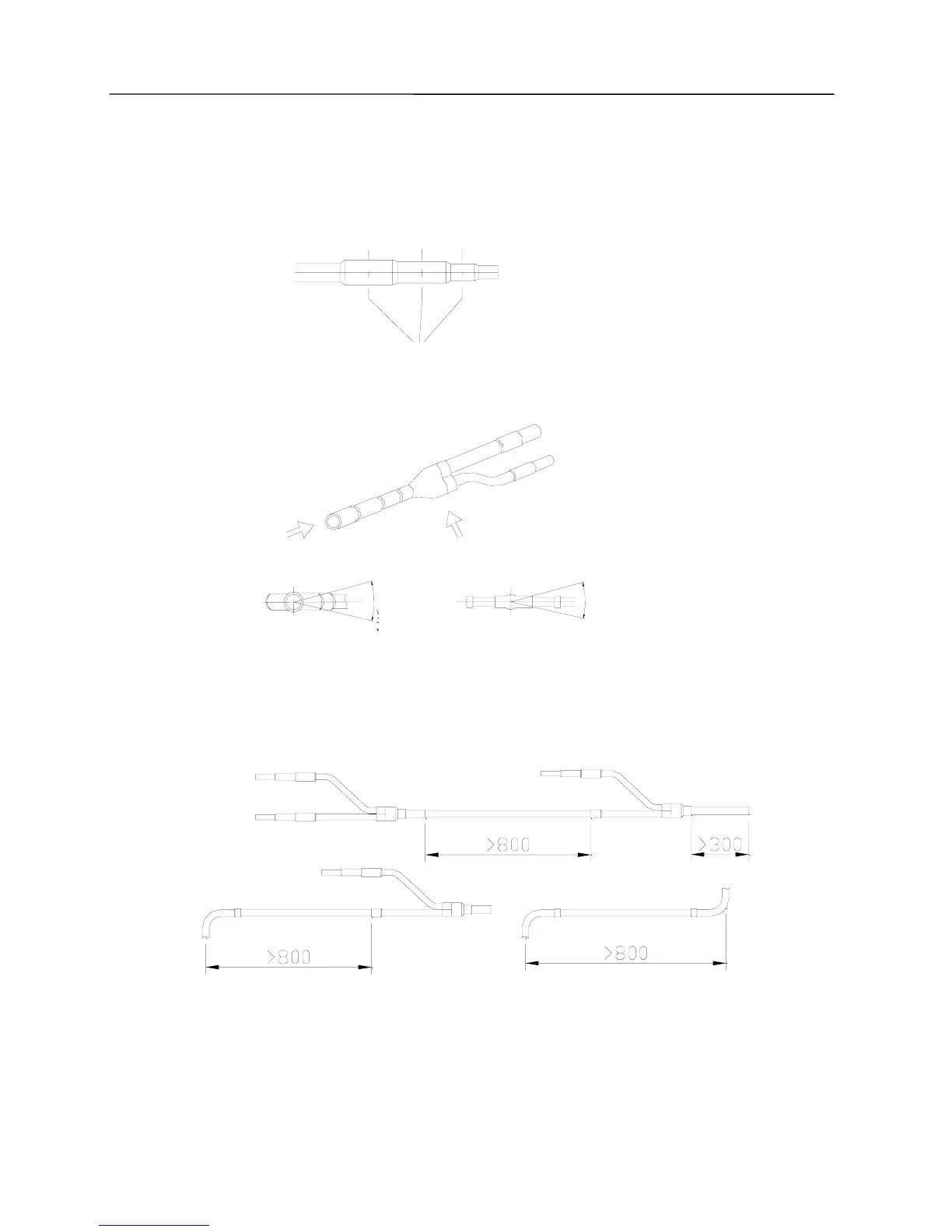

☆ Y-type branch pipe is equipped with auxiliary tubes to adjust the diameter of different pipes. If the
dimension of the pipe selected for site use is different from the dimension of branch pipe joint, use the
pipe cutter to cut from the middle of the pipe with different dimensions, and deburr it as well. Please see
below.
从中间切开
Y☆ -type branch pipe must be installed so that the manifold is in vertical or horizontal direction.
A向示图
A
B向示图
B
±
3
0
°
以
内
±
3
0
°
以
内
☆ A straight pipe 300mm at least shall be provided on inlet side of branch pipe. Space between branch
pipes must be kept at 800mm or more. Space between two bending points shall be kept at 800mm or
more. Space between branch pipe and bending point shall also be kept at 800mm or more.
☆ On air pipe side, heat preservation materials which are able to endure 120 or a higher temperature ℃
shall be used for heat preservation of branch pipe. Do not use the foam on branch pipe as the material
for heat preservation. To prevent liquid pipe from leaking, it is required to connect the two types of heat
preservation materials end to end, i.e. the foam material on branch pipe and the heat preservation
material used on site. After that, wrap up the joints between the two types of materials.
A View
B View
Cut from Middle
