DC Inverter Multi
VRF Service Manual
219

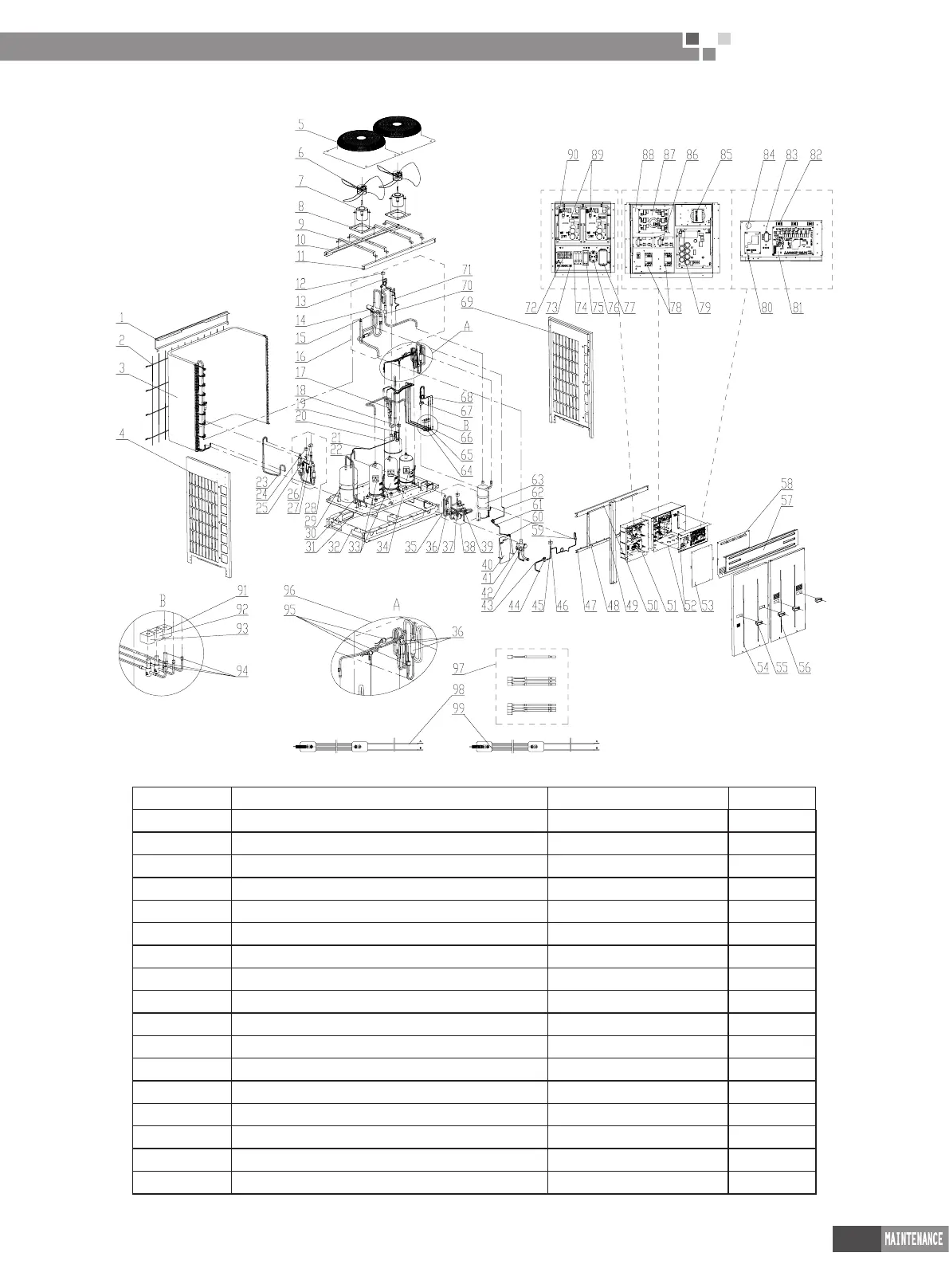

● Exploded View of GMV-Pdm335W/NaB-M exploded views.
● Parts List of GMV-Pdm335W/NaB-M for CN851W1020 .
No. Name Code Qty
1 Rear Cover Plate 01264704P 1
2 Rear Grill 01574102 1
3 Condenser Assy 0112416501 1
4 Left Side Plate Sub-Assy 01313256P 1
5 Streamlined Dome 26904112 2
6 Centrifugal Fan 10358202 2
7 Fan Motor 15704105 2
8 Motor Mounting Rack Sub-Assy 01324177P 2
9 Motor Mounting Rack 01324179P 4
10 Mounting Rack Sub-Assy3 01324175P 1
11 Mounting Rack Sub-Assy1 01324171P 1
12 Magnet Coil 4304000425 1
13 Electromagnetic Valve 43000054 1
14 4-way Valve 43000339 1
15 Magnet Coil 4300040030 1
16 4-way Valve Sub-Assy 04144164 1
17 Inhalation Tube Sub-Assy 04674168 1
