GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
230
(3) Disconnect all lines of the compressor drive, including: compressor line; communication line
between the master unit and the drive; communication line between the compressor drive and fan drive;
compressor drive output 18 VDC; bridge rectifier output P; bridge rectifier output N; compressor drive
output 540 VDC; reactor‘s wiring terminal; bridge rectifier input AC inlead; compressor drive‘s mains

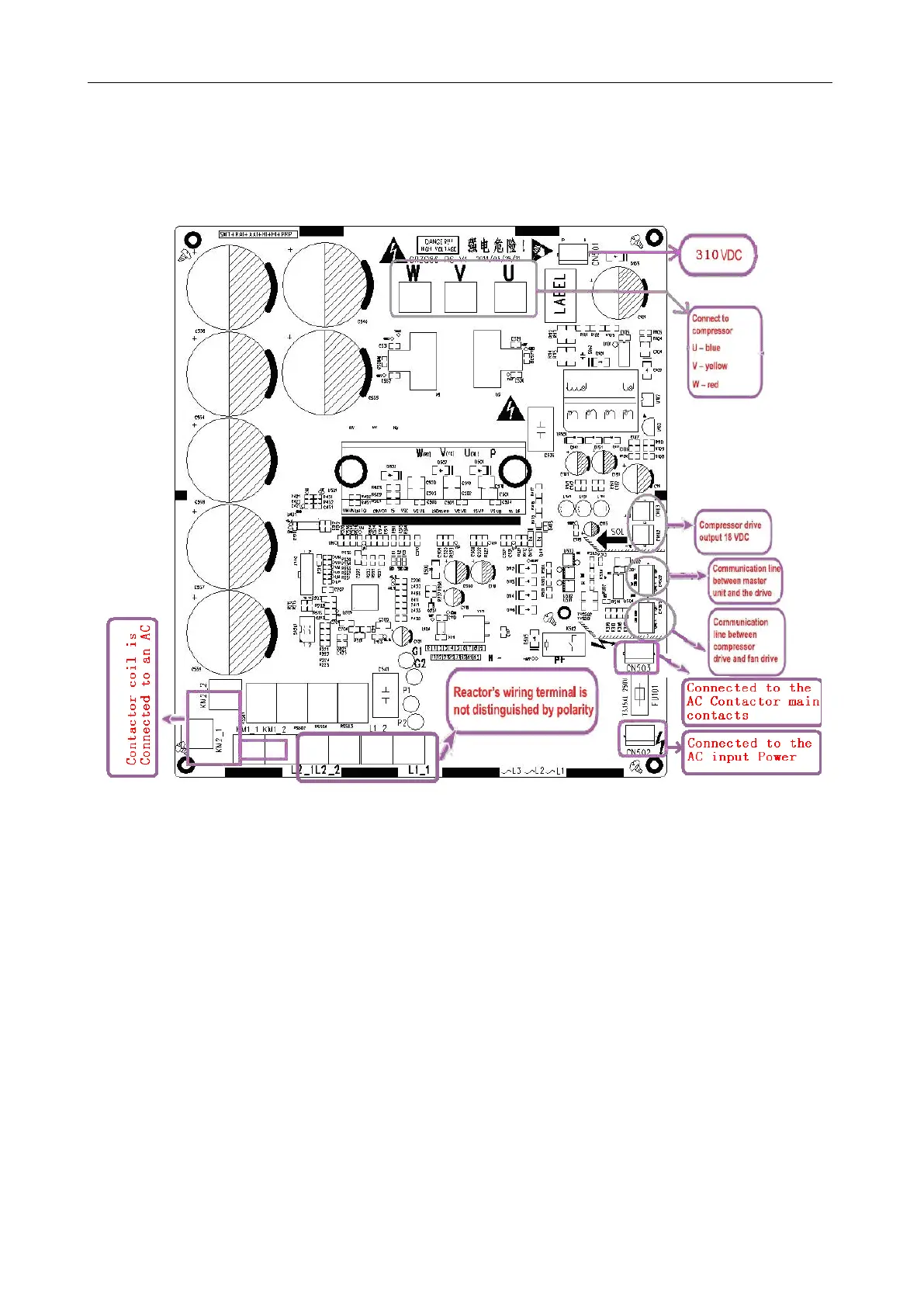

terminal. See the figure below:
(4) Loosen the screws on the compressor drive, as shown in the figure below:
