Installation

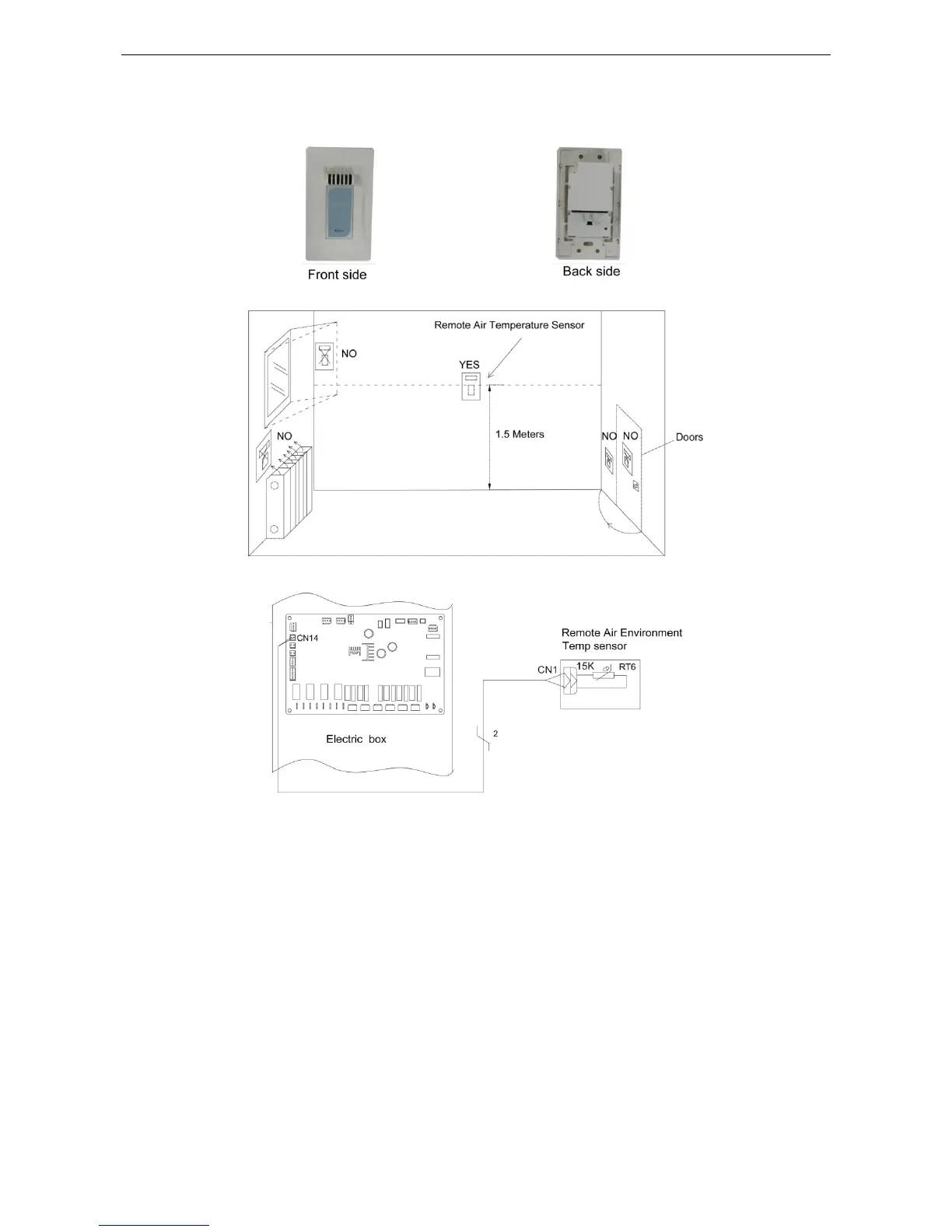

4.16 Wiring of the Remote Air Temperature Sensor
Notes:
①
Distance between the indoor unit and the remote air temperature sensor should be less than
15m due to length of the connection cable of remote air temperature sensor;
②
Height from floor is approximately 1.5m;
③
Remote air temperature sensor cannot be located where the area may be hidden when door is
open;
④
Remote air temperature sensor cannot be located where external thermal influence may be
applied;
⑤
Remote air temperature sensor should be installed where space heating is mainly applied;
⑥
After the remote air temperature sensor is installed, it should be set to ―With‖ through the wired
controller so as to set the remote air temperature to the control point.
