Installation
4.5 Installation of Monobolc Unit
4.5.1 Installation Clearance
(1) When moving the unit, it is necessary to adopt 2 pieces of long enough rope to hand the unit
from 4 directions. Included angle between the rope when hanging and moving must be 40°
below to prevent center of the unit from moving.
(2) The unit should be installed on concrete base that is 10cm height.

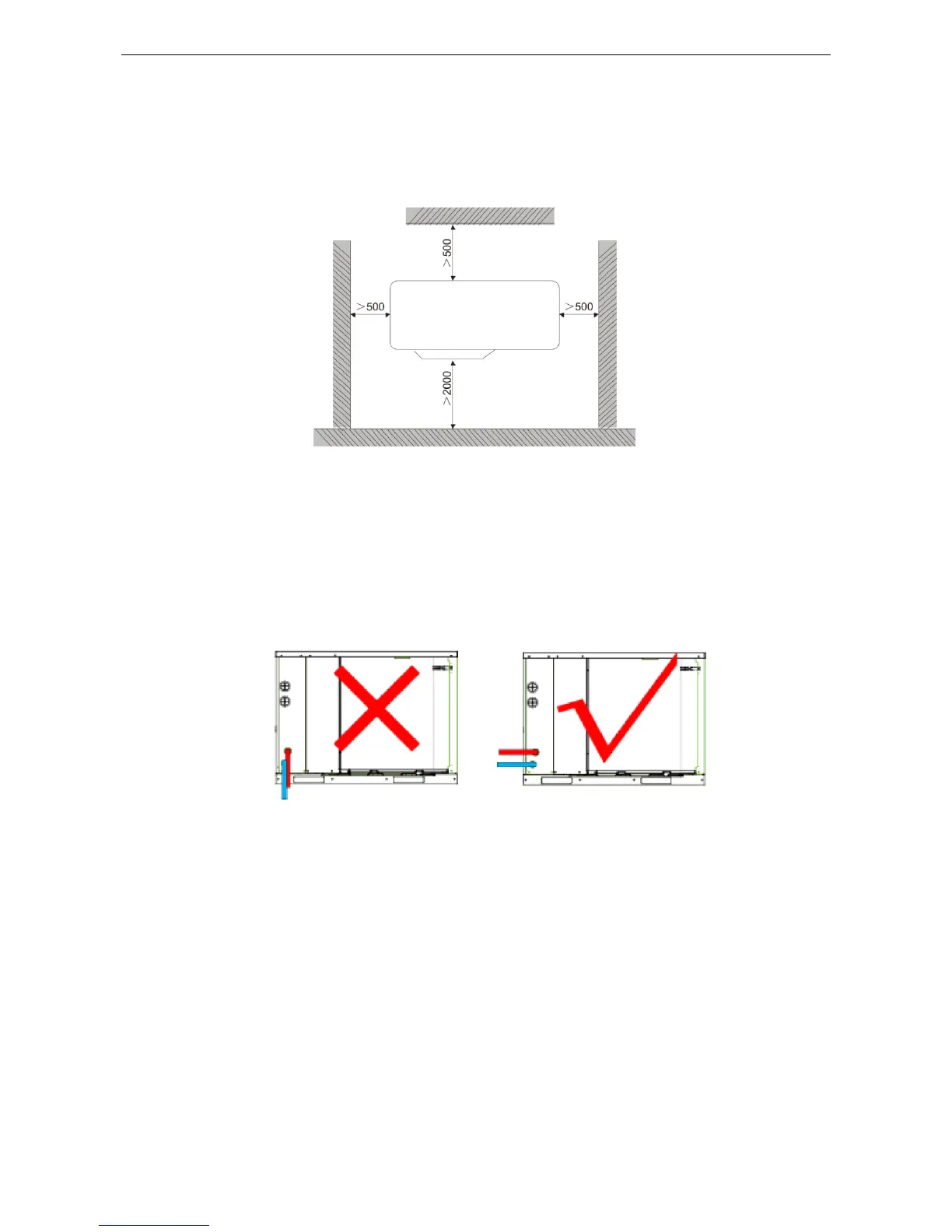

(3) Requirements on installation space dimension of unit‘s bodies are shown in following drawing.
(4) The unit must be lifted by using designated lifting hole. Take care to protect the unit during lift.
To avoid rusting, do not knock the metal parts.
4.5.2 Installation Water pipe connection of monobloc unit
It is recommended to connect water pipe in horizontal direction. Do Not connect water pipe in vertical
direction.
