Service Manual
79
Installation and Maintenance
ProcedureSteps

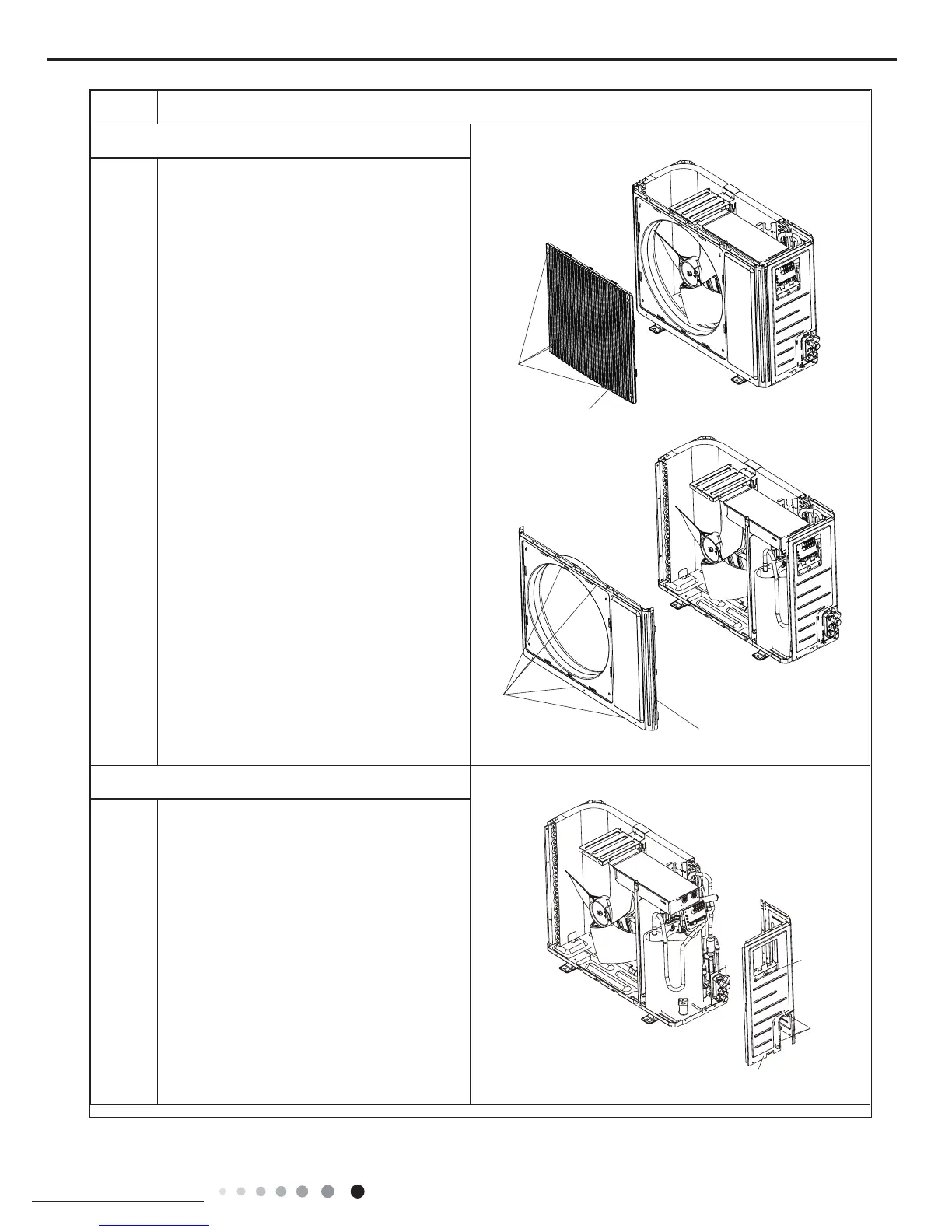

Remove the 4 screws connecting the grille and
outer case, and then remove the panel grille.
Remove the screws connecting the outer case
with motor support, isolation plate and chassis;
lift the outer case upwards; loosen the clasps
of outer case with right side plate and left side
plate, and then remove the outer case.
a
b
2. Remove grille and cabinet
screw
grille
screw
cabinet
Remove the screws connecting the right side
plate with electric box assy, valve support,
chassis and condenser side plate, and then
remove the right side plate.
3. Remove right side plate
right side plate
screw
screw
To Next Page
