Service Manual
80
Installation and Maintenance

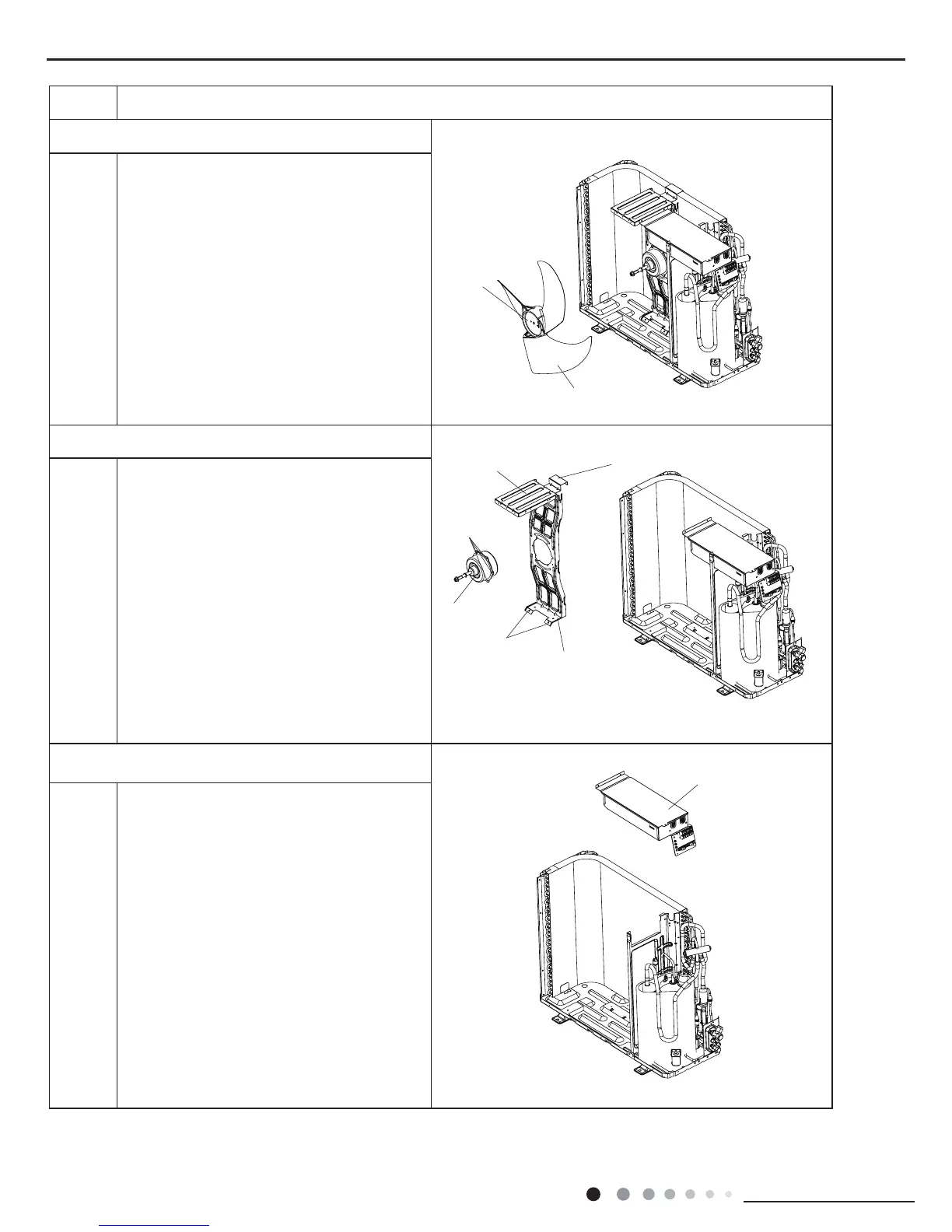

ProcedureSteps
Remove the nut xing axial ow blade and then
remove the blade.
4. Remove axial ow blade
axial ow blade
nut
Remove the 2 screws connecting the motor
support and chassis, and then loosen the
stopper to remove the motor support.
motor support
chassis
stopper
5.Remove motor support sub-assy and motor
Remove the 6 screws xing the motor and then
remove the motor.
screw
screw
motor
6. Remove electric box assy
electric box assy
Remove the screws xing electric box assy ;
pull out each wiring terminal; lift the electric
box assy upwards to remove it.
Note:
When pulling out the wiring terminal, pay
attention to loose the clasp and dont pull it so
hard.
To Next Page
