Gree LSQWF65M/N-M - Heat Pump

AIR COOLED SCROLL CHILLER PRODUCT
7

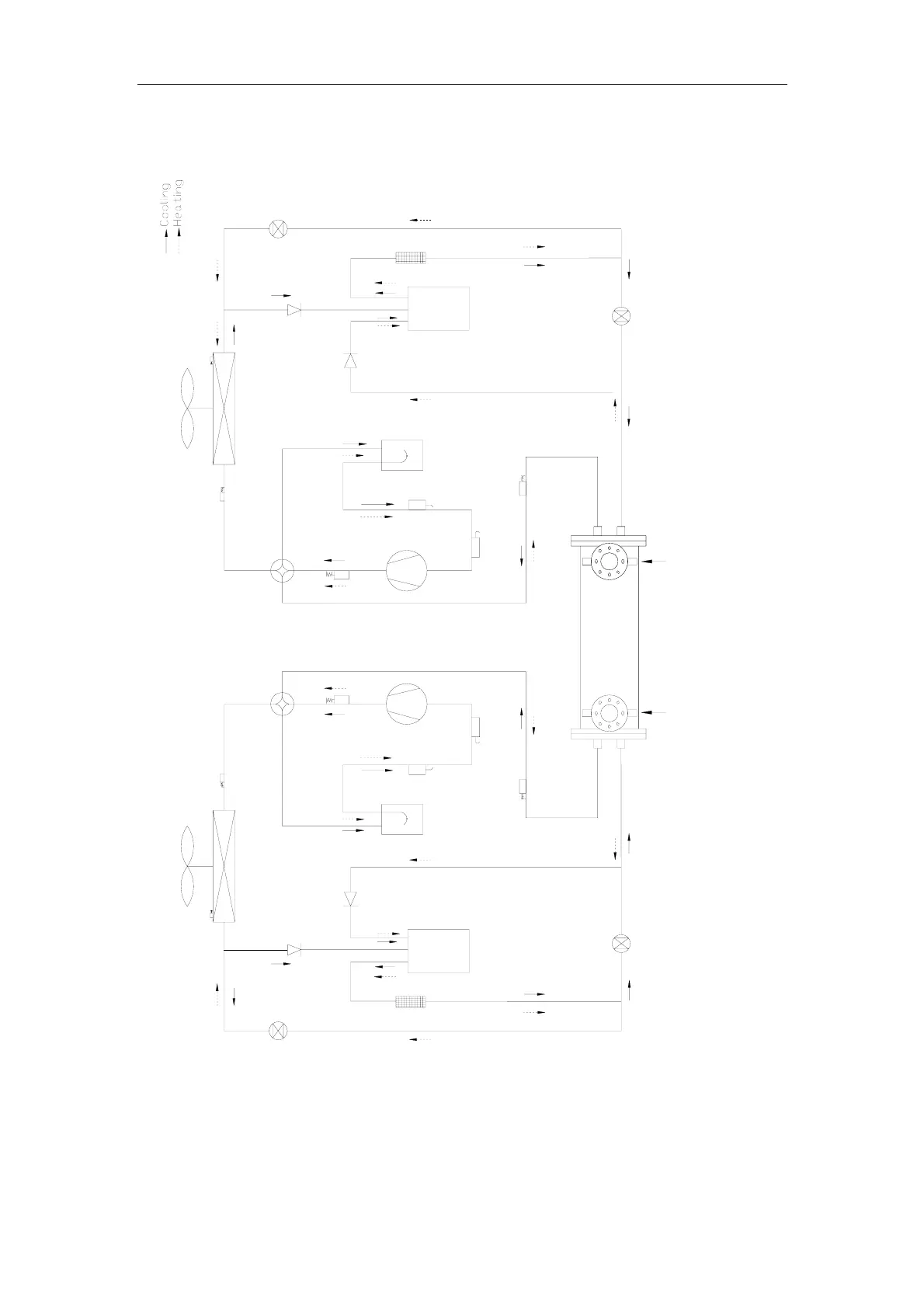

5.2 Heat Pump
4-way valve
compressor
Pressure Switch
Check Valve
Heat Exchanger with Axial Flow Fan
Vapour Liquid
Separator
Check Valve
Liquid Tank
Filter
Thermal Expansion Valve
Temperature Sensor
Heat Exchanger with Shell and Tube
Water Outlet
Water Inlet
Temperature Sensor
Thermal Expansion Valve
Filter
Liquid Tank
Check Valve
Vapour Liquid
Separator
Pressure Switch
compressor
4-way valve
Temperature
Sensor
Check Valve
Heat Exchanger with Axial Flow Fan
Temperature
Sensor
Thermal
Expansion
Valve
Thermal
Expansion
Valve
