Gree LSQWF65M/N-M - DIMENSION DATA; INSTALLATION CLEARANCE DATA

AIR COOLED SCROLL CHILLER INSTALLATION
22

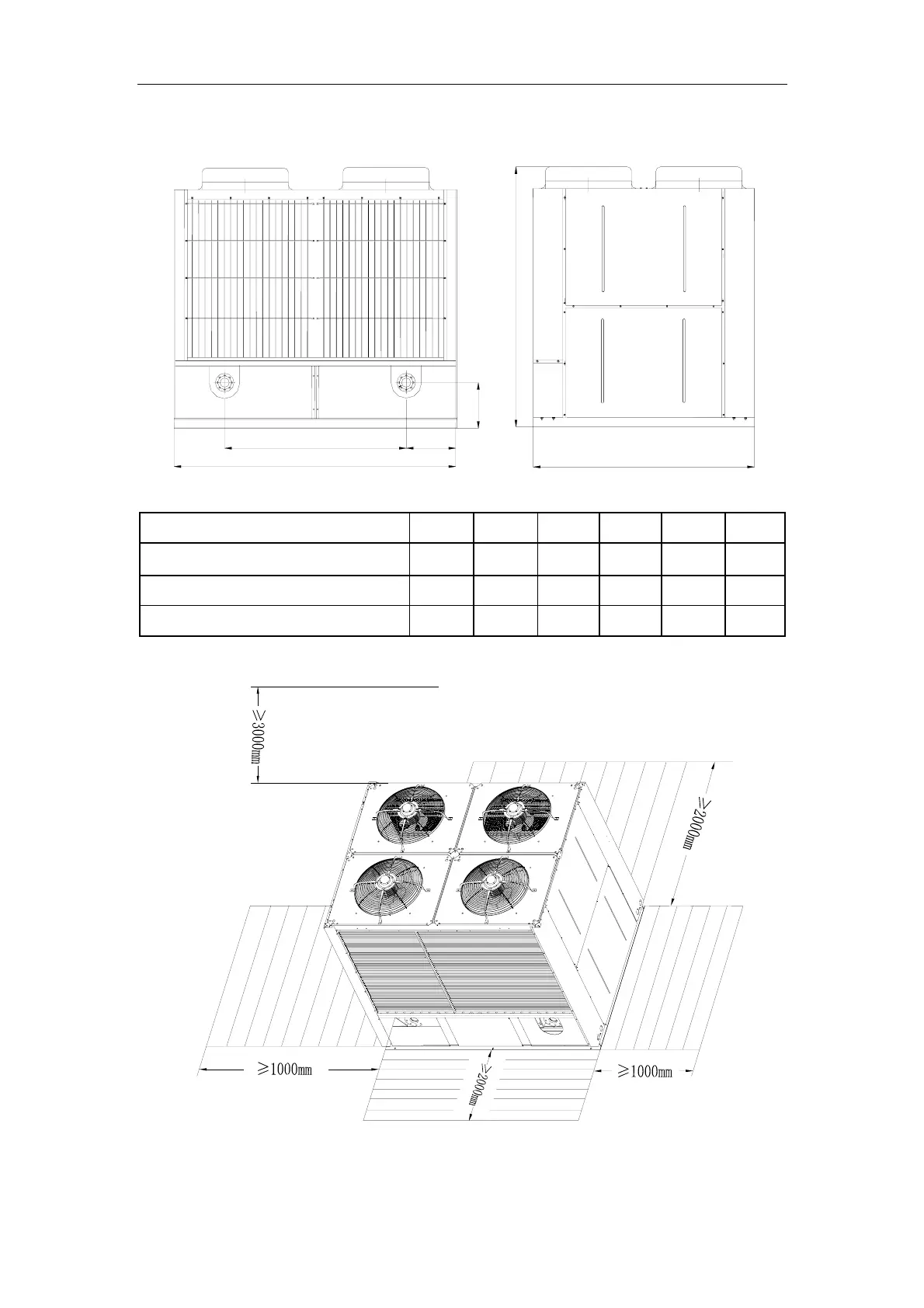

5 DIMENSION DATA
Water Inlet
Water Outlet
A
D E
F
C
B
Unit:mm
Model A B C D E F
LSQW(R)F65M/N-M
2110 1100 2140 1300 400
320
LSQW(R)F80M/N-M
2110 1100 2140 1300 400 320
LSQW(R)F130M/N-M
2410 1900 2240 1560 425 383
6 INSTALLATION CLEARANCE DATA
