Gree LSQWF65M/N-M User Manual

AIR COOLED SCROLL CHILLER CONTROL
15
10
98
7
6
54
3
2
1
Manual Mon
Cool off 1 Modules
Cooling only
00:02
2009-01-01

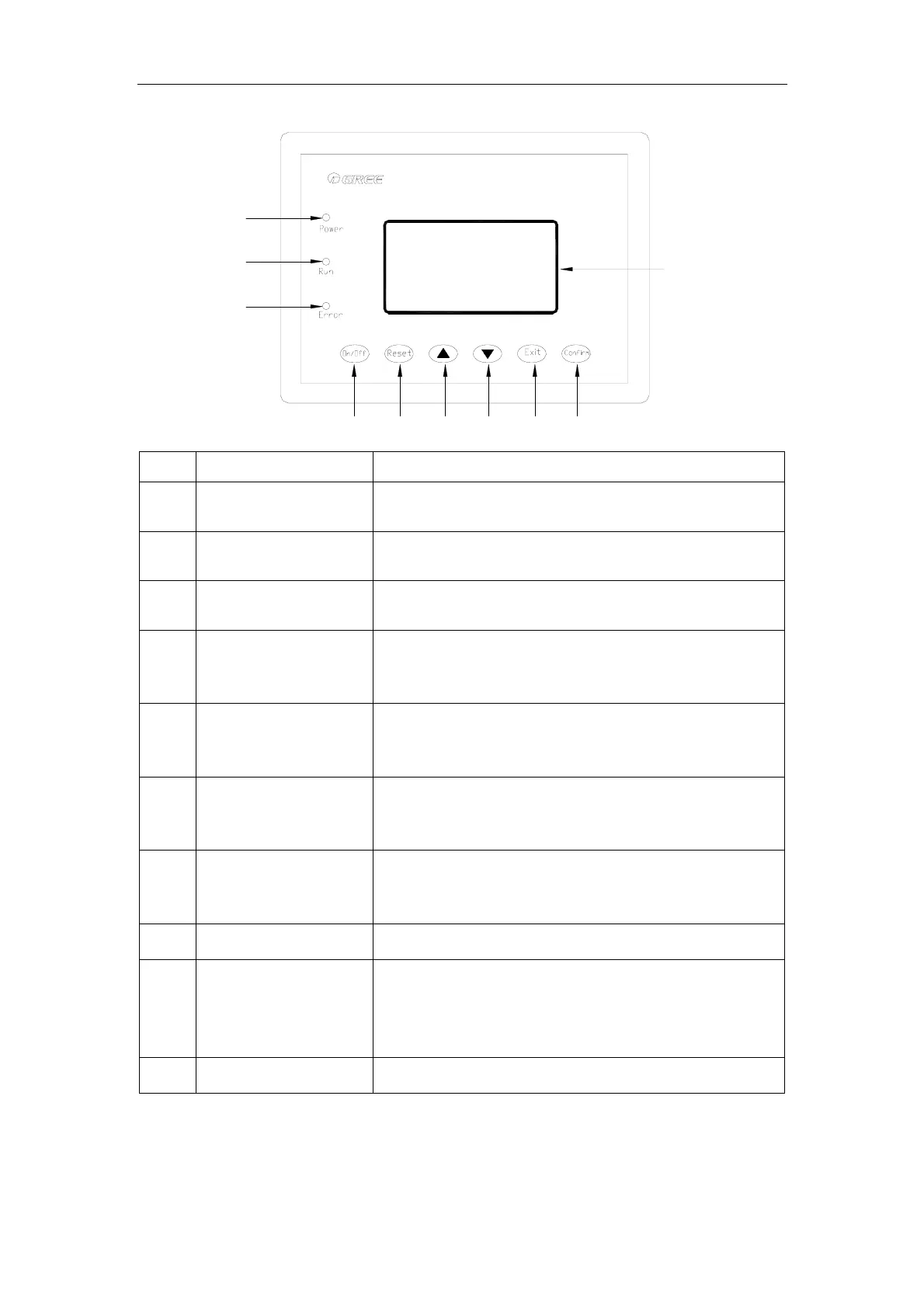

NO. Name Function description
1
Power Indicator
（Green）
If the power of the display board is on, Power Indicator will
be light, or else it is off.
2
Run Indicator
（Green）,
If the display board is started, Run Indicator will be lighted,
or else it won’t.
3
Error Indicator
（Red）,
If the error happens, Error Indicator will be light, or else it
won’t.
4
On/Off Button
Switch on/off the control units. In the standby state, press
this button (for 3 sec) to start the unit, or press it (for 3 sec.)
to stop the unit in the operating state.
5
Reset Button
Pressing this button (for 3sec.), the screen will show
full-screen content and the error show will be eliminated, at
the same time the system will check the error again.
6
▲ Button
When selecting the menu, press this button to move a cursor
upward or left. When modifying the data, press this button
to add the numerical value.
7
▼ Button
When selecting the menu, press this button to move a cursor
downward or right. When modifying the data, press this
button to decrease the numerical value.
8
Exit Button
Press this button to return to the previous menu.
9
Confirm Button
When selecting the menu, press this button to confirm the
selection and go into the next menu; When modifying the
parameters, press this button to confirm the parameter and
move the cursor.
10
LCD
The area for the information display.
