Gree ME20-24/D1(T) User Manual

Intelligent Controller
9
is a module set, can consist 1~4 modules, that is, 1~4 sets of outdoor units) and its
indoor units.
Quantity of units can be connected to Intelligent Controller: one Intelligent
Controller supports one CAN2 network, can connect to 16 sets of systems or 255
sets of indoor units.
Note: L3 in Fig. 6.1 is standard netting twine, L1 and L2 are twisted-pairs.
6.2 Power billing of Gree multi VRF
The controller(ME20-24/D1(T)) provides the function of power billing of multi
VRF. Please refer to Chapter 8 for concrete description and debugging method for
power billing function.
7 Product Installation
7.1 Product Size and Spatial Size for Electric Control Cabinet
Installation
7.1.1 Product Size
Unit:mm

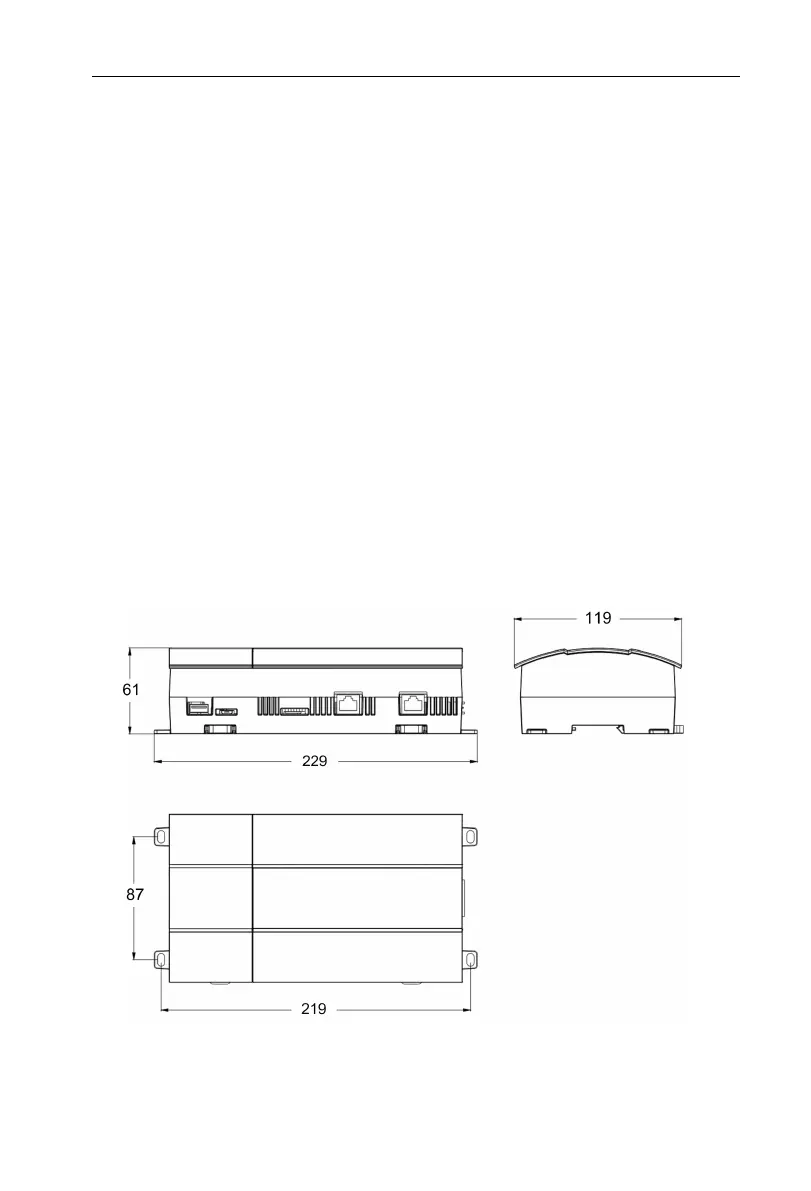

Fig. 7.1 Controller product size chart

Gree ME20-24/D1(T) Specifications

General

Brand	Gree
Model	ME20-24/D1(T)
Category	Controller
Language	English
