（2） Communication line connection between Controller and AC units:
When Controller is connected to main control unit of ODU, ODU with the
address dial-up of 0 must be connected.
CAN
G1 G
2
D1D2 G1G2
1 2
ON ON
Main control
Unit of ODU
……
Subordinate
Unit of ODU

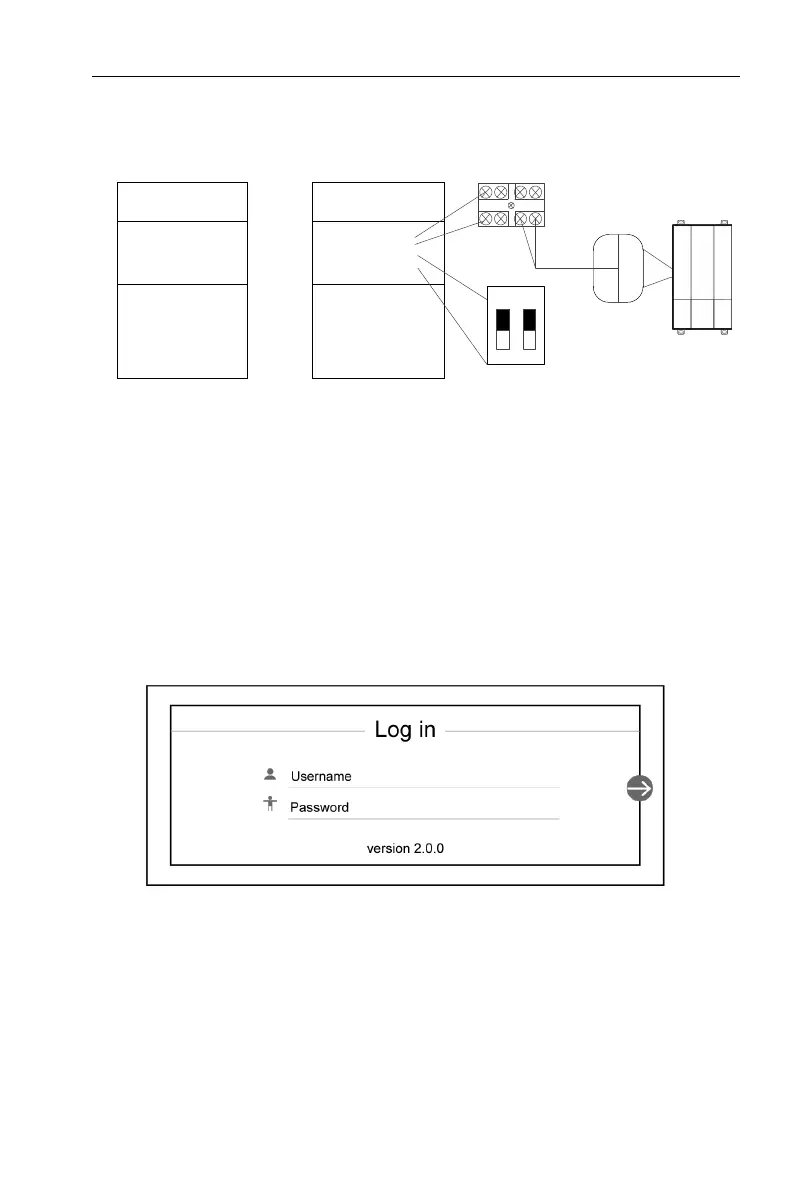

Fig. 7.7 Communication connection between Controller and unit
（3） Controller configuration:
Before setting the parameters of Controller, please set the IP address of PC as
the same with the IP address in the same network segment of Controller, as refer to
appendix A; and then open the browser (IE10 and above version, Firefox or Google),
input the default IP address of Controller: http://192.168.1.150, default user name:
config, password: config; after selecting the language, it will enter the login interface,
as is shown in the following fig.
Fig. 7.8 Log on interface
