Removal operation of gas liquid separator
Remark: Before removing the gas liquid separator, please make sure that there’s no refrigerant inside the pipeline of system and
disconnect the power

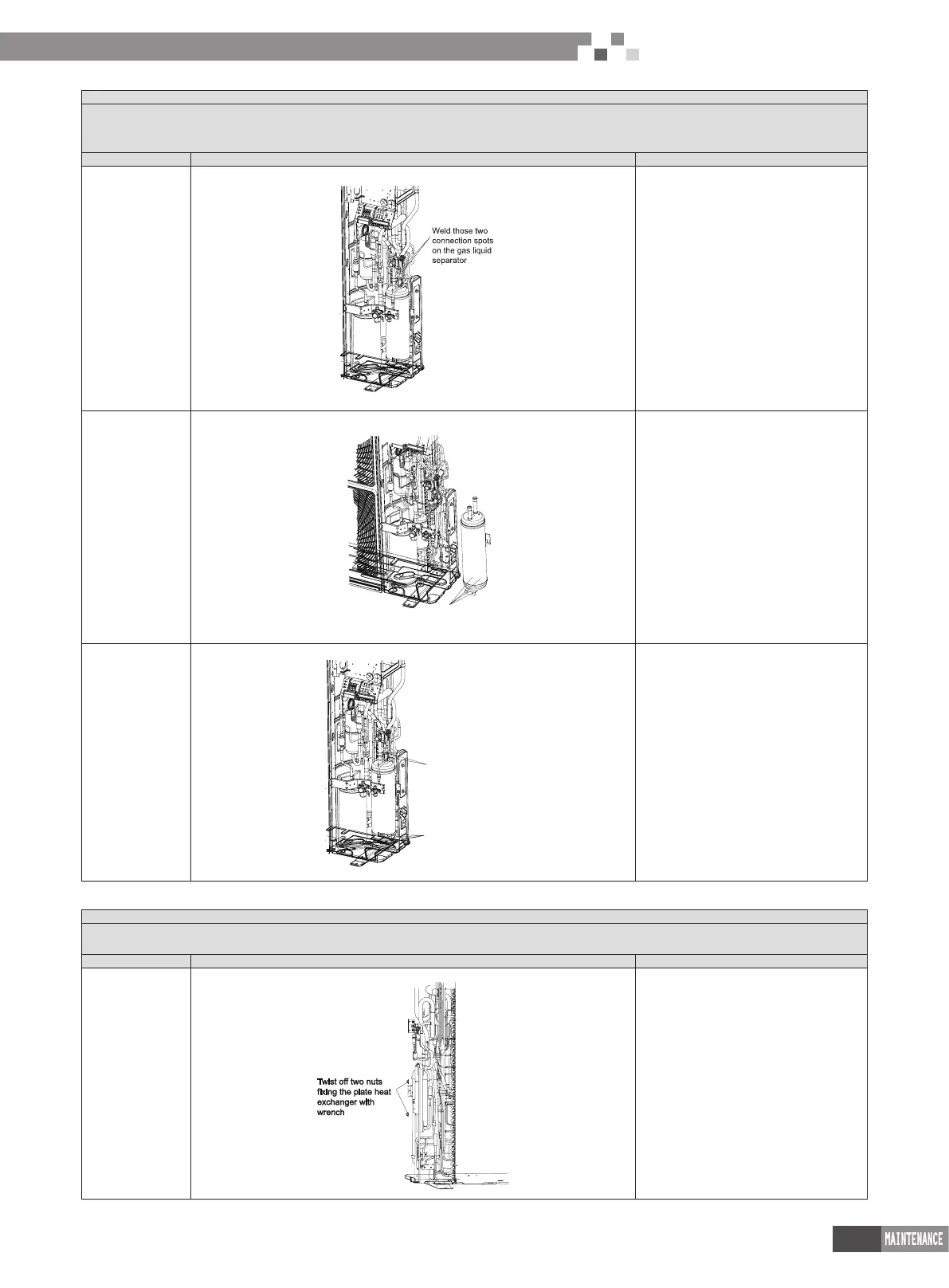

Process Photo Operation Instruction
1. Disconnect
inlet pipe and
exit pipe of gas
liquid separator
● Weld those two connection spots on
the gas liquid separator and then pull
out the connection pipe
Note: During welding process, do not
let ame burn out other parts
2. Replace gas
liquid separator
Loose 4 screws
with screwdriver
● Loose 4 screws with screwdriver
● Replace gas lliquid separator
3. Replace gas
liquid separator
Weld the pipe
connected with gas
liquid separator
Fix the screws at the
base of gas liquid
separator well again
● Weld the pipe connected with gas
liquid separator
● Fix the screws at the base of gas
liquid separator well again
Note: During welding process, do not
let ame burn out other parts
Removal operation for plate heat exchanger
Remark: Before removing the plate heat exchanger, please make sure that there’s no refrigerant inside the pipeline of system and
disconnect the power
Process Photo Operation Instruction
1. Twist off
two nuts xing
the plate heat
exchanger with
wrench
●Twist off two nuts xing the plate
heat exchanger with wrench
